HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
(8411- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65313 - PANEL, FLOOR FRONT CORNER, RH | ||||
| 65313-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65313-90K04 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
1 | ||
| 65314 - PANEL, FLOOR FRONT CORNER, LH | ||||
| 65314-90K01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
1 | ||
| 65314-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65314-90K01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
1 | ||
| 65315 - PANEL, FLOOR REAR CORNER, RH | ||||
| 65037-90K00 |
BJ75,FJ75,HJ75..PIC W/*FST |
1 | ||
| 65037-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/*FST |
1 | ||
| 65315-95407 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65037-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/*FST,HEAVY DUTY PACKAGE |
1 | ||
| 65315-90K04 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
1 | ||
| 65316 - PANEL, FLOOR REAR CORNER, LH | ||||
| 65316-90K01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
1 | ||
| 65316-95407 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH | ||||
| 65501-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65501-90K04 |
BJ75,FJ75,HJ75..PIC W/TARPORIN |
1 | ||
| 65501-90K03 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/FULL SUB TANK |
1 | ||
| 65501-90K04 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/TARPORIN |
1 | ||
| 65501-90K05 |
BJ75,FJ75,HJ75..PIC W/TARPORIN & FULL SUB TANK |
1 | ||
| 65501-90K03 |
BJ75,FJ75,HJ75..PIC W/FULL SUB TANK |
1 | ||
| 65501-90K05 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/TARPORIN & FULL SUB TANK |
1 | ||
| 65577 - RETAINER, TAIL GATE LATCH FEMALE | ||||
| 65577-95012 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH | ||||
| 65601-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65601-90K02 |
BJ75,FJ75,HJ75..PIC W/TARPORIN |
1 | ||
| 65601-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/TARPORIN |
1 | ||
| 65651 - PANEL, WHEEL HOUSE | ||||
| 65651-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) HEAVY DUTY PACKAGE |
2 | ||
| 65651-95014 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 66153 - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-95012 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66153-95012 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| Common parts | ||||
| 90158-80004 | ||||
| 90179-08123 | ||||
| 90179-08148 | ||||
| 90540-09060 | ||||
| 91651-40820 | ||||
| 93270-18016 | ||||
| 93270-18020 | ||||
| 93270-18030 | ||||
| 94614-10800 | ||||
| Linked diagrams | ||||
| 6552 | ||||

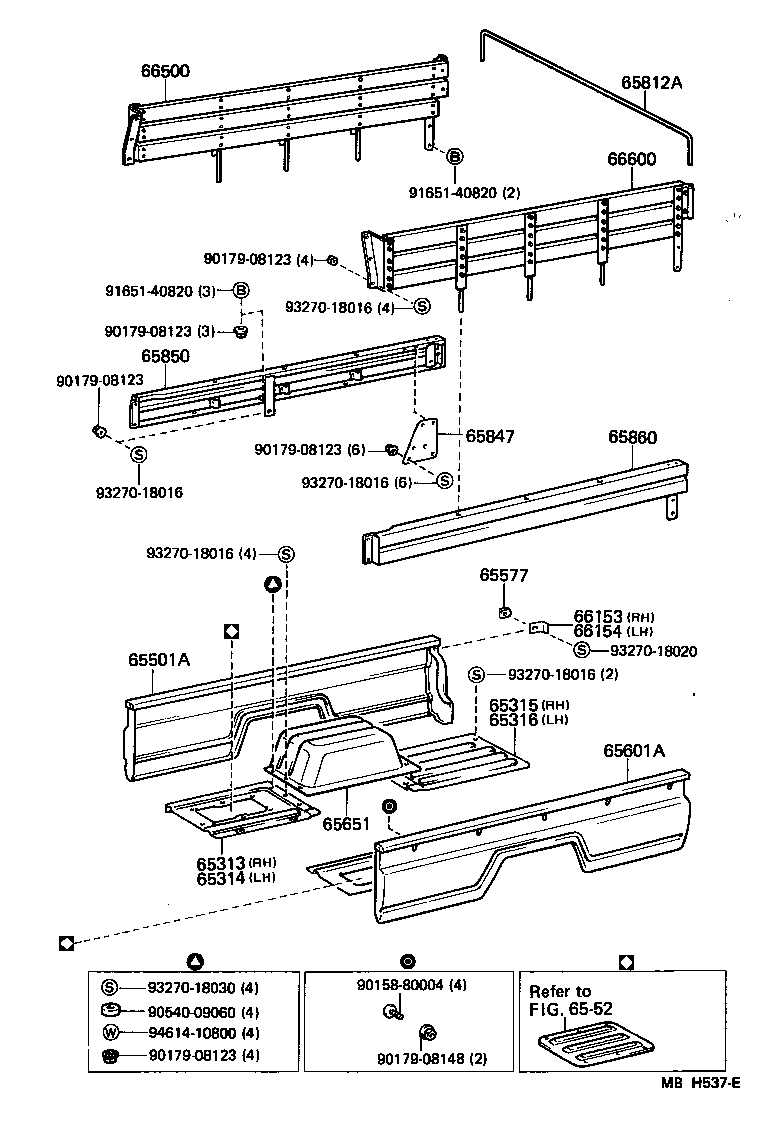

ILLUST NO. 1 OF 2(9001-0701)FJ75,FZJ75,79,HJ75,HZJ75,79,PZJ75..PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90158-80004 | ||||
| 90179-08123 | ||||
| 90179-08148 | ||||
| 90540-09060 | ||||
| 91651-40820 | ||||
| 93260-18016 | ||||
| 93260-18020 | ||||
| 93260-18030 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 6552 | ||||
