HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

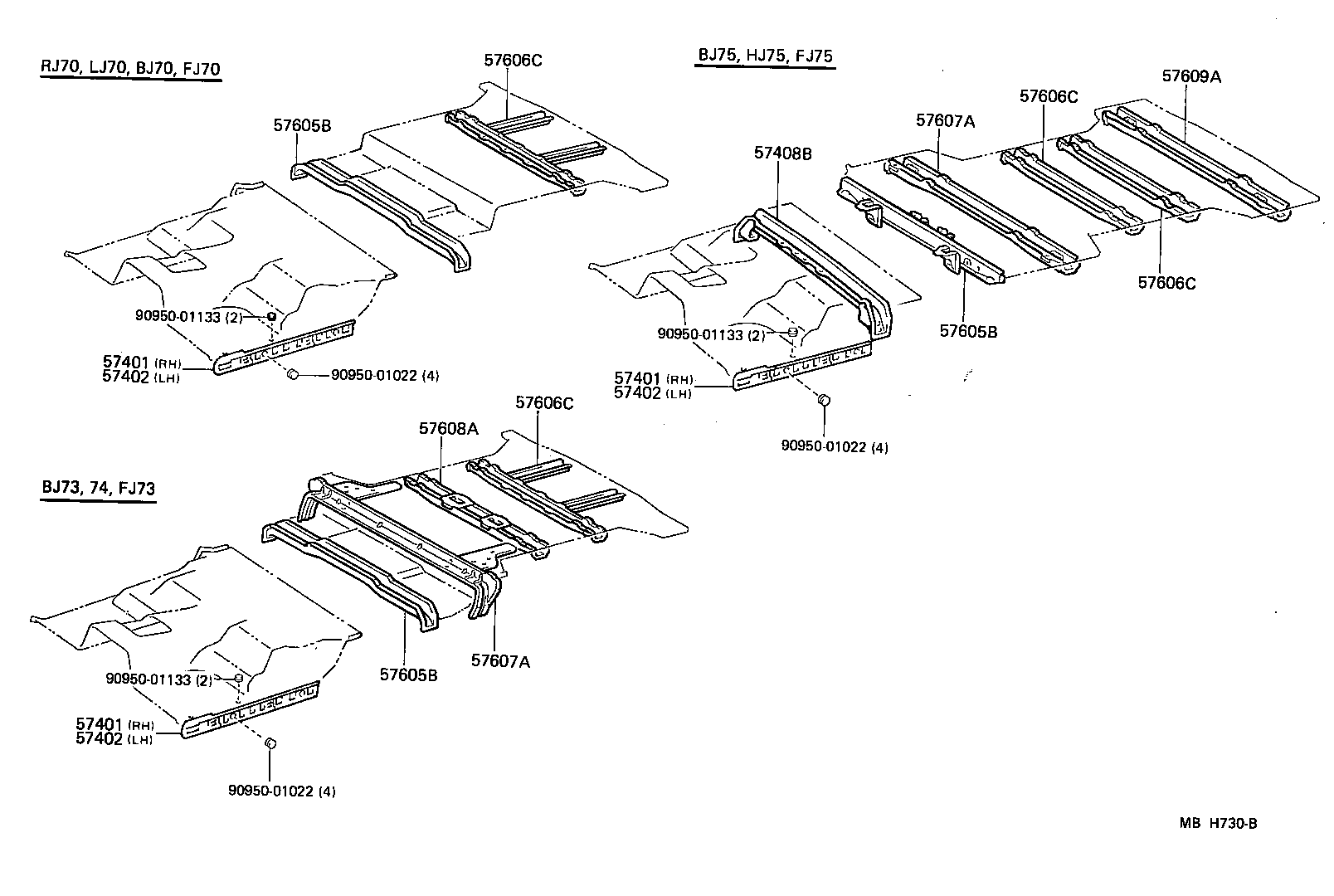

Click highlighted areas on diagram

diagram 57401 57401 57401 57402 57402 57402 57408B 57605B 57605B 57605B 57606C 57606C 57606C 57606C 57607A 57607A 57608A 57609A 9095001022 9095001022 9095001022 9095001133 9095001133 9095001133
Part # Description Qty Price
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57402-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-90K03

BJ75,FJ75,HJ75

 1
57408-90K02

BJ75,FJ75,HJ75..PIC

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-90K01

BJ70,73,FJ7#,HJ75..ARL

W/FR BENCH SEAT

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-90K01

BJ70,73,FJ7#,HJ75..ARL

W/FR BENCH SEAT

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-90K01

BJ70,73,FJ7#,HJ75..ARL

W/FR BENCH SEAT

 1
57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-90K01

BJ75,FJ75,HJ75

 1
57609-90K03

BJ75,FJ75,HJ75

 1
Common parts
90950-01022
90950-01133
