HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )BJ75,FJ75,HJ75

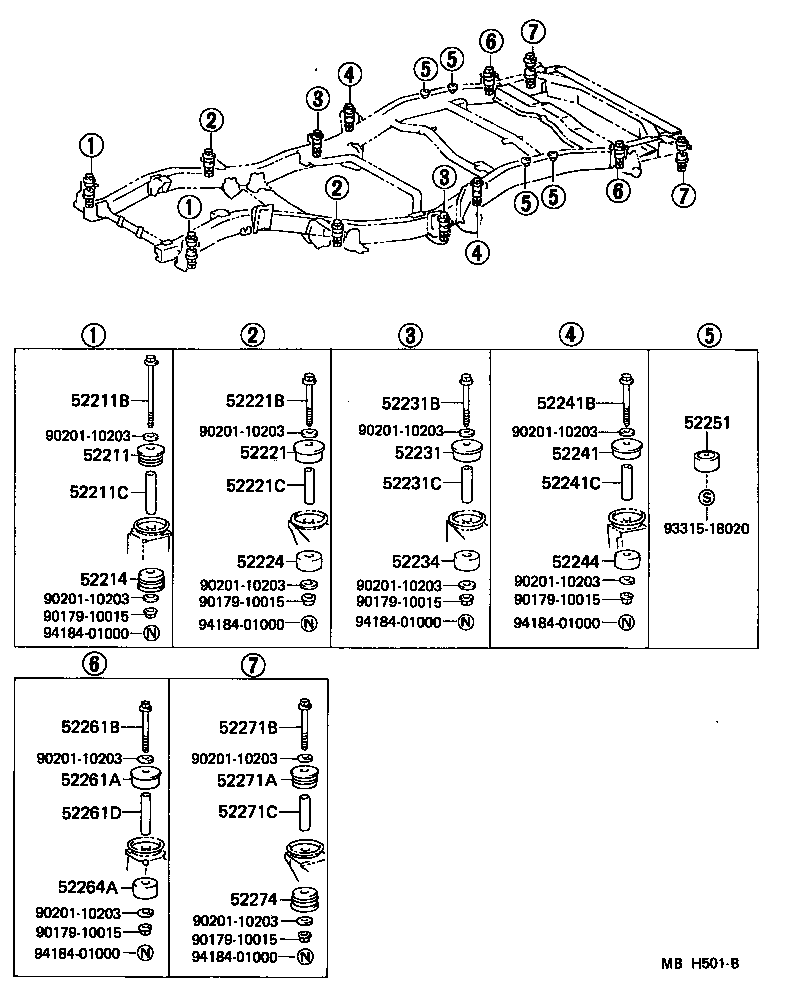

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 52201-25020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90105-10103 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90440-17021 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52214 - CUSHION, BODY MOUNT, NO.1 LOWER | ||||
| 52202-25020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52221 - CUSHION, BODY MOUNT, NO.2 UPPER | ||||
| 52203-60030 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION) | ||||
| 90105-10039 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION) | ||||
| 90560-12233 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52224 - CUSHION, BODY MOUNT, NO.2 LOWER | ||||
| 52204-60030 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 52231 - CUSHION, BODY MOUNT, NO.3 UPPER | ||||
| 52203-60020 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION) | ||||
| 90105-10039 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION) | ||||
| 90560-12233 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 52234 - CUSHION, BODY MOUNT, NO.3 LOWER | ||||
| 52204-60020 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90201-10203 | ||||
| 93315-18020 | ||||
| 94184-01000 | ||||
