HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8510) ; (8510- )BJ7#,FJ7#,HJ75

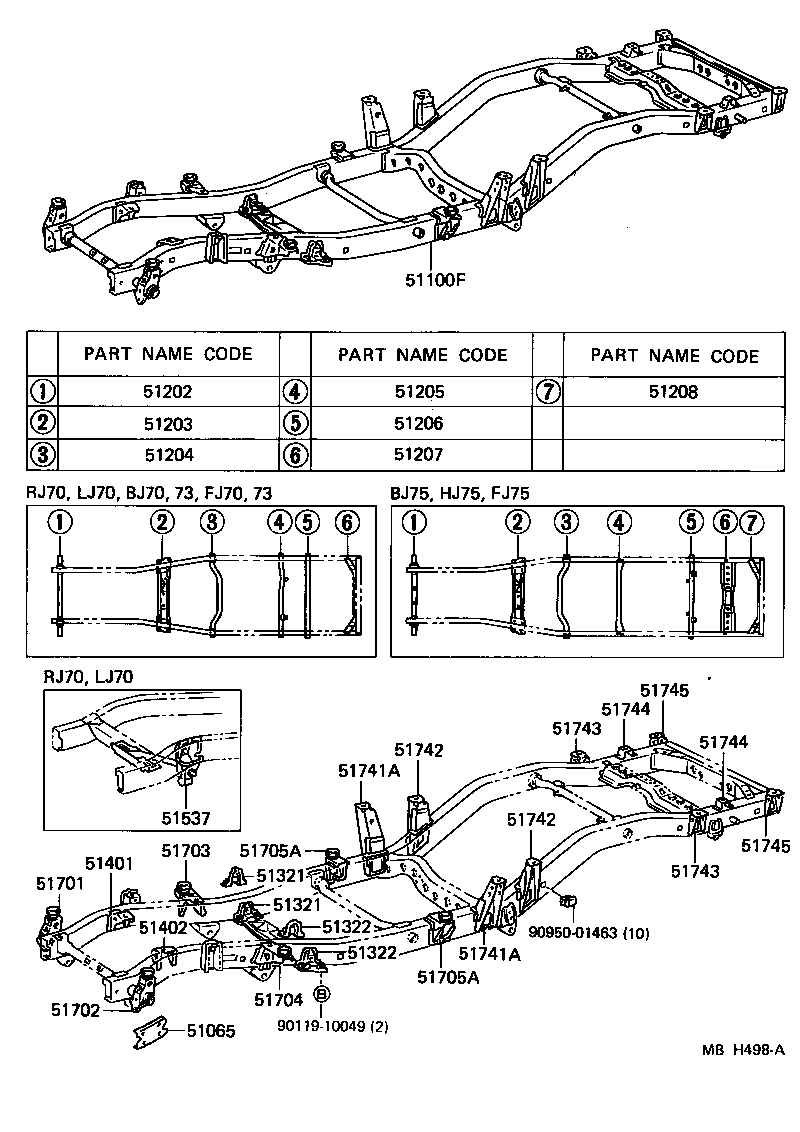

Click highlighted areas on diagram

diagram 51065 51100F 51202 51203 51204 51205 51206 51207 51208 51321 51321 51322 51322 51401 51402 51537 51701 51702 51703 51704 51705A 51705A 51741A 51741A 51742 51742 51743 51743 51744 51744 51745 51745 9011910049 9095001463
Part # Description Qty Price
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-60050

BJ75,FJ75,HJ75..RHD

 1
51100F - FRAME SUB-ASSY
51002-60340

HJ75..RHD..PIC

W/FUEL SUB TANK

 1
51002-60281

HJ75..RHD..PIC

 1
51002-60280

HJ75..RHD..PIC

 1
51002-60341

HJ75..RHD..PIC

W/FUEL SUB TANK

 1
51002-60281

HJ75..RHD..PIC..(ARL,GEN)

 1
51002-60341

HJ75..RHD..PIC..(ARL,GEN)

W/FUEL SUB TANK

 1
51002-60342

HJ75..RHD..PIC..(ARL,GEN)

W/FUEL SUB TANK

 1
51002-60282

HJ75..RHD..PIC..(ARL,GEN)

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-60100

BJ7#,FJ7#,HJ75

 1
51201-60101

BJ7#,FJ7#,HJ75

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60110

BJ7#,FJ7#,HJ75..MTM

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-60120

BJ75,FJ75,HJ75

 1
51203-60121

BJ75,FJ75,HJ75

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-60060

BJ75,FJ75,HJ75

 1
51241-60061

BJ75,FJ75,HJ75

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-60050

BJ75,FJ75,HJ75

W/FUEL SUB TANK

 1
51205-60050

BJ75,FJ75,HJ75..ARL,GEN,ME

W/FUEL SUB TANK

 1
51205-60030

BJ75,FJ75,HJ75

 1
51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-60010

BJ75,FJ75,HJ75

 1
77135-60020

BJ75,FJ75,HJ75

W/FUEL SUB TANK

 1
77135-60020

BJ75,FJ75,HJ75..ARL,GEN,ME

W/FUEL SUB TANK

 1
51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51209-60080

BJ75,FJ75,HJ75..PIC

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60030

BJ7#,FJ7#,HJ75

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60030

BJ7#,FJ7#,HJ75

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60030

BJ7#,FJ7#,HJ75

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60030

BJ7#,FJ7#,HJ75

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60090

HJ75

 1
51421-60091

HJ75..ARL,GEN

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60090

HJ75

 1
51422-60091

HJ75..ARL,GEN

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

BJ7#,FJ7#,HJ75

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-60070

BJ7#,FJ7#,HJ75

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60030

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60091

BJ75,FJ75,HJ75

 2
51705-60090

BJ75,FJ75,HJ75

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60091

BJ75,FJ75,HJ75

 2
51705-60090

BJ75,FJ75,HJ75

 2
51741A - BRACKET, BODY MOUNTING
51741-60060

BJ75,FJ75,HJ75..PIC

 2
51741A - BRACKET, BODY MOUNTING
51741-60060

BJ75,FJ75,HJ75..PIC

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51743-60020

BJ75,FJ75,HJ75..PIC

LH

 1
51742-60050

BJ75,FJ75,HJ75..PIC

RH

 1
51742 - BRACKET, BODY MOUNTING, NO.2
51743-60020

BJ75,FJ75,HJ75..PIC

LH

 1
51742-60050

BJ75,FJ75,HJ75..PIC

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51763-60010

BJ75,FJ75,HJ75..PIC

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51763-60010

BJ75,FJ75,HJ75..PIC

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51744-60020

BJ75,FJ75,HJ75..PIC

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51744-60020

BJ75,FJ75,HJ75..PIC

 2
51745 - BRACKET, BODY MOUNTING, NO.5
51763-60010

BJ75,FJ75,HJ75..PIC

 2
51745 - BRACKET, BODY MOUNTING, NO.5
51763-60010

BJ75,FJ75,HJ75..PIC

 2
Common parts
90119-10049
90950-01463
