HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

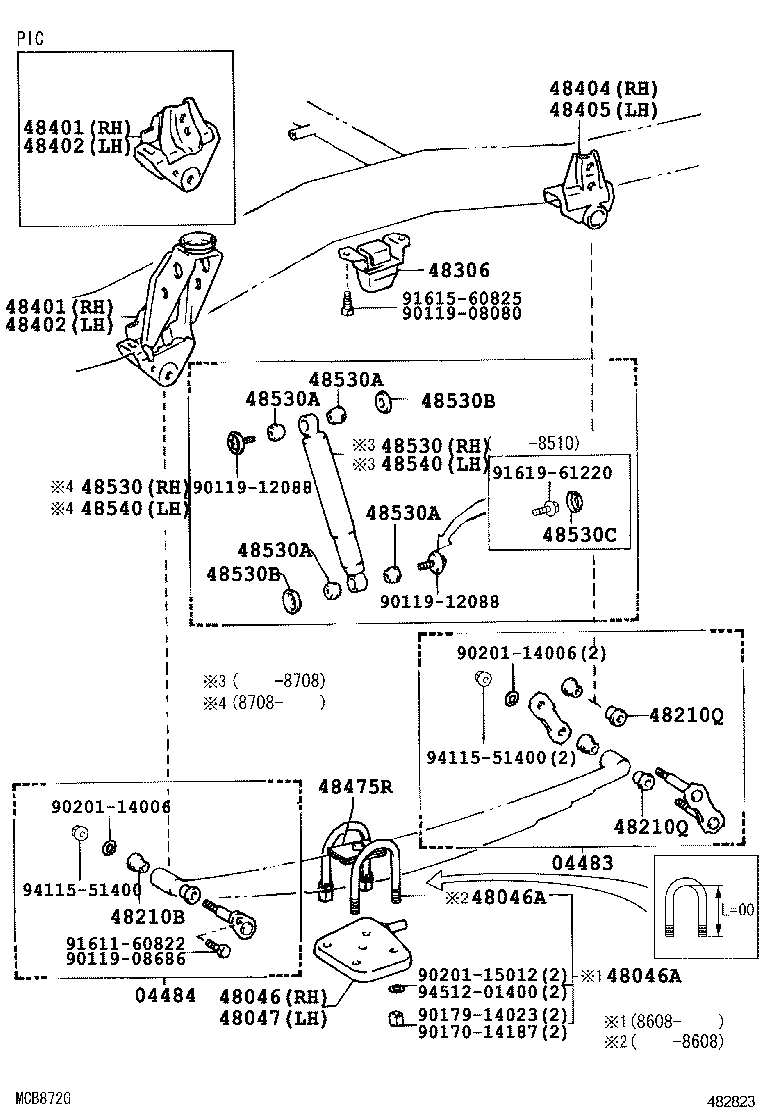

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60070 |
BJ75,FJ75,HJ75 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60020 |
BJ75,FJ75,HJ75 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60070 |
BJ75,FJ75,HJ75 |
1 | ||
| 48046-60090 |
BJ75,FJ75,HJ75 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
BJ75,FJ75,HJ75 L=190,L=190 |
4 | ||
| 90118-14210 |
BJ75,FJ75,HJ75 L=200,L=200,W/*DIP |
2 | ||
| 90118-14109 |
BJ75,FJ75,HJ75 L=195,W/*DIP |
2 | ||
| 90118-14108 |
BJ75,FJ75,HJ75 L=185 |
4 | ||
| 90118-14110 |
FJ75,HJ75..PIC..ARL L=205,W/*DIP |
2 | ||
| 90117-14179 |
FJ75,HJ75..PIC..ARL L=195,L=195 |
4 | ||
| 90118-14109 |
FJ75,HJ75..PIC..ARL L=195 |
4 | ||
| 90117-14180 |
FJ75,HJ75..PIC..ARL L=205,L=205,W/*DIP |
2 | ||
| 90117-14032 |
FJ75,HJ75..ARL L=200,L=195 |
4 | ||
| 90117-14002 |
FJ75,HJ75..ARL L=210,L=205,W/*DIP |
2 | ||
| 90117-14032 |
BJ75,FJ75,HJ75..ARL,GEN,SA L=200,L=195 |
4 | ||
| 90117-14002 |
BJ75,FJ75,HJ75..ARL,GEN,SA L=210,L=205,W/*DIP |
2 | ||
| 90117-14032 |
BJ75,FJ75,HJ75 L=200,L=195 |
4 | ||
| 90117-14002 |
BJ75,FJ75,HJ75 L=210,L=205,W/*DIP |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
BJ75,FJ75,HJ75 L=190,L=190 |
4 | ||
| 90118-14210 |
BJ75,FJ75,HJ75 L=200,L=200,W/*DIP |
2 | ||
| 90118-14109 |
BJ75,FJ75,HJ75 L=195,W/*DIP |
2 | ||
| 90118-14108 |
BJ75,FJ75,HJ75 L=185 |
4 | ||
| 90118-14110 |
FJ75,HJ75..PIC..ARL L=205,W/*DIP |
2 | ||
| 90117-14179 |
FJ75,HJ75..PIC..ARL L=195,L=195 |
4 | ||
| 90118-14109 |
FJ75,HJ75..PIC..ARL L=195 |
4 | ||
| 90117-14180 |
FJ75,HJ75..PIC..ARL L=205,L=205,W/*DIP |
2 | ||
| 90117-14032 |
FJ75,HJ75..ARL L=200,L=195 |
4 | ||
| 90117-14002 |
FJ75,HJ75..ARL L=210,L=205,W/*DIP |
2 | ||
| 90117-14032 |
BJ75,FJ75,HJ75..ARL,GEN,SA L=200,L=195 |
4 | ||
| 90117-14002 |
BJ75,FJ75,HJ75..ARL,GEN,SA L=210,L=205,W/*DIP |
2 | ||
| 90117-14032 |
BJ75,FJ75,HJ75 L=200,L=195 |
4 | ||
| 90117-14002 |
BJ75,FJ75,HJ75 L=210,L=205,W/*DIP |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60060 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 48047-60080 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18009 |
BJ75,FJ75,HJ75 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
BJ75,FJ75,HJ75 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
BJ75,FJ75,HJ75 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48404-60040 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48404-60040 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48404-60040 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48404-60040 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-60070 |
BJ75,FJ75,HJ75 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-60070 |
BJ75,FJ75,HJ75 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-60110 |
BJ75,FJ75,HJ75 MARK 48531-60110 |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75 |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75..ARL,GEN,SA |
1 | ||
| 48531-69215 |
FJ75,HJ75..ARL |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-60110 |
BJ75,FJ75,HJ75 MARK 48531-60110 |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75 |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75..ARL,GEN,SA |
1 | ||
| 48531-69215 |
FJ75,HJ75..ARL |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90385-19003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
6 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90385-19003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
6 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90385-19003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
6 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90385-19003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
6 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03015 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-60110 |
BJ75,FJ75,HJ75 MARK 48531-60110 |
1 | ||
| 48531-69215 |
FJ75,HJ75..ARL |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75..ARL,GEN,SA |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-60110 |
BJ75,FJ75,HJ75 MARK 48531-60110 |
1 | ||
| 48531-69215 |
FJ75,HJ75..ARL |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75..ARL,GEN,SA |
1 | ||
| 48531-69215 |
BJ75,FJ75,HJ75 |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90170-14187 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 91611-60822 | ||||
| 91615-60825 | ||||
| 91619-61220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

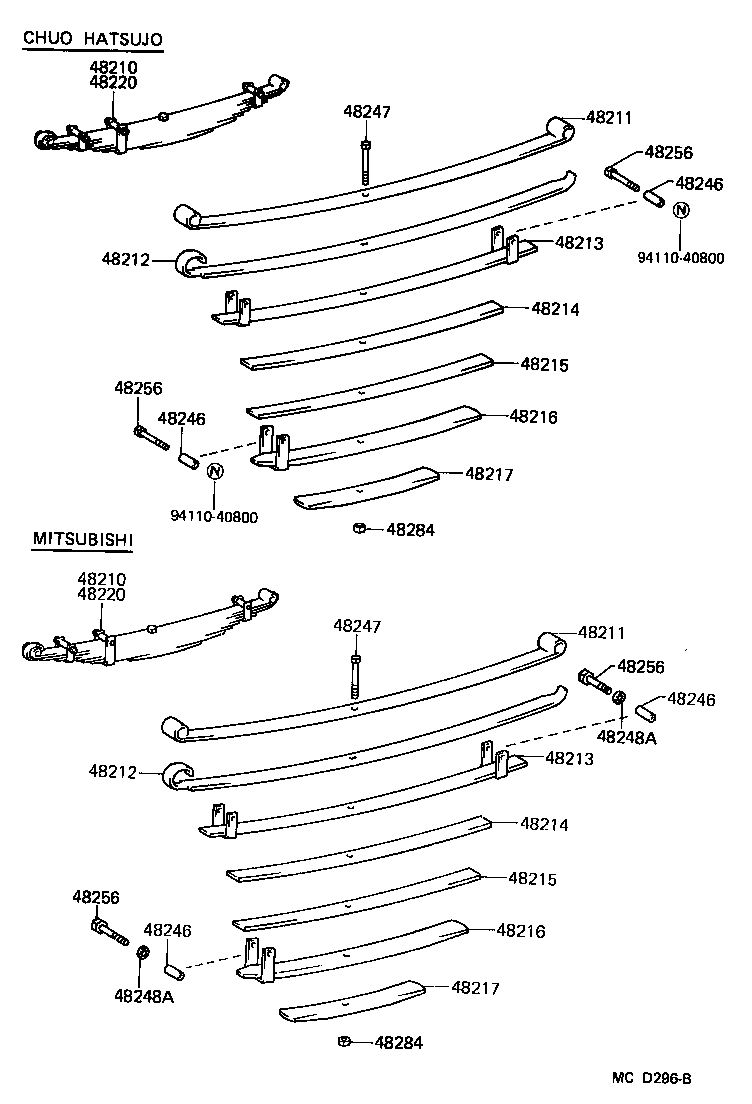

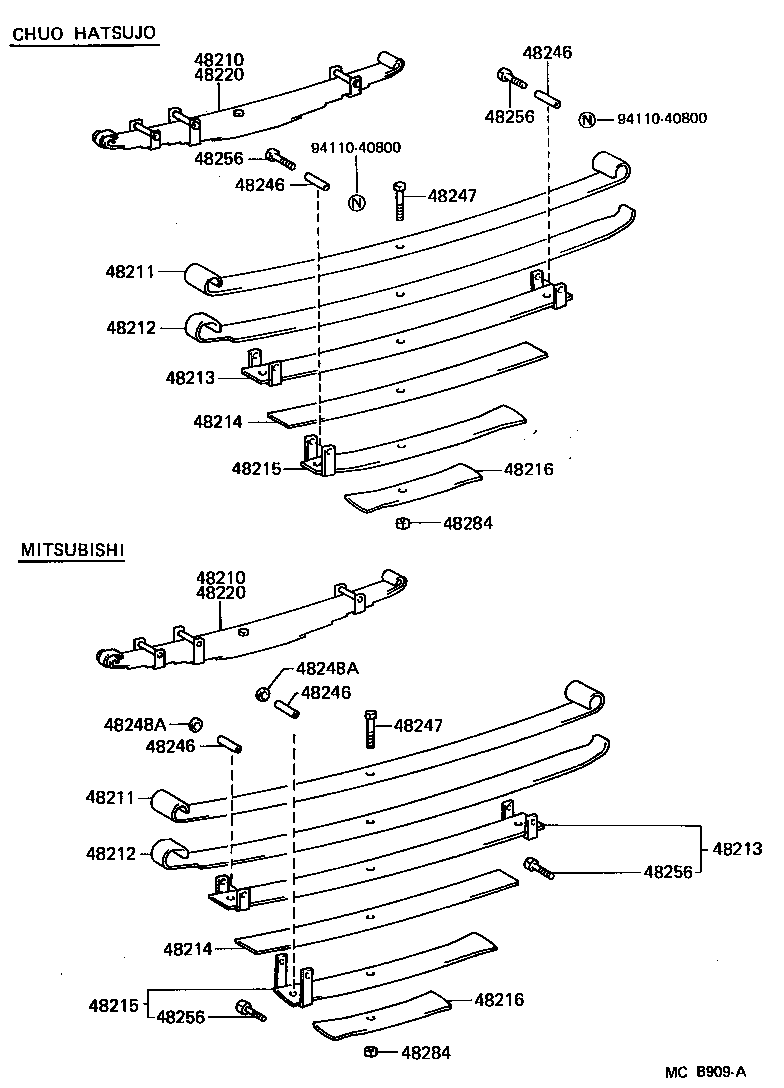

ILLUST NO. 2 OF 2(8411-8510)BJ75,FJ75,HJ75 ; (8510-8611)BJ75,FJ75,HJ75..HT ; (8510-8708)PIC..GEN,ME,
ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 2(8510-8611)PIC..ARL ; (8611-8707)FJ75,HJ75..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48217-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48203-60591 |
FJ75,HJ75..PIC..ARL HJ75,FJ75..ARL |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48217-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48203-60591 |
FJ75,HJ75..PIC..ARL HJ75,FJ75..ARL |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
BJ75,FJ75,HJ75 |
6 | ||
| 48148-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 2(8707-8708)FJ75,HJ75..ARL ; (8708-8808)BJ75,FJ75,HJ75..ARL,GEN,SA ; (8808- )BJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48211-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48211-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48211-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48212-60420 |
BJ75,FJ75,HJ75 |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48212-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48212-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48212-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48213-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48213-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48214-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48214-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48202-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48215-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48215-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48215-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60420 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48216-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48216-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48203-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60590 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48217-60600 |
FJ75,HJ75..PIC..ARL MITSUBISHI |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48203-60591 |
FJ75,HJ75..PIC..ARL HJ75,FJ75..ARL |
2 | ||
| 48203-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48218-60591 |
FJ75,HJ75..ARL CHUO HATSUJO |
2 | ||
| 48218-60591 |
BJ75,FJ75,HJ75 CHUO HATSUJO;HEAVY DUTY SUSPENSION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60420 |
BJ75,FJ75,HJ75 |
1 | ||
| 48210-60590 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 48210-60591 |
FJ75,HJ75..ARL 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75 8-LEAF |
1 | ||
| 48210-60591 |
BJ75,FJ75,HJ75..ARL,GEN,SA 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 48146-60070 |
BJ75,FJ75,HJ75 |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BJ75,FJ75,HJ75..ARL,GEN,SA CHUO HATSUJO |
2 | ||
| 48247-36500 |
FJ75,HJ75..ARL |
2 | ||
| 48247-36530 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48247-36040 |
FJ75,HJ75..PIC..ARL CHUO HATSUJO |
2 | ||
| 48247-36500 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| 48289-60010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
6 | ||
| 48156-37010 |
BJ75,FJ75,HJ75 MITSUBISHI |
6 | ||
| 48156-37010 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7#,FJ7#,HJ75 MITSUBISHI |
2 | ||
| 94110-51000 |
BJ75,FJ75,HJ75 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
ILLUST NO. 1 OF 3(9001-9607)FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
