HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

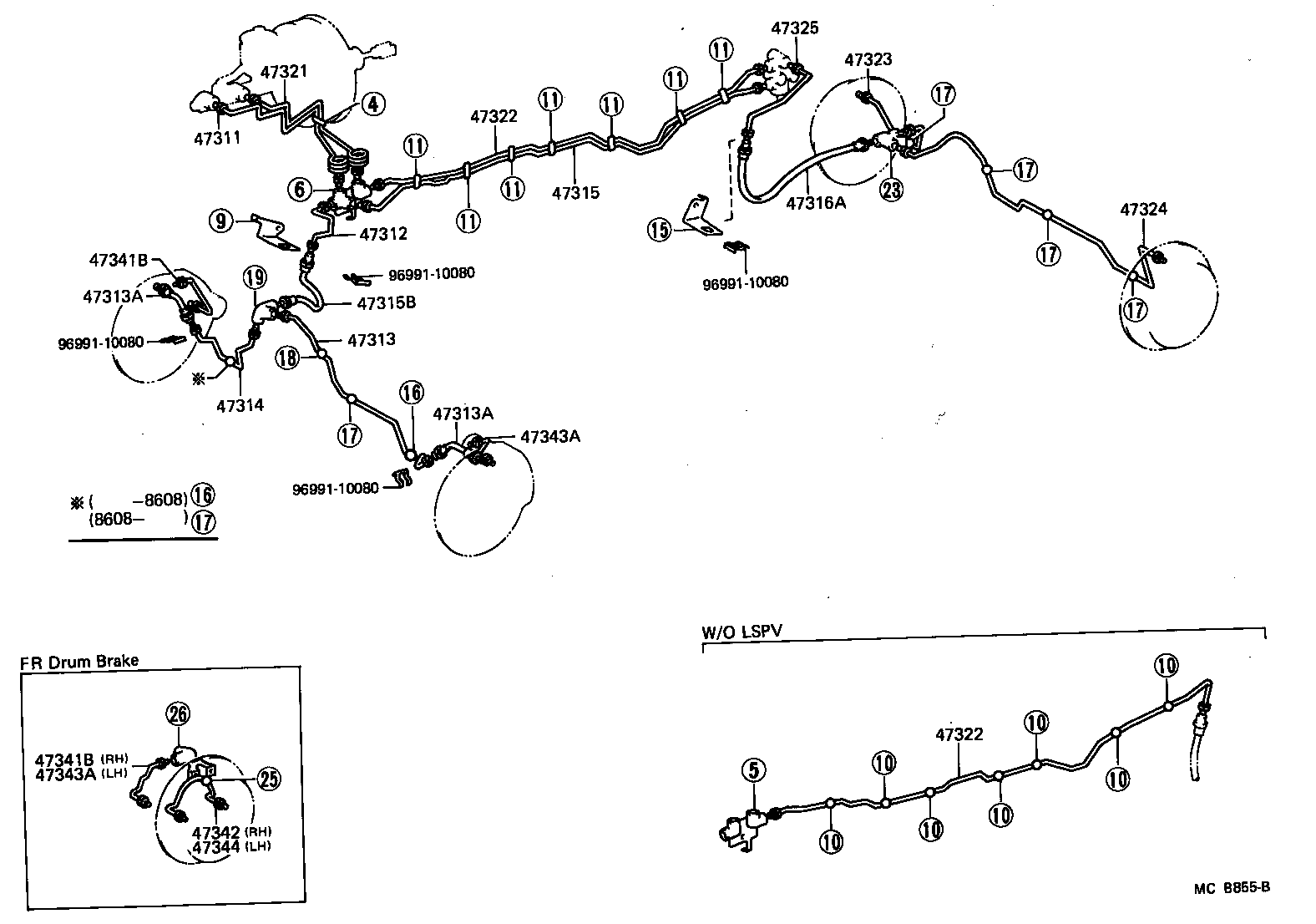

ILLUST NO. 1 OF 3(8411- )FJ75,HJ75..RHD

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47315B 47316A 47321 47322 47322 47323 47324 47325 47341B 47341B 47342 47343A 47343A 47344 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47312-60500

FJ7#,HJ75..RHD..(ARL,GEN)

 1
47312-60480

BJ70,73,75..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47313-60130

FJ7#,HJ75,RJ70

 1
47313-60131

FJ7#,HJ75

 1
47313-60130

FJ7#,HJ75

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60161

BJ7#,FJ7#,HJ75

 1
47314-60160

BJ7#,FJ7#,HJ75

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ7#,FJ7#,HJ75

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ7#,FJ7#,HJ75

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60320

BJ7#,FJ7#,HJ75

 1
47315-60321

BJ7#,FJ7#,HJ75

 1
47315 - TUBE, FRONT BRAKE, NO.5
47316-60240

FJ75,HJ75

 1
47316-60240

FJ75,HJ75..ARL,GEN,ME

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-33505

BJ7#,FJ7#,HJ75

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34205

BJ75,FJ75,HJ75

 1
96940-34305

BJ75,FJ75,HJ75

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-60390

FJ7#,HJ75..RHD

 1
47322-60370

BJ70,73,75..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-60290

FJ75,HJ75..ARL,GEN,ME

W/LSPV

 1
47323-60290

FJ75,HJ75

W/LSPV

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-60290

FJ75,HJ75..ARL,GEN,ME

W/LSPV

 1
47323-60290

FJ75,HJ75

W/LSPV

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-60101

BJ75,FJ75,HJ75

 1
47324-60100

BJ75,FJ75,HJ75

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-60060

BJ75,FJ75,HJ75

 1
47325-60061

BJ75,FJ75,HJ75

 1
47325 - TUBE, REAR BRAKE, NO.5
47326-60090

BJ75,FJ75,HJ75

 1
47326-60090

BJ75,FJ75,HJ75..ARL,GEN,ME

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ7#,FJ7#,HJ75

FR DISC BRAKE

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ7#,FJ7#,HJ75

FR DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60021

BJ7#,FJ7#,HJ75

FR DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60021

BJ7#,FJ7#,HJ75

FR DISC BRAKE

 1
Common parts
96991-10080

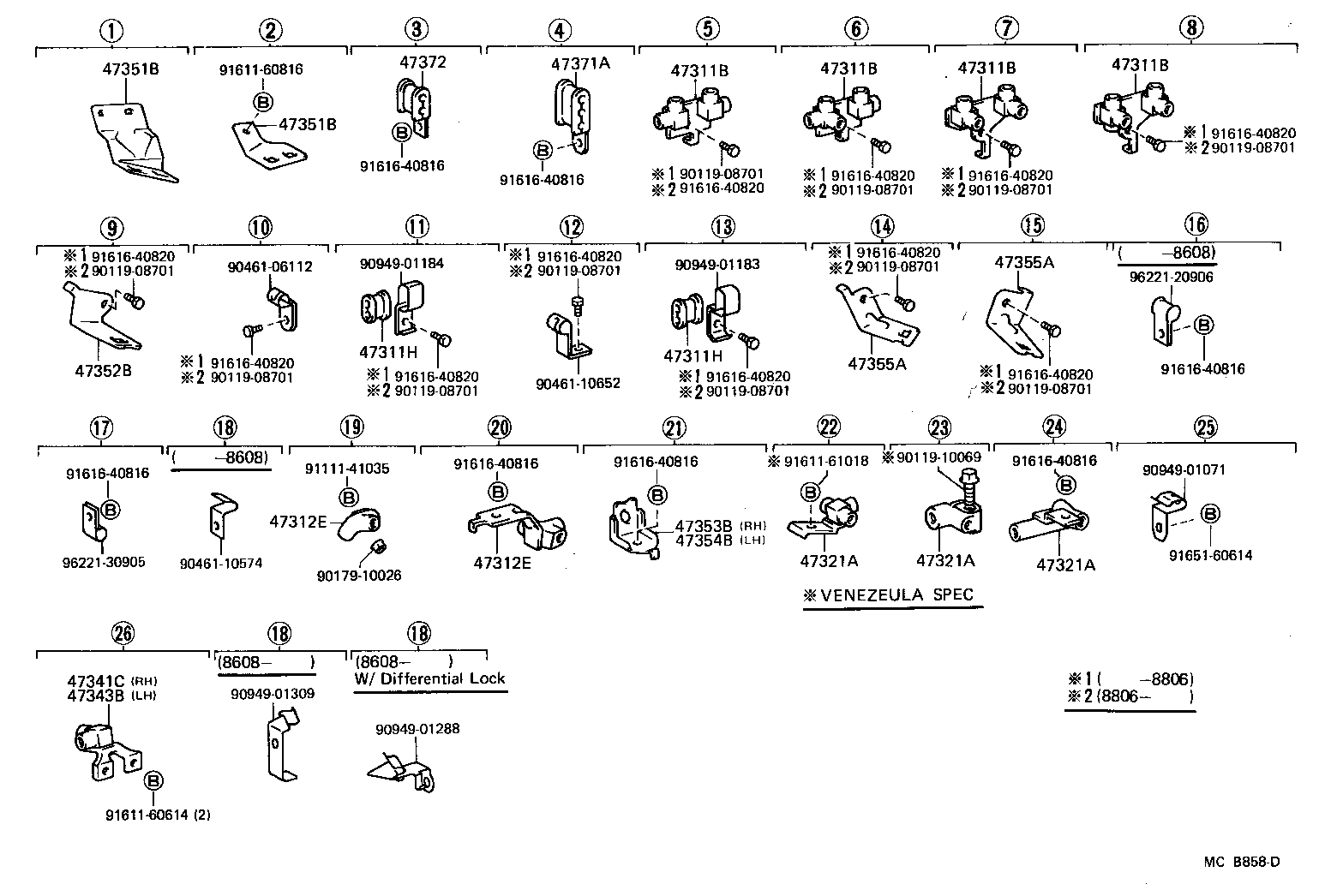

ILLUST NO. 2 OF 3(8411- )

Click highlighted areas on diagram

diagram 47311B 47311B 47311B 47311B 47311H 47311H 47312E 47312E 47321A 47321A 47321A 47341C 47343B 47351B 47351B 47352B 47353B 47354B 47355A 47355A 47371A 47372 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011910069 9017910026 9046106112 9046110574 9046110652 9094901071 9094901183 9094901184 9094901288 9094901309 9111141035 9161160614 9161160816 9161161018 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165160614 9622120906 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10173

FJ7#,HJ75,RJ70

W/LSPV

 1
90413-10173

FJ7#,HJ75,RJ70..ARL,GEN,ME

W/LSPV

 1
90413-10174

BJ70,73,75,LJ70..DSL

W/LSPV

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10173

FJ7#,HJ75,RJ70

W/LSPV

 1
90413-10173

FJ7#,HJ75,RJ70..ARL,GEN,ME

W/LSPV

 1
90413-10174

BJ70,73,75,LJ70..DSL

W/LSPV

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10173

FJ7#,HJ75,RJ70

W/LSPV

 1
90413-10173

FJ7#,HJ75,RJ70..ARL,GEN,ME

W/LSPV

 1
90413-10174

BJ70,73,75,LJ70..DSL

W/LSPV

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10173

FJ7#,HJ75,RJ70

W/LSPV

 1
90413-10173

FJ7#,HJ75,RJ70..ARL,GEN,ME

W/LSPV

 1
90413-10174

BJ70,73,75,LJ70..DSL

W/LSPV

 1
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 7
90480-01069

BJ7#,FJ7#,HJ75,LJ70,RJ70

 7
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 7
90480-01069

BJ7#,FJ7#,HJ75,LJ70,RJ70

 7
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10042

BJ7#,FJ7#,HJ75

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10042

BJ7#,FJ7#,HJ75

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10204

BJ75,FJ75,HJ75

W/O LSPV

 1
90413-10086

BJ75,FJ75,HJ75

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10204

BJ75,FJ75,HJ75

W/O LSPV

 1
90413-10086

BJ75,FJ75,HJ75

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10204

BJ75,FJ75,HJ75

W/O LSPV

 1
90413-10086

BJ75,FJ75,HJ75

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60090

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47354-60040

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60080

BJ75,FJ75,HJ75

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60080

BJ75,FJ75,HJ75

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

FJ7#,HJ75,RJ70..MTM

 4
Common parts
90119-08701
90119-10069
90179-10026
90461-06112
90461-10574
90461-10652
90949-01071
90949-01183
90949-01184
90949-01288
90949-01309
91111-41035
91611-60614
91611-60816
91611-61018
91616-40816
91616-40820
91651-60614
96221-20906
96221-30905

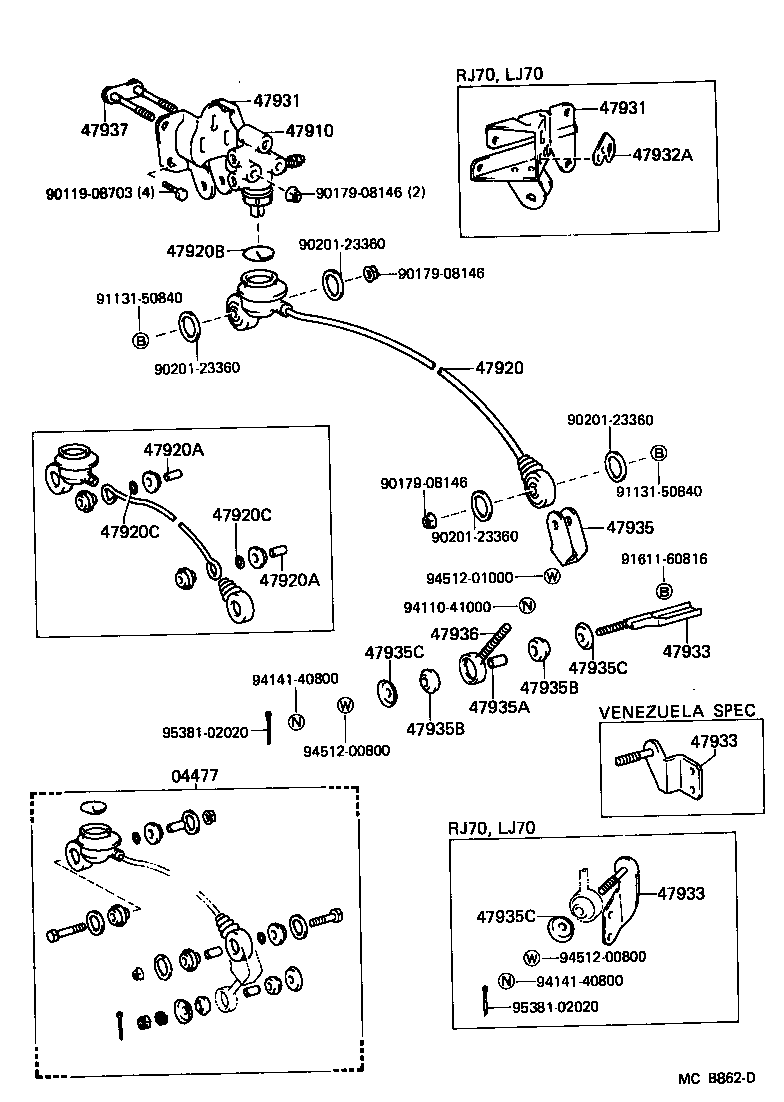

ILLUST NO. 2 OF 3(8411- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47931 47932A 47933 47933 47933 47935 47935A 47935B 47935B 47935C 47935C 47935C 47936 47937 9011908703 9017908146 9017908146 9017908146 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411041000 9414140800 9414140800 9451200800 9451200800 9451201000 9538102020 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26070

BJ75,FJ75,HJ75

 1
47910-26040

BJ7#,FJ7#,HJ75

 1
47920 - SPRING ASSY, LOAD SENSING
47920-60050

BJ7#,FJ7#,HJ75

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35050

BJ7#,FJ7#,HJ75

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-35050

BJ7#,FJ7#,HJ75

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60050

BJ7#,FJ7#,HJ75

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60050

BJ7#,FJ7#,HJ75

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60050

BJ7#,FJ7#,HJ75

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

BJ7#,FJ7#,HJ75

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
Common parts
90119-08703
90179-08146
90201-23360
91131-50840
91611-60816
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 5 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47931 47932A 47932A 47933 47933 47935 47935A 47935B 47935B 47935C 47935C 47935C 47936 47937 47938 9011908834 9017908204 9017908204 9017908204 9017908204 9017910132 9017910132 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 9165160816 91651B0825 9411041000 9413000802 9413000802 9413000802 9414140800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020 9538102020
Part # Description Qty Price
Common parts
90119-08834
90179-08204
90179-10132
90201-23360
91131-50840
91611-B0816
91651-60816
91651-B0825
94110-41000
94130-00802
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

diagram 47311B 47311B 47311B 47311B 47311B 47311H 47311H 47312E 47312E 47321A 47321A 47341C 47343B 47351B 47352B 47352B 47353B 47354B 47355A 47355A 47371A 47372 47393 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011910121 9011910121 9046108706 9046110629 9046110629 9046110793 9046400208 9094901071 9094901183 9094901184 9094901854 9161160614 91611B0816 91611B0816 91621J0814 91621J0814 91621J0814 91621J0814 9165160614 91651B0814
Part # Description Qty Price
Common parts
90119-08701
90119-10121
90461-08706
90461-10629
90461-10793
90464-00208
90949-01071
90949-01183
90949-01184
90949-01854
91611-60614
91611-B0816
91621-J0814
91651-60614
91651-B0814

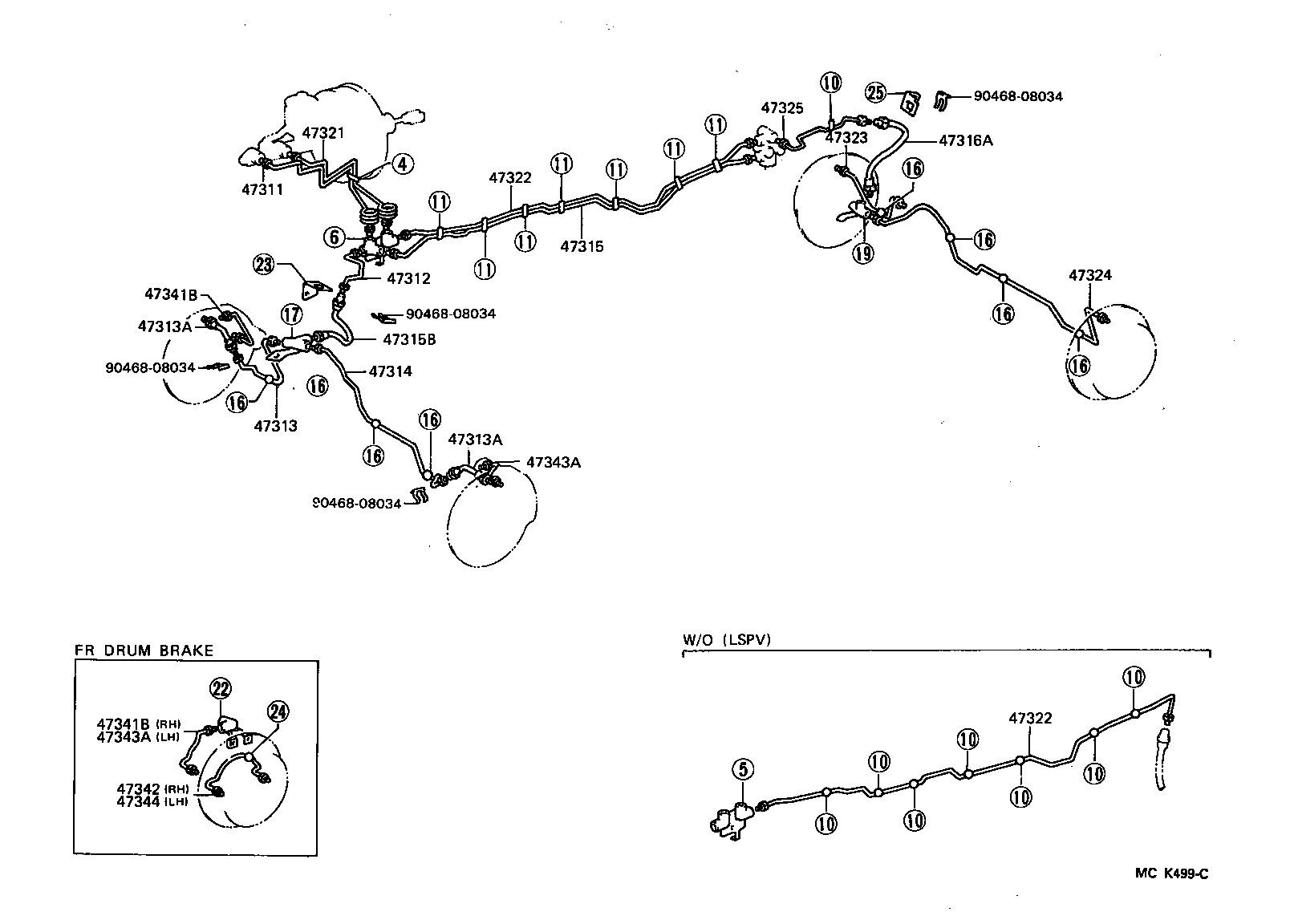

ILLUST NO. 1 OF 6(9001-0006)FZJ70,75,HZJ70,73,75,PZJ7#..RHD

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47315 47315B 47316A 47318D 47318E 47318E 47321 47322 47322 47322 47323 47323 47324 47324 47324B 47324B 47325 47341B 47341B 47342 47343A 47343A 47344 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
Common parts
90468-08034

ILLUST NO. 1 OF 6(9001-9208)FJ75,HJ75..RHD

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313A 47314 47315 47315B 47316A 47321 47322 47322 47323 47324 47325 47341B 47341B 47342 47343A 47343A 47344 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
Common parts
90468-08034
