HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(8411-8708)BJ7#,FJ7#,HJ75,LJ70 ; (8411- )RJ70..LHD ; (8708- )FJ75..STD ; (870
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-60200 |
BJ73,75,HJ75 |
1 | ||
| 04443-60300 |
BJ7#,HJ75,LJ70 FR DISC BRAKE |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
BJ7#,FJ70,73,HJ75,LJ70 |
1 | ||
| 44606-12520 |
BJ7#,FJ7#,HJ75,LJ70 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60320 |
BJ7#,LJ70;HJ75..RHD FR DISC BRAKE |
1 | ||
| 44610-60460 |
HJ75..RHD FR DISC BRAKE |
1 | ||
| 44610-60460 |
BJ7#,HJ75..RHD FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60320 |
BJ7#,LJ70;HJ75..RHD FR DISC BRAKE |
1 | ||
| 44610-60460 |
HJ75..RHD FR DISC BRAKE |
1 | ||
| 44610-60460 |
BJ7#,HJ75..RHD FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BJ7#,FJ70,73,HJ75,LJ70 |
1 | ||
| 44621-28120 |
BJ7#,FJ7#,HJ75,LJ70 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BJ7#,FJ7#,HJ75,LJ70 |
1 | ||
| 44628-28120 |
BJ7#,FJ70,73,HJ75,LJ70 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-60450 |
BJ7#,HJ75,LJ70 FR DISK BRAKE |
1 | ||
| 44642-60280 |
BJ73,75,FJ75,HJ75 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
BJ7#,FJ70,73,HJ75,LJ70 |
1 | ||
| 44635-28120 |
BJ7#,FJ7#,HJ75,LJ70 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

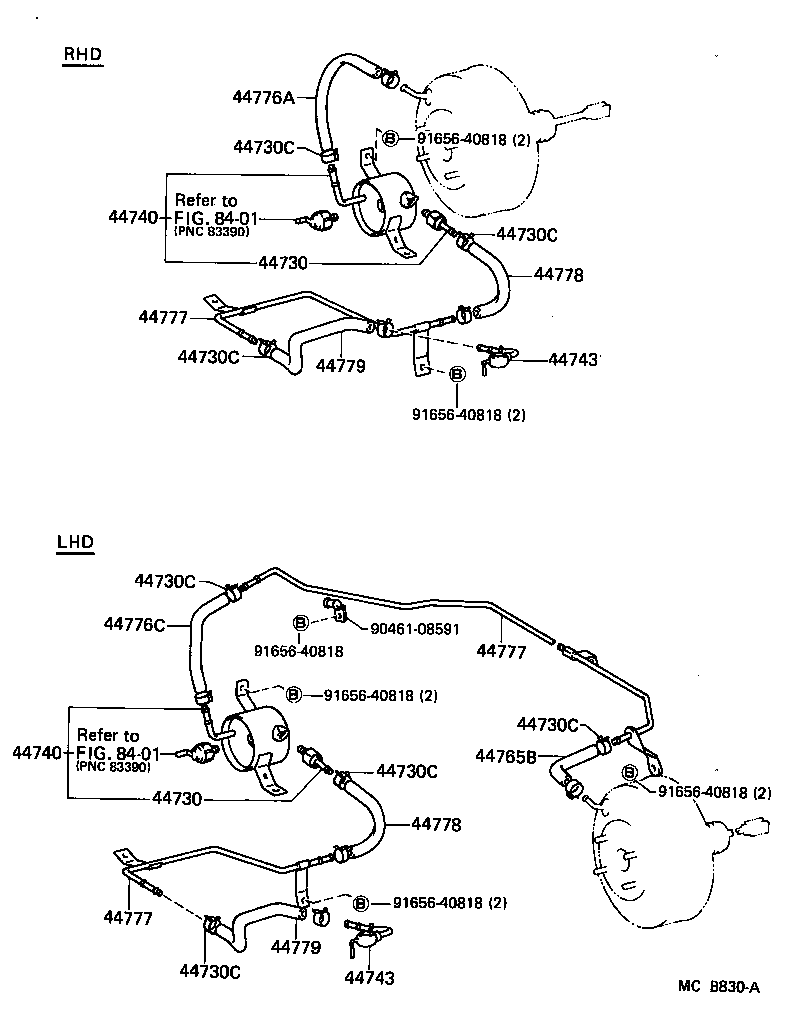

ILLUST NO. 2 OF 2(8411-8808)BJ7# ; (8503-8510)HJ75 ; (8510- )HJ75..SA ; (8808- )BJ74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44765B - HOSE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44778-60010 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 44772-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HJ75..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HJ75..RHD |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44774-60070 |
BJ70,73,75 |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44774-60070 |
BJ70,73,75 |
1 | ||
| Common parts | ||||
| 90461-08591 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 8401 | ||||

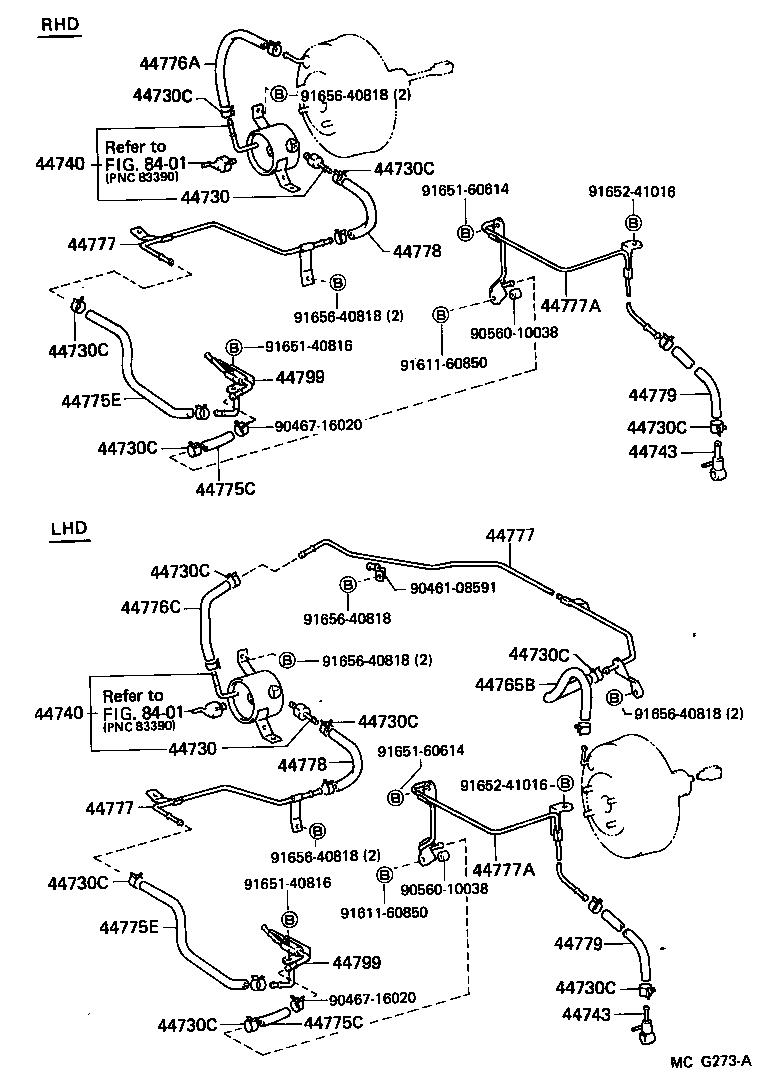

ILLUST NO. 2 OF 2(8411- )HJ75..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44765B - HOSE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44778-60010 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 44772-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HJ75..RHD |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44774-60070 |
BJ70,73,75 |
1 | ||
| Common parts | ||||
| 90461-08591 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 8401 | ||||

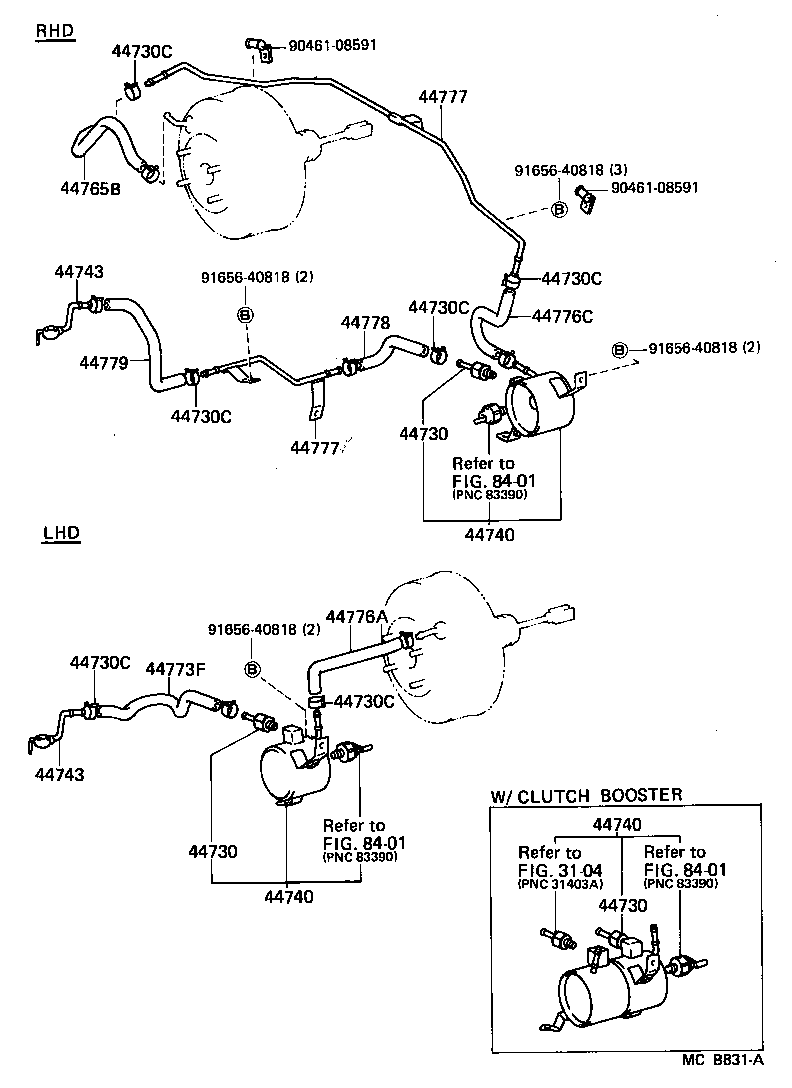

ILLUST NO. 2 OF 2(8808- )BJ70,73,75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,HJ75,LJ70 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
11 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60100 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09090 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09091 |
BJ70,73,75 |
1 | ||
| 90405-09074 |
HJ75..ARL,GEN |
1 | ||
| 90405-09089 |
BJ70,73,75 W/*CLB |
1 | ||
| 90405-09094 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 90405-09088 |
HJ75..ARL,GEN W/COOLER OR *ELC |
1 | ||
| 90405-09087 |
HJ75..ARL,GEN W/*CLB |
1 | ||
| 90405-09095 |
HJ75..ARL,GEN W/*CLB & COOLER OR *ELC |
1 | ||
| 90405-09130 |
BJ70,73,75 |
1 | ||
| 44765B - HOSE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44778-60010 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 90445-17087 |
BJ70,73,75 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 90445-17087 |
BJ70,73,75 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44775-60010 |
BJ70,73,75 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44775-60010 |
BJ70,73,75 |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 44772-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60040 |
HJ75..RHD..(ARL,GEN) DASH PANEL SIDE |
1 | ||
| 44777-60050 |
HJ75..RHD..(ARL,GEN) EPRON SIDE |
1 | ||
| 44777A - CONNECTOR, VACUUM HOSE, NO.2 | ||||
| 44777-60110 |
BJ70,73,75 |
1 | ||
| 44777A - CONNECTOR, VACUUM HOSE, NO.2 | ||||
| 44777-60110 |
BJ70,73,75 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HJ75..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HJ75..RHD |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44774-60070 |
BJ70,73,75 |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60020 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 44774-60070 |
BJ70,73,75 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-60040 |
BJ70,73,75 |
1 | ||
| 44799-60020 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 44799-60030 |
BJ70,73,75 W/*CLB |
1 | ||
| 44799-60010 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-60040 |
BJ70,73,75 |
1 | ||
| 44799-60020 |
BJ70,73,75 W/*CLB & COOLER OR *ELC |
1 | ||
| 44799-60030 |
BJ70,73,75 W/*CLB |
1 | ||
| 44799-60010 |
BJ70,73,75 W/COOLER OR *ELC |
1 | ||
| Common parts | ||||
| 90461-08591 | ||||
| 90467-16020 | ||||
| 90560-10038 | ||||
| 91611-60850 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91652-41016 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9001-0405)HZJ70,73,75,PZJ7#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40818 | ||||
| 91651-60814 | ||||
| 91651-61016 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9001-9108)HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-60814 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
