HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(8411- )BJ7#,FJ7#,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110C - BOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90116-10074 |
BJ7#,FJ7#,HJ75 S=16 & 12.5,L=40.5 |
8 | ||
| 90116-10122 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) S=19 & 12.5,L=78.4,W/*DL |
2 | ||
| 90116-10075 |
BJ7#,FJ7#,HJ75 S=18 & 12.5,L=53.5 |
2 | ||
| 90116-10075 |
BJ70,73,74,FJ7#,HJ75 S=18 & 12.5,L=53.5 |
2 | ||
| 90116-10074 |
BJ70,73,74,FJ7#,HJ75 S=16 & 12.5,L=40.5 |
8 | ||
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-60160 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 43110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 43110-60240 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 43110-60241 |
BJ75,FJ75,HJ75 BRAKE DUST COVER=W/AIR SCOOP |
1 | ||
| 43110-60161 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18057 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43110F - GASKET, FRONT DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 42181-60030 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 43209A - UNION (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90404-10019 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43209B - CLAMP (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90461-10387 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 90949-01323 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 43209C - CLIP, HOSE (FOR FRONT AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43209D - HOSE, NO.1 (FOR FRONT AXLE BREATHER) | ||||
| 95333-06040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 *H,L=400,*H,L=380 |
1 | ||
| 95332-06060 |
BJ7#,FJ7#,HJ75 *H,L=420 |
1 | ||
| 95332-06040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 *H,L=380 |
1 | ||
| 43209G - PLUG, BREATHER (FOR FRONT AXLE) | ||||
| 90930-03097 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 91616-60820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

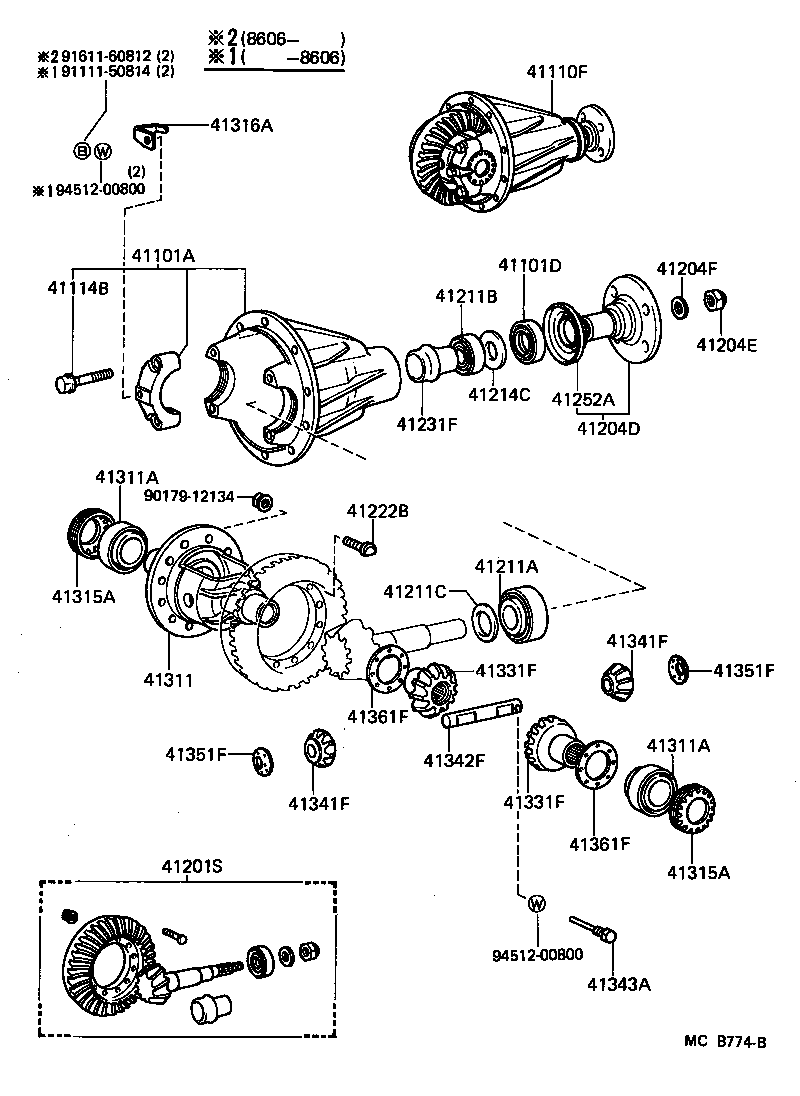

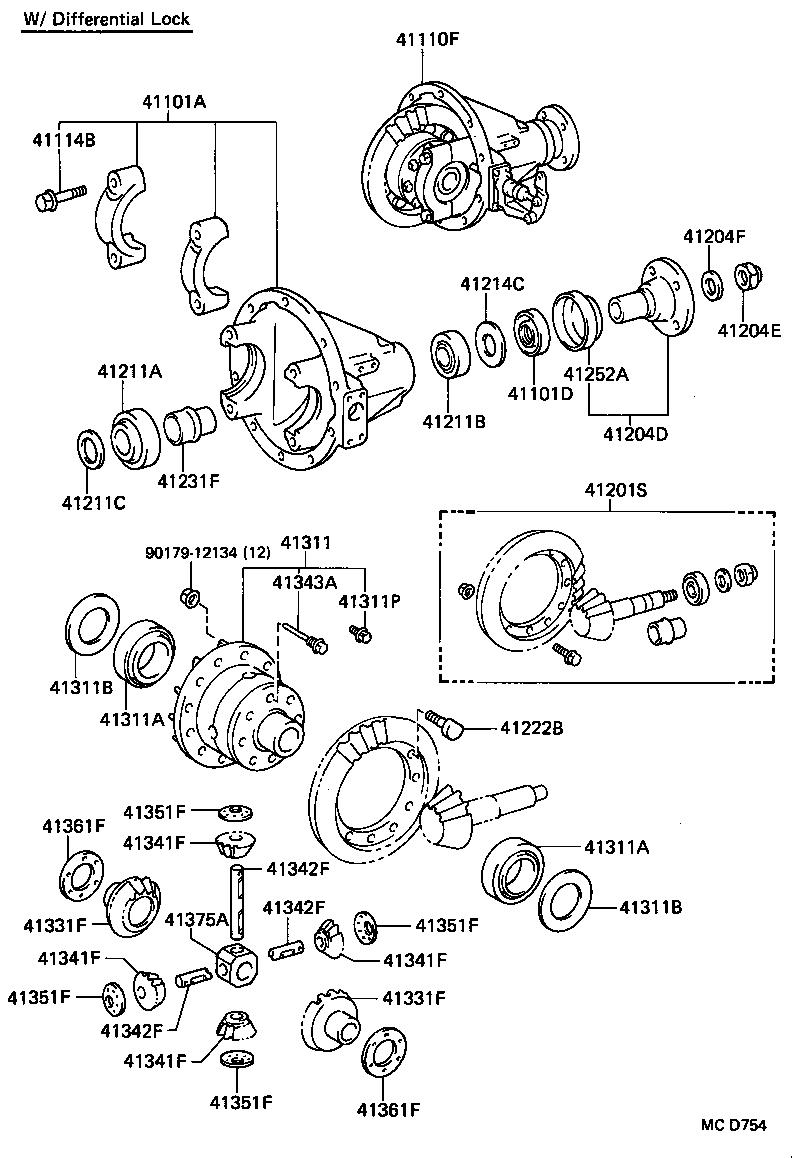

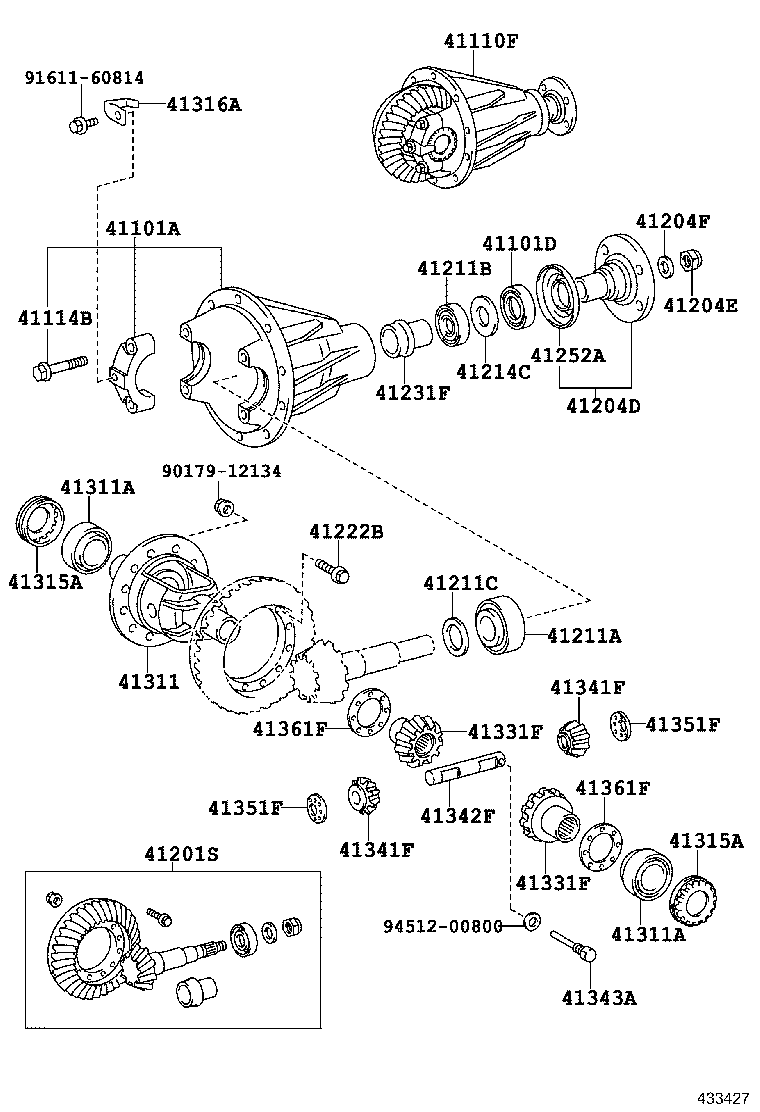

ILLUST NO. 2 OF 3(8411- )BJ7#,FJ7#,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,FGR=37:9 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10 |
1 | ||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311-60070 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41343A - PIN, FRONT DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 91611-60812 | ||||
| 94512-00800 | ||||
ILLUST NO. 3 OF 3(8608- )BJ70,73,74..RHD ; (8608- )BJ75,FJ7#,HJ75..ARL,GEN,ME ; (8608- )BJ7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41451A - FORK, FRONT DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41451-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41453A - SLEEVE, FRONT DIFFERENTIAL LOCK | ||||
| 41453-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41453-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41456A - COVER, FRONT DIFFERENTIAL LOCK | ||||
| 41456-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41456-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460A - CYLINDER ASSY, FRONT DIFFERENTIAL LOCK | ||||
| 41460-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460C - RING, O (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 96711-24023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 96711-24023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460E - BALL (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-10003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90360-10003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460G - BOLT (FOR FRONT DIFFERENTIAL LOCK CYLINDER SET) | ||||
| 90105-08114 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90105-08114 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41463C - BOLT (FOR FRONT DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) | ||||
| 90105-06052 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90105-06052 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464A - LEVER, FRONT DIFFERENTIAL LOCK CYLINDER | ||||
| 41464-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464C - BUSH(FOR FRONT DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41464C - BUSH(FOR FRONT DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41464C - BUSH(FOR FRONT DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41464C - BUSH(FOR FRONT DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41465A - RETAINER, FRONT DIFFERENTIAL LOCK SPRING | ||||
| 41465-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465C - SPRING, COMPRESSION(FOR FRONT DIFFERENTIAL LOCK RETAINE | ||||
| 90501-20083 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90501-20083 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465E - PLUG (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-26001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90341-26001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465G - GASKET (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90430-26002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90430-26002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41466A - BOOT, FRONT DIFFERENTIAL LOCK CYLINDER | ||||
| 41466-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41466-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90201-09018 | ||||
| 90468-14011 | ||||
| 91651-60820 | ||||
| 95381-02525 | ||||
ILLUST NO. 2 OF 3(8608- )BJ70,73,74..RHD ; (8608- )BJ75,FJ7#,HJ75..ARL,GEN,ME ; (8608- )BJ7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,W(*DL) |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,*FGR=37:9 |
1 | ||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,FGR=37:9 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35 |
1 | ||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10 |
1 | ||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15 |
1 | ||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41214-26010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41252-35010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311-60070 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311-60070 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23 |
2 | ||
| 41311P - BOLT (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90109-10091 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
5 | ||
| 90109-10091 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
5 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41343A - PIN, FRONT DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90 |
2 | ||
| 41375A - HOLDER, FRONT DIFFERENTIAL PINION SHAFT | ||||
| 41375-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41375-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
ILLUST NO. 1 OF 2(9001-9108)HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
