HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

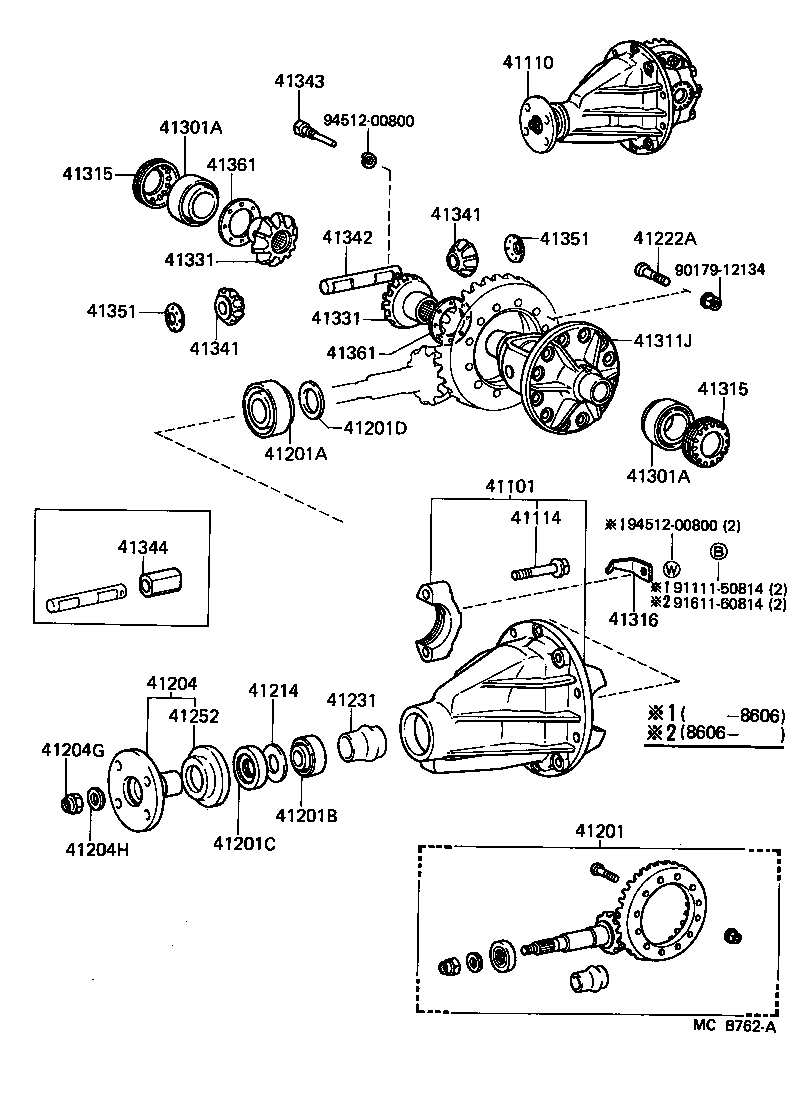

ILLUST NO. 2 OF 3(8411- )BJ7#,FJ7#,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41110-60130 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K085,*FGR=37:9 |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,K085,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,K085,*FGR=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15,T=1.15 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05,T=1.05 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30,T=1.30 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50,T=1.50 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10,T=1.10 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45,T=1.45 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20,T=1.20 |
1 | ||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35,T=1.35 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25,T=1.25 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40,T=1.40 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-60070 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41311-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41316-30010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 3(8411- )BJ7#,FJ7#,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41110-60130 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K085,*FGR=37:9 |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,K085,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,K085,*FGR=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15,T=1.15 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05,T=1.05 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30,T=1.30 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50,T=1.50 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10,T=1.10 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45,T=1.45 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20,T=1.20 |
1 | ||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35,T=1.35 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25,T=1.25 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40,T=1.40 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |

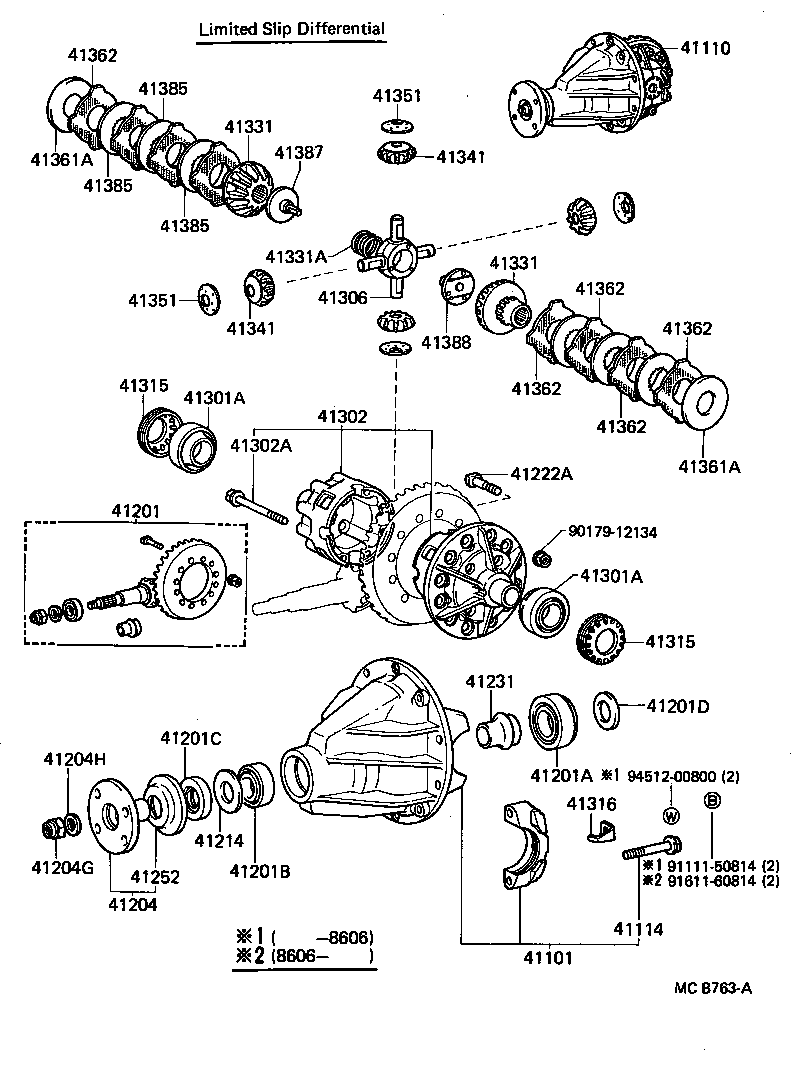

BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41301-60011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41301-60050 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90109-10091 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
5 | ||
| 41306 - SPIDER SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41306-60010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41316-30010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-85001 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54001 |
BJ7#,FJ7#,HJ75 T=0.20,T=0.20 |
4 | ||
| 90564-54004 |
BJ7#,FJ7#,HJ75 T=0.35,T=0.35 |
4 | ||
| 90564-54002 |
BJ7#,FJ7#,HJ75 T=0.25,T=0.25 |
4 | ||
| 90564-54003 |
BJ7#,FJ7#,HJ75 T=0.30,T=0.30 |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54001 |
BJ7#,FJ7#,HJ75 T=0.20,T=0.20 |
4 | ||
| 90564-54004 |
BJ7#,FJ7#,HJ75 T=0.35,T=0.35 |
4 | ||
| 90564-54002 |
BJ7#,FJ7#,HJ75 T=0.25,T=0.25 |
4 | ||
| 90564-54003 |
BJ7#,FJ7#,HJ75 T=0.30,T=0.30 |
4 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60051 |
BJ7#,FJ7#,HJ75 T=2.00 |
8 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60051 |
BJ7#,FJ7#,HJ75 T=2.00 |
8 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60051 |
BJ7#,FJ7#,HJ75 T=2.00 |
8 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60051 |
BJ7#,FJ7#,HJ75 T=2.00 |
8 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60051 |
BJ7#,FJ7#,HJ75 T=2.00 |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60011 |
BJ7#,FJ7#,HJ75 |
6 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-60010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-60010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||

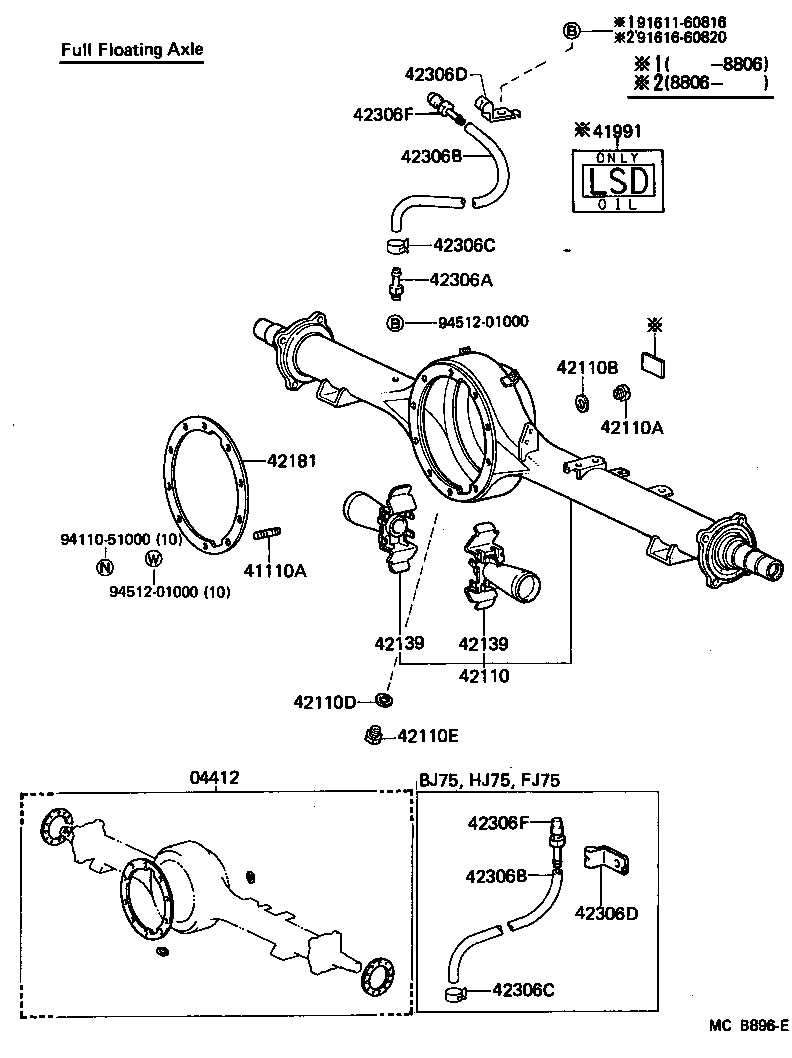

ILLUST NO. 1 OF 3(8411- )BJ7#,FJ7#,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60040 |
BJ7#,FJ7#,HJ75 FULL FLOATING AXLE |
1 | ||
| 04412-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 |
BJ7#,FJ7#,HJ75 S=16 & 12.5,L=40.5,L=40.5,S=12.5 & 16 |
8 | ||
| 90116-10075 |
BJ7#,FJ7#,HJ75 S=18 & 12.5,L=53.5,L=53.5,S=12.5 & 18 |
2 | ||
| 90116-10124 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) S=32 & 12.5,L=91.4,L=91.4,S=32 & 12.5,W/*DL |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/LSD |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60260 |
BJ7#,FJ7#,HJ75 FULL FLOATING AXLE |
1 | ||
| 42110-60261 |
BJ7#,FJ7#,HJ75 FULL FLOATING AXLE |
1 | ||
| 42110-60310 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-60010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-60010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60030 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 42181-36010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ75,FJ75,HJ75 |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95333-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
1 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95333-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
1 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01214 |
BJ75,FJ75,HJ75 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01214 |
BJ75,FJ75,HJ75 |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91616-60820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
ILLUST NO. 3 OF 3(8608- )BJ70,73,74..RHD ; (8608- )BJ75,FJ7#,HJ75..ARL,GEN,ME ; (8608- )BJ7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41451-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41453-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41456 - COVER, REAR DIFFERENTIAL LOCK | ||||
| 41456-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41456-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460 - CYLINDER ASSY, REAR DIFFERENTIAL LOCK | ||||
| 41460-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460B - RING O (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 96711-24023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 96711-24023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460D - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-10003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90360-10003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41460F - BOLT (FOR REAR DIFFERENTIAL LOCK CYLINDER SET) | ||||
| 90105-08114 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90105-08114 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41463B - BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) | ||||
| 90105-06052 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90105-06052 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464 - LEVER, REAR DIFFERENTIAL LOCK CYLINDER | ||||
| 41464-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 90386-09009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
4 | ||
| 41465 - RETAINER, REAR DIFFERENTIAL LOCK SPRING | ||||
| 41465-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-20083 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90501-20083 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-26001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90341-26001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41465F - GASKET (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90430-26002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 90430-26002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41466 - BOOT, REAR DIFFERENTIAL LOCK CYLINDER | ||||
| 41466-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41466-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90201-09018 | ||||
| 90468-14011 | ||||
| 91651-60820 | ||||
| 95381-02525 | ||||
ILLUST NO. 2 OF 3(8608- )BJ70,73,74..RHD ; (8608- )BJ75,FJ7#,HJ75..ARL,GEN,ME ; (8608- )BJ7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60080 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60040 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60041 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60081 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60230 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41110-60110 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41110-60130 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K085,*FGR=37:9 |
1 | ||
| 41110-60130 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K085,*FGR=37:9 |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60231 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K084,*FGR=37:9,W/*DL |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41110-60111 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,*FGR=37:9 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 41114-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 90105-12053 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,K085,*FGR=37:9 |
1 | ||
| 41201-69165 |
BJ7#,FJ7#,HJ75 *AXC=K082,K085,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,K085,*FGR=37:9 |
1 | ||
| 41201-69166 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME *FGR=37:9=4.111,*AXC=K082,K084,K085,*FGR=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-40004 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-40059 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30038 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 90366-30011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38035 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90311-38134 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15,T=1.15 |
1 | ||
| 90201-40553 |
BJ7#,FJ7#,HJ75 T=1.15,T=1.15 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05,T=1.05 |
1 | ||
| 90201-40551 |
BJ7#,FJ7#,HJ75 T=1.05,T=1.05 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30,T=1.30 |
1 | ||
| 90201-40556 |
BJ7#,FJ7#,HJ75 T=1.30,T=1.30 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50,T=1.50 |
1 | ||
| 90201-40560 |
BJ7#,FJ7#,HJ75 T=1.50,T=1.50 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10,T=1.10 |
1 | ||
| 90201-40552 |
BJ7#,FJ7#,HJ75 T=1.10,T=1.10 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45,T=1.45 |
1 | ||
| 90201-40559 |
BJ7#,FJ7#,HJ75 T=1.45,T=1.45 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20,T=1.20 |
1 | ||
| 90201-40554 |
BJ7#,FJ7#,HJ75 T=1.20,T=1.20 |
1 | ||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35,T=1.35 |
1 | ||
| 90201-40557 |
BJ7#,FJ7#,HJ75 T=1.35,T=1.35 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25,T=1.25 |
1 | ||
| 90201-40555 |
BJ7#,FJ7#,HJ75 T=1.25,T=1.25 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40,T=1.40 |
1 | ||
| 90201-40558 |
BJ7#,FJ7#,HJ75 T=1.40,T=1.40 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55,T=1.55 |
1 | ||
| 90201-40561 |
BJ7#,FJ7#,HJ75 T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90179-22011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 90201-22007 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41214-26010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41226-35010 |
BJ7#,FJ7#,HJ75 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60020 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41231-60030 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41252-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-50024 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90368-45066 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 90366-60002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02,T=2.70,MARK 02 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02,T=2.70,MARK 02 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01,T=2.67,MARK 01 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01,T=2.67,MARK 01 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05,T=2.79,MARK 05 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05,T=2.79,MARK 05 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03,T=2.73,MARK 03 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03,T=2.73,MARK 03 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04,T=2.76,MARK 04 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04,T=2.76,MARK 04 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08,T=2.88,MARK 08 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08,T=2.88,MARK 08 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06,T=2.82,MARK 06 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06,T=2.82,MARK 06 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10,T=2.94,MARK 10 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10,T=2.94,MARK 10 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13,T=3.03,MARK 13 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13,T=3.03,MARK 13 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11,T=2.97,MARK 11 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11,T=2.97,MARK 11 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15,T=3.09,MARK 15 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15,T=3.09,MARK 15 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09,T=2.91,MARK 09 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09,T=2.91,MARK 09 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07,T=2.85,MARK 07 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07,T=2.85,MARK 07 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17,T=3.15,MARK 17 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17,T=3.15,MARK 17 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12,T=3.00,MARK 12 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12,T=3.00,MARK 12 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16,T=3.12,MARK 16 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16,T=3.12,MARK 16 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14,T=3.06,MARK 14 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14,T=3.06,MARK 14 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22,T=3.30,MARK 22 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22,T=3.30,MARK 22 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21,T=3.27,MARK 21 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21,T=3.27,MARK 21 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23,T=3.33,MARK 23 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23,T=3.33,MARK 23 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19,T=3.21,MARK 19 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19,T=3.21,MARK 19 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18,T=3.18,MARK 18 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18,T=3.18,MARK 18 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20,T=3.24,MARK 20 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20,T=3.24,MARK 20 |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02,T=2.70,MARK 02 |
2 | ||
| 90201-79002 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.70,MARK 02,T=2.70,MARK 02 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01,T=2.67,MARK 01 |
2 | ||
| 90201-79001 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.67,MARK 01,T=2.67,MARK 01 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05,T=2.79,MARK 05 |
2 | ||
| 90201-79005 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.79,MARK 05,T=2.79,MARK 05 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03,T=2.73,MARK 03 |
2 | ||
| 90201-79003 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.73,MARK 03,T=2.73,MARK 03 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04,T=2.76,MARK 04 |
2 | ||
| 90201-79004 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.76,MARK 04,T=2.76,MARK 04 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08,T=2.88,MARK 08 |
2 | ||
| 90201-79008 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.88 MARK 08,T=2.88,MARK 08 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06,T=2.82,MARK 06 |
2 | ||
| 90201-79006 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.82 MARK 06,T=2.82,MARK 06 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10,T=2.94,MARK 10 |
2 | ||
| 90201-79010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.94 MARK 10,T=2.94,MARK 10 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13,T=3.03,MARK 13 |
2 | ||
| 90201-79013 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.03 MARK 13,T=3.03,MARK 13 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11,T=2.97,MARK 11 |
2 | ||
| 90201-79011 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.97 MARK 11,T=2.97,MARK 11 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15,T=3.09,MARK 15 |
2 | ||
| 90201-79015 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.09 MARK 15,T=3.09,MARK 15 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09,T=2.91,MARK 09 |
2 | ||
| 90201-79009 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.91 MARK 09,T=2.91,MARK 09 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07,T=2.85,MARK 07 |
2 | ||
| 90201-79007 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=2.85 MARK 07,T=2.85,MARK 07 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17,T=3.15,MARK 17 |
2 | ||
| 90201-79017 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.15 MARK 17,T=3.15,MARK 17 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12,T=3.00,MARK 12 |
2 | ||
| 90201-79012 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.00 MARK 12,T=3.00,MARK 12 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16,T=3.12,MARK 16 |
2 | ||
| 90201-79016 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.12 MARK 16,T=3.12,MARK 16 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14,T=3.06,MARK 14 |
2 | ||
| 90201-79014 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.06 MARK 14,T=3.06,MARK 14 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22,T=3.30,MARK 22 |
2 | ||
| 90201-79022 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.30 MARK 22,T=3.30,MARK 22 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21,T=3.27,MARK 21 |
2 | ||
| 90201-79021 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.27 MARK 21,T=3.27,MARK 21 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23,T=3.33,MARK 23 |
2 | ||
| 90201-79023 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.33 MARK 23,T=3.33,MARK 23 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19,T=3.21,MARK 19 |
2 | ||
| 90201-79019 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.21 MARK 19,T=3.21,MARK 19 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18,T=3.18,MARK 18 |
2 | ||
| 90201-79018 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.18 MARK 18,T=3.18,MARK 18 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20,T=3.24,MARK 20 |
2 | ||
| 90201-79020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) T=3.24 MARK 20,T=3.24,MARK 20 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41301-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
1 | ||
| 41301-60011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41301-60011 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41301-60050 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41301-60050 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90105-10021 |
BJ7#,FJ7#,HJ75 |
8 | ||
| 90109-10091 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
5 | ||
| 90109-10091 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
5 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-35020 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41331-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-55012 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41341-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/DIFFERENTIAL LOCK |
3 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41343-55010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-35011 |
BJ7#,FJ7#,HJ75 |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-60010 |
BJ7#,FJ7#,HJ75 W/LSD |
4 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41351-25010 |
BJ7#,FJ7#,HJ75 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60030 |
BJ7#,FJ7#,HJ75 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60040 |
BJ7#,FJ7#,HJ75 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60010 |
BJ7#,FJ7#,HJ75 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60020 |
BJ7#,FJ7#,HJ75 T=1.75,T=1.70-1.80 |
2 | ||
| 41375 - HOLDER, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41375-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41375-60010 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41467 - PROTECTOR, DIFFERENTIAL LOCK CYLINDER | ||||
| 41467-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 41467-60020 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91655-60818 | ||||
| 94184-61000 | ||||
ILLUST NO. 1 OF 2(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 2(9001-0007)FZJ70,75..ARL ; (9001-0007)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#..CBR,
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9001-0007)FZJ70,75..ARL ; (9001-0007)FJ7#,FZJ70,73,75,HZJ70,73,75,PZJ7#..ARL,GCC,G
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91626-60816 | ||||
| 91651-60820 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
