HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
(8411- )BJ7#,FJ7#,HJ75..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

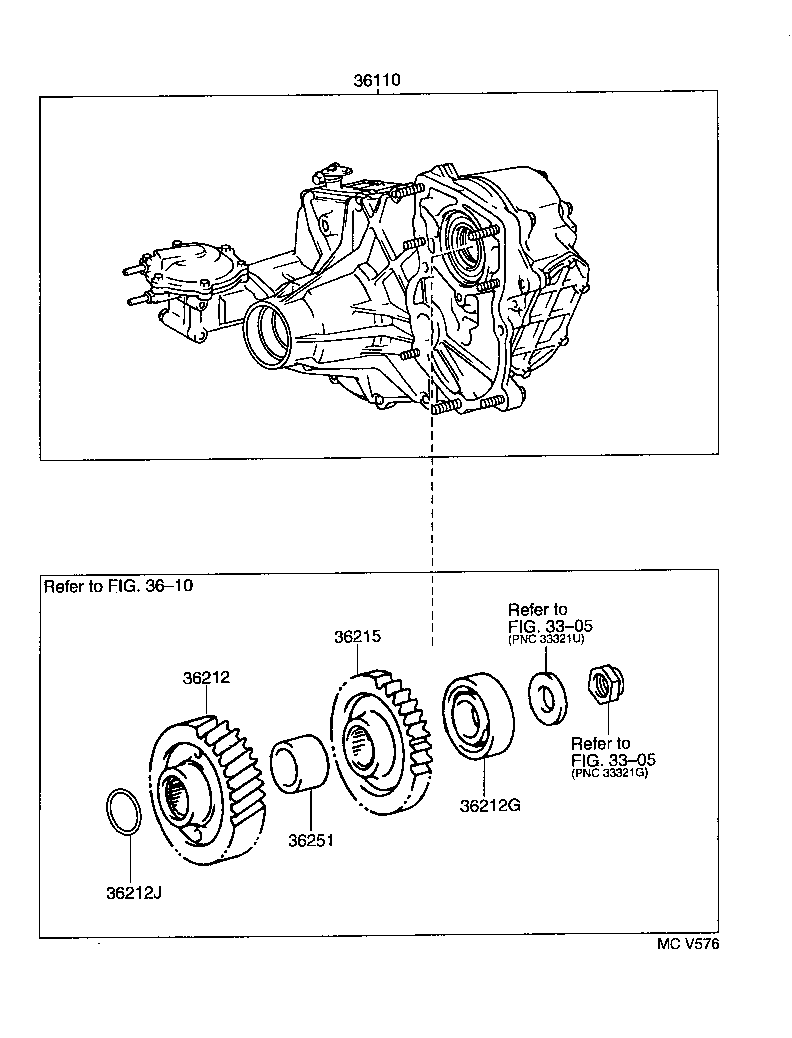

| 36110 - TRANSFER ASSY | ||||
| 36100-60600 |
BJ7#,FJ7#,HJ75..RHD..5F SMG DRIVE N=6,*MCT |
1 | ||
| 36110-60470 |
BJ7#,HJ75..RHD..5F *ELC |
1 | ||
| 36100-6A300 |
BJ7#,FJ7#,HJ75..RHD..5F SMG DRIVE N=6,*MCT |
1 | ||
| 36110-60770 |
BJ7#,HJ75..RHD..5F *ELC |
1 | ||
| 36100-6A420 |
BJ7#,FJ7#,HJ75..RHD..5F..(LX,STD)..(ARL,GEN) SMG DRIVE N=6,*MCT |
1 | ||
| 36110-6A060 |
BJ7#,FJ7#,HJ75..RHD..5F..(ARL,GEN) SMG DRIVE N=6,*ELC |
1 | ||
| 36100-6A421 |
BJ7#,FJ7#,HJ75..RHD..5F..(LX,STD)..(ARL,GEN) SMG DRIVE N=6,*MCT |
1 | ||
| 36110-6A061 |
BJ7#,FJ7#,HJ75..RHD..5F..(ARL,GEN) SMG DRIVE N=6,*ELC |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| 36212-60041 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60050 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 36251-60030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 36251-60030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM W/MECHANICAL WINCH |
1 | ||
| 36251-60030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| Linked diagrams | ||||
| 3305 | ||||
| 3610 | ||||
(9001-0701)HJ75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 3609 | ||||
| 3610 | ||||
(9001-9208)FJ7#,FZJ7#,HJ75..MTM ; (9001-0701)HZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 3609 | ||||
| 3610 | ||||
