HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(8411-8510)BJ7#,FJ7#,HJ75..MTM ; (8510- )BJ70,73,75,FJ7#,HJ75..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04318 - BOOSTER KIT, CLUTCH | ||||
| 04318-60020 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 04318-60040 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) |
1 | ||
| 31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER | ||||
| 31440-60070 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) |
1 | ||
| 31440B - PISTON, BOOSTER(FOR CLUTCH BOOSTER) | ||||
| 44642-87502 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440C - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER) | ||||
| 44635-12480 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440D - ROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER) | ||||
| 44606-12520 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440F - RING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER) | ||||
| 44628-28120 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440G - RING, E(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 96160-01000 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 31440H - GASKET, CLUTCH BOOSTER BRACKET | ||||
| 44785-14010 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 31449 - COVER, CLUTCH BOOSTER PISTON | ||||
| 31449-60010 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 31458 - BOOT, CLUTCH BOOSTER PISTON COVER | ||||
| 31458-60010 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 31458A - SEPARATOR, AIR CLEANER(FOR CLUTCH BOOSTER) | ||||
| 44672-22120 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||

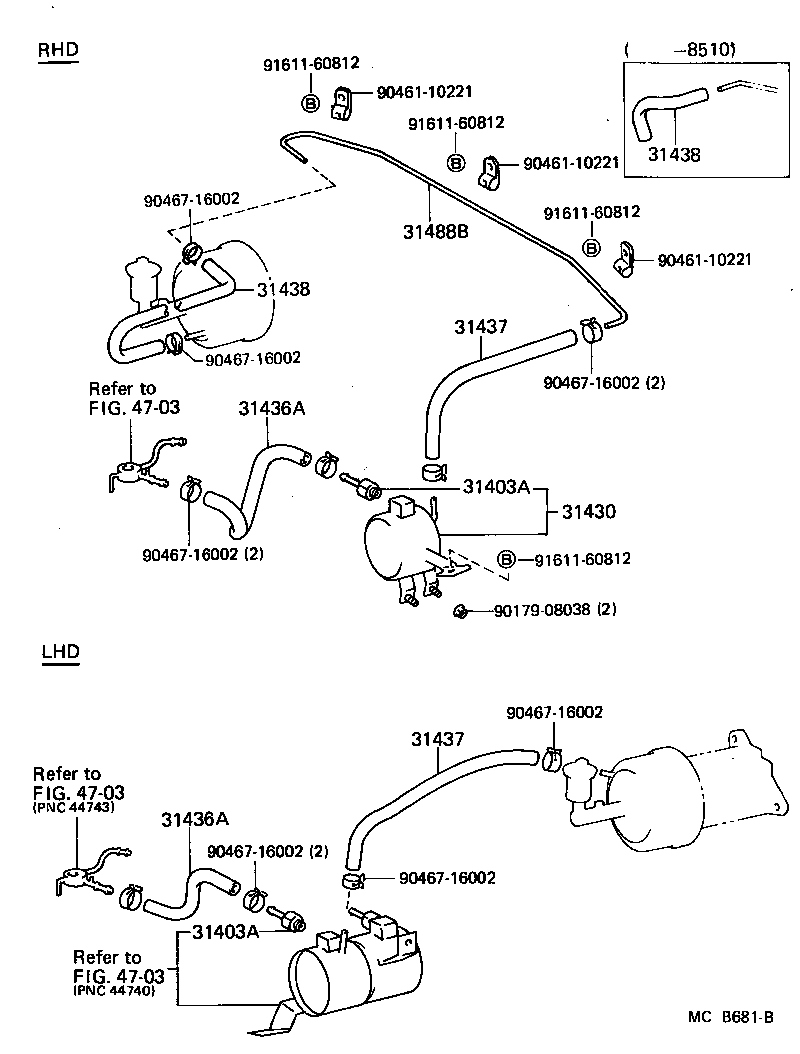

ILLUST NO. 2 OF 2(8411- )HJ75..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31403A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31403A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31430 - RESERVOIR ASSY, CLUTCH VACUUM | ||||
| 31430-60050 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60050 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31437-60110 |
BJ70,73,75 |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60050 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31437-60110 |
BJ70,73,75 |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09380 |
BJ70,73,75..RHD |
1 | ||
| 95441-09440 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31438-60050 |
BJ70,73,75..RHD |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09380 |
BJ70,73,75..RHD |
1 | ||
| 95441-09440 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31438-60050 |
BJ70,73,75..RHD |
1 | ||
| 31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31436-60030 |
HJ75..RHD |
1 | ||
| 95441-09320 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31436-60030 |
HJ75..RHD |
1 | ||
| 95441-09320 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 31488B - TUBE, VACUUM HOSE TO VACUUM HOSE | ||||
| 31488-60060 |
HJ75..RHD |
1 | ||
| 31488-60110 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-10221 | ||||
| 90467-16002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 4703 | ||||

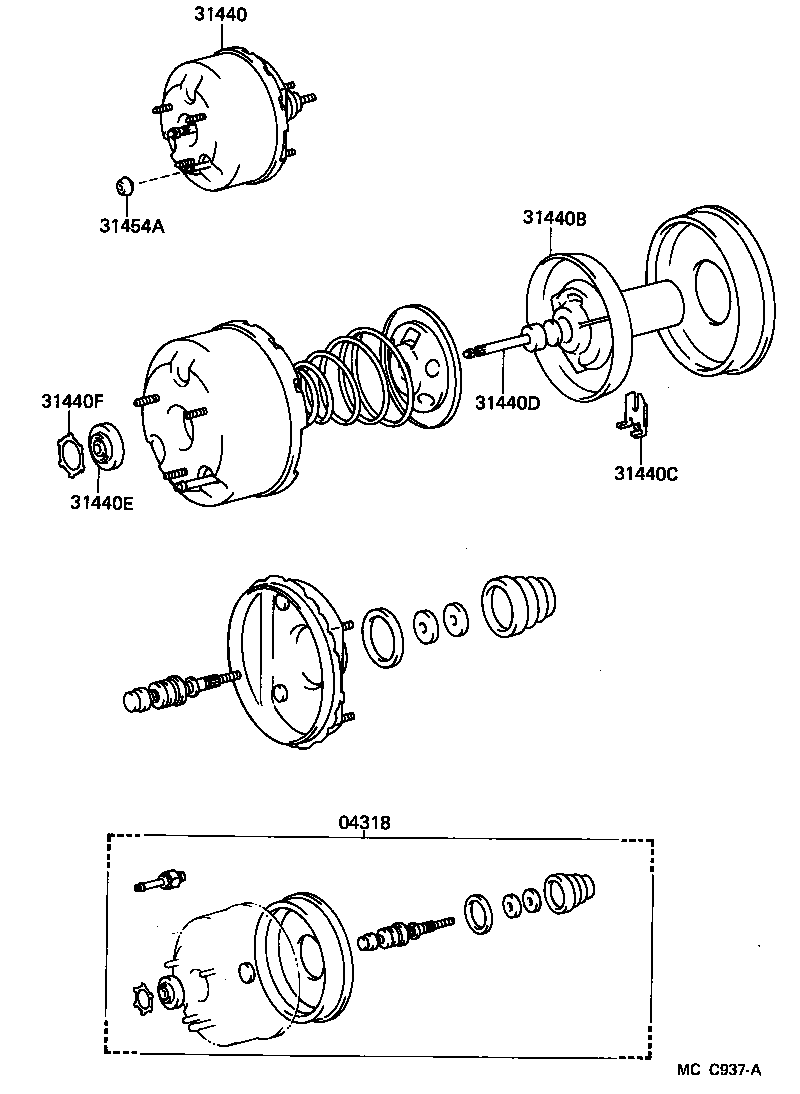

ILLUST NO. 1 OF 2(8510- )BJ7#,FJ7#,HJ75..RHD..MTM..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04318 - BOOSTER KIT, CLUTCH | ||||
| 04318-60020 |
BJ7#,FJ7#,HJ75..MTM |
1 | ||
| 04318-60040 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) |
1 | ||
| 31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER | ||||
| 31440-60070 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) |
1 | ||
| 31440B - PISTON, BOOSTER(FOR CLUTCH BOOSTER) | ||||
| 44642-87502 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440C - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER) | ||||
| 44635-12480 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440D - ROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER) | ||||
| 44606-12520 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31440F - RING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER) | ||||
| 44628-28120 |
BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
1 | ||
| 31454A - BOOT, CLUTCH BOOSTER | ||||
| 31454-60010 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) |
1 | ||
ILLUST NO. 2 OF 2(9001-0405)HZJ70,73,75,PZJ7#..RHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
| 91611-60812 | ||||
| 96133-41500 | ||||
ILLUST NO. 1 OF 2(9001-9305)FJ75,HZJ75..RHD..ARL,GEN ; (9001-9305)FJ70,73,FZJ70,75,HZJ70,73,PZJ7#..R
