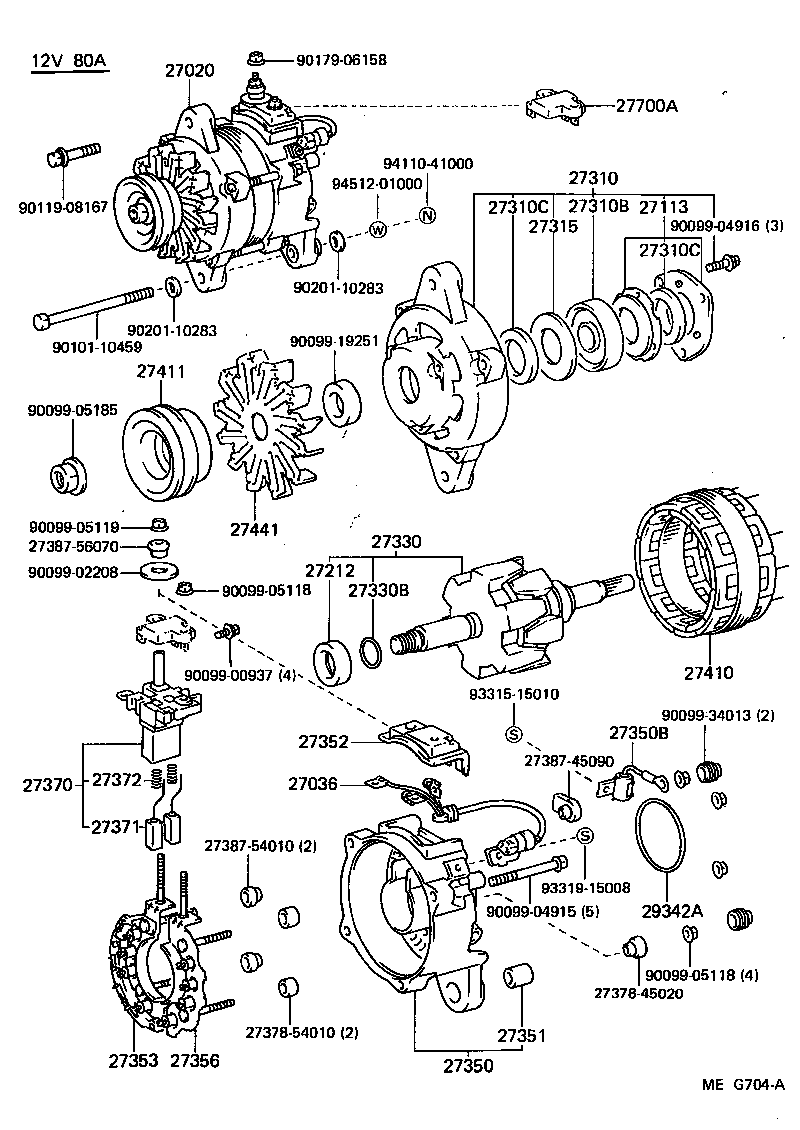

HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
(8411- )2H ; (8510- )2H..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-68120 |
2H..HJ75..ARL 12V 55A,12V 55A |
1 | ||
| 27020-56380 |
2H..HJ75 12V 40A,12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27020-68140 |
2H..HJ75..ARL,GEN 12V 80A,12V 80A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27036-54010 |
2H,2L..HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27036-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27312-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27333-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56140 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27310-56180 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27310-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 90099-10137 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
2 | ||
| 90099-02207 |
2H..HJ75..ARL,GEN 12V 80A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
2 | ||
| 90099-02207 |
2H..HJ75..ARL,GEN 12V 80A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27315-56070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27330-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 90099-07103 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27350-68040 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27350-56140 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2H..HJ75 12V 40A,55A |
1 | ||
| 90099-52082 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 90099-52082 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
1 | ||
| 27351-56013 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27388-68040 |
2H,2L..HJ75,LJ70 12V 40A,55A |
1 | ||
| 27388-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-54190 |
2H..HJ75 12V 40A,55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
2H,2L#..HJ75,LJ70 12V 40A,50A |
1 | ||
| 27370-54010 |
2H,2L..HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27370-54010 |
2H..HJ75 12V 40A |
1 | ||
| 27373-57070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27370-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A,80A |
2 | ||
| 27371-56070 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
2 | ||
| 27372-56070 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27410-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56380 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27411-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27411-68041 |
2H..HJ75 12V 40A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700-57060 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27700-64030 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 90099-14055 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90101-10459 | ||||
| 90105-10041 | ||||
| 90119-06005 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 93319-14006 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
(8510- )2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-68120 |
2H..HJ75..ARL 12V 55A,12V 55A |
1 | ||
| 27020-56380 |
2H..HJ75 12V 40A,12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27020-68140 |
2H..HJ75..ARL,GEN 12V 80A,12V 80A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27036-54010 |
2H,2L..HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27036-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27312-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27333-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56140 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27310-56180 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27310-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 90099-10137 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
2 | ||
| 90099-02207 |
2H..HJ75..ARL,GEN 12V 80A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
2 | ||
| 90099-02207 |
2H..HJ75..ARL,GEN 12V 80A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27315-56070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27330-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 90099-07103 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27350-68040 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27350-56140 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2H..HJ75 12V 40A,55A |
1 | ||
| 90099-52082 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 90099-52082 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
1 | ||
| 27351-56013 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27388-68040 |
2H,2L..HJ75,LJ70 12V 40A,55A |
1 | ||
| 27388-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
2H,2L#..HJ75,LJ70 12V 40A,50A |
1 | ||
| 27370-54010 |
2H,2L..HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 27370-54010 |
2H..HJ75 12V 40A |
1 | ||
| 27373-57070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27370-57060 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A,80A |
2 | ||
| 27371-56070 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
2 | ||
| 27372-56070 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A,80A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2H..HJ75..ARL 12V 55A |
1 | ||
| 27410-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56380 |
2H..HJ75 12V 40A,SOUTH AFRICA SPEC |
1 | ||
| 27411-68140 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27411-68041 |
2H..HJ75 12V 40A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3B,2H,2L..BJ7#,HJ75,LJ70 12V 40A,50A,55A,24V 25A |
1 | ||
| 27441-54070 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700-57060 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 27700-64030 |
2H..HJ75..ARL,GEN 12V 80A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
13BT,2H,2L#..BJ74,HJ75,LJ70 12V 40A,50A,55A |
1 | ||
| 90099-14055 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V 40A,50A,55A,80A,24V 25A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00937 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-19251 | ||||
| 90099-34013 | ||||
| 90101-10459 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
(9001-9108)2H
12V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-41000 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90105-10041 | ||||
| 90119-06005 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
