HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )2H

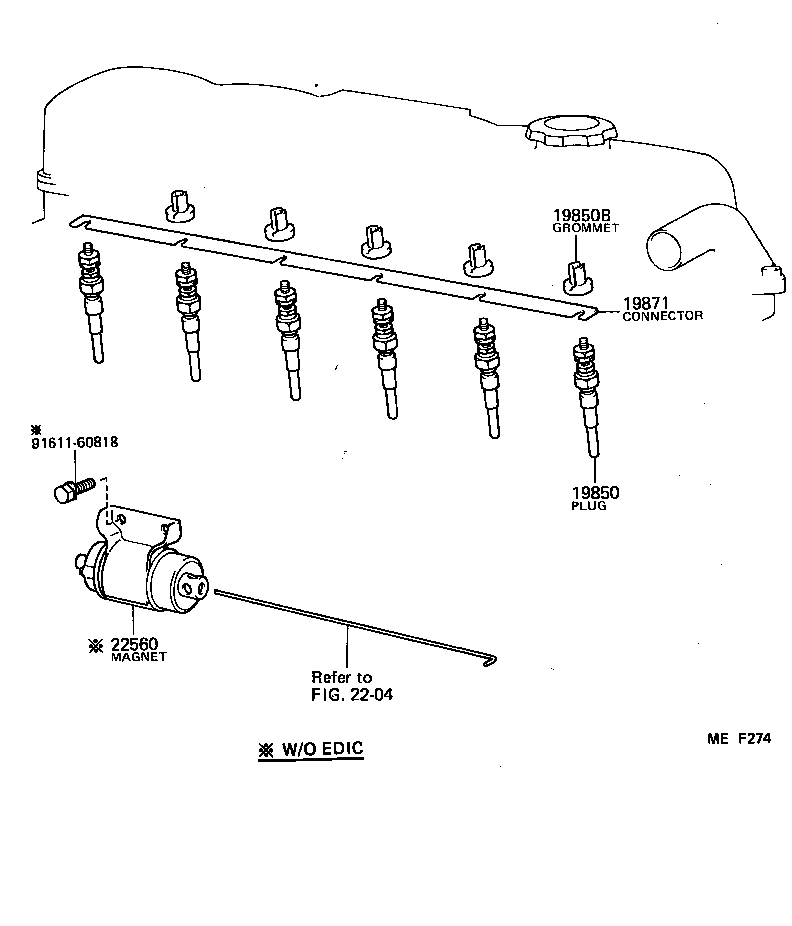

Click highlighted areas on diagram

diagram 19850 19850B 19871 2204 22560 9161160818
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-68051

2H..HJ75..ARL

*BV-GV=12V-6V,*12V-6V

 6
19850-68050

2H..HJ75..ARL

*BV-GV=12V-6V,*12V-6V

 6
19850-64031

2H..HJ75

*BV-GV=12V-11V,*12V-11V

 6
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

2H..HJ75

 5
19871 - CONNECTOR, GLOW PLUG NO.1
19871-68011

2H..HJ75

 1
Common parts
91611-60818
Linked diagrams
2204
