HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411-8608)3B..BJ70..RHD..5F..GEN ; (8411-8808)13BT,3B..BJ70,73,74..ARL ; (8808-

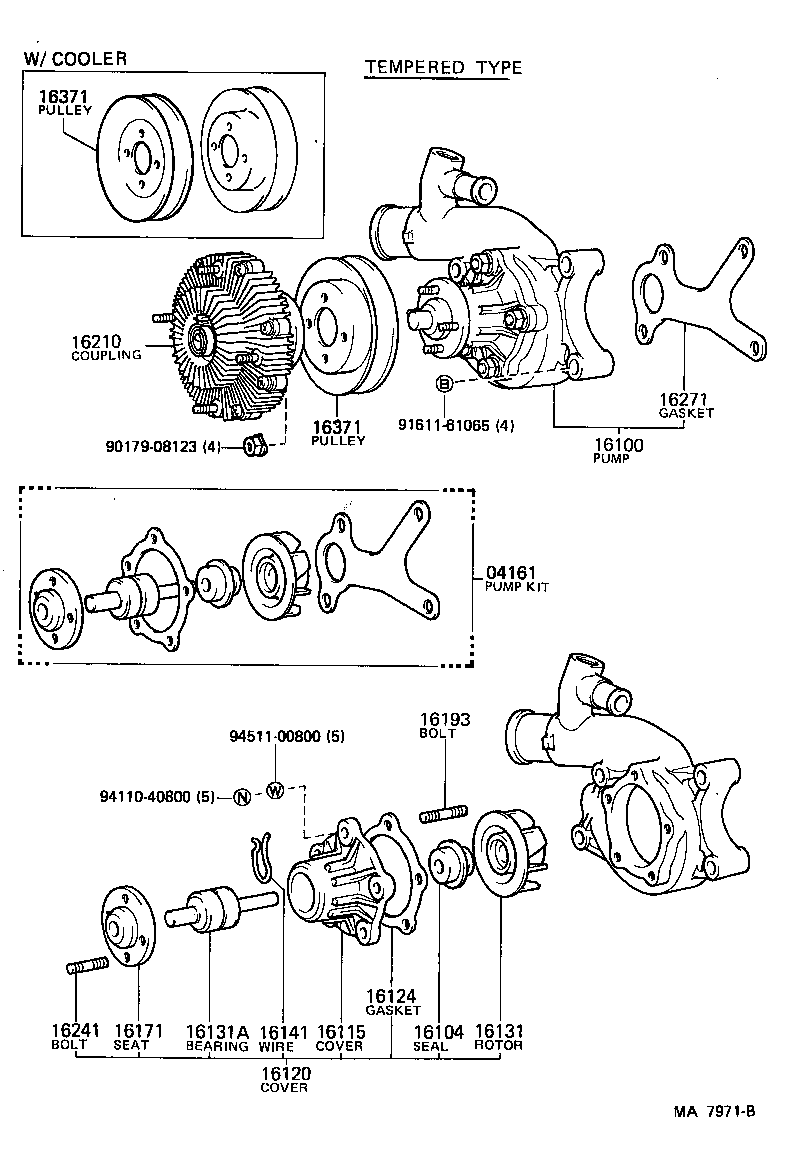

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-68010 |
2H..HJ75..ARL |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-69035 |
2H..HJ75..ARL |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41111 |
2H..HJ75 |
1 | ||
| 16104-15020 |
2H..HJ75 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-68010 |
2H..HJ75 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-35016 |
2H..HJ75..ARL |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-68010 |
2H..HJ75 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-41170 |
2H..HJ75..ARL |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-68011 |
2H..HJ75..ARL |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 90116-08112 |
2H..HJ75..ARL |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-68010 |
2H..HJ75 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-68010 |
2H..HJ75..ARL |
1 | ||
| 88452-60010 |
2H..HJ75..ARL W/COOLER |
1 | ||
| 16371-68040 |
2H..HJ75..ARL |
1 | ||
| 88452-60011 |
2H..HJ75..ARL W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-08088 | ||||
| 93220-16014 | ||||
(8411- )2H..ARL,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-68010 |
2H..HJ75..ARL |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-69035 |
2H..HJ75..ARL |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41111 |
2H..HJ75 |
1 | ||
| 16104-15020 |
2H..HJ75 |
1 | ||
| 16115 - COVER, WATER PUMP | ||||
| 16115-68010 |
2H..HJ75 |
1 | ||
| 16120 - COVER ASSY, WATER PUMP | ||||
| 16120-69015 |
2H..HJ75..ARL |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-68010 |
2H..HJ75 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-68010 |
2H..HJ75 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-35016 |
2H..HJ75..ARL |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-68010 |
2H..HJ75 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-41170 |
2H..HJ75..ARL |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-47020 |
2H..HJ75 |
5 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-68011 |
2H..HJ75..ARL |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 90116-08112 |
2H..HJ75..ARL |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-68010 |
2H..HJ75 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-68010 |
2H..HJ75..ARL |
1 | ||
| 88452-60010 |
2H..HJ75..ARL W/COOLER |
1 | ||
| 16371-68040 |
2H..HJ75..ARL |
1 | ||
| 88452-60011 |
2H..HJ75..ARL W/COOLER |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-68010 |
2H..HJ75..ARL |
1 | ||
| 88452-60010 |
2H..HJ75..ARL W/COOLER |
1 | ||
| 16371-68040 |
2H..HJ75..ARL |
1 | ||
| 88452-60011 |
2H..HJ75..ARL W/COOLER |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91611-61065 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(9001-9108)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08123 | ||||
