HJ75RP-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )PIC

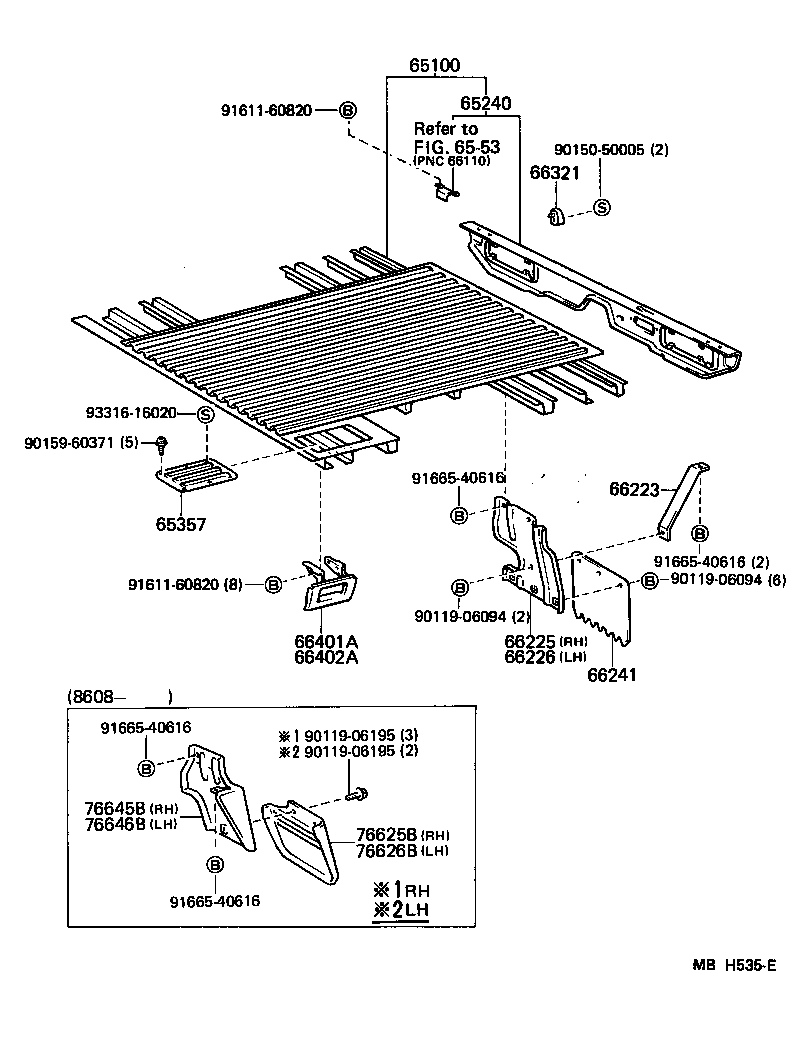

Click highlighted areas on diagram

diagram 65100 65240 65357 6553 66223 66225 66226 66241 66321 66401A 66402A 76625B 76626B 76645B 76646B 9011906094 9011906094 9011906195 9011906195 9015050005 9015960371 9161160820 9161160820 9166540616 9166540616 9166540616 9166540616 9331616020
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-90K03

BJ75,FJ75,HJ75..RHD..PIC

W/*FST

 1
65100-90K00

BJ75,FJ75,HJ75..PIC

 1
65100-90K05

BJ75,FJ75,HJ75..PIC

W/SPARE WHEEL SERVICE HOLE CAP

 1
65100-90K03

BJ75,FJ75,HJ75..RHD..PIC..(ARL,GEN)

W/*FST

 1
65100-90K08

BJ75,FJ75,HJ75..PIC

 1
65100-90K05

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

W/SPARE WHEEL SERVICE HOLE CAP

 1
65100-90K19

BJ75,FJ75,HJ75..RHD..PIC..(ARL,GEN)

W/*FST,HEAVY DUTY PACKAGE

 1
65100-90K16

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

HEAVY DUTY PACKAGE

 1
65100-90K18

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

W/SPARE WHEEL,HEAVY DUTY

 1
65100-90K13

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

W/SPARE WHEEL SERVICE HOLE CAP

 1
65100-90K11

BJ75,FJ75,HJ75..RHD..PIC..(ARL,GEN)

W/*FST

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-90K00

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

 1
65240-90K03

BJ75,FJ75,HJ75..PIC

W/SPARE WHEEL SERVICE

 1
65240-90K00

BJ75,FJ75,HJ75..PIC

 1
65240-90K03

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

W/SPARE WHEEL SERVICE

 1
65357 - COVER, FRONT FLOOR CORNER
65357-90K00

BJ75,FJ75,HJ75..PIC

 2
65357-90K02

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

HEAVY DUTY PACKAGE

 2
66223 - STAY, REAR FENDER REAR PLATE
66235-90K00

BJ75,FJ75,HJ75..PIC

 2
66225 - SUPPORT, REAR MUDGUARD, RH
66251-90K00

BJ75,FJ75,HJ75..PIC

 1
66226 - SUPPORT, REAR MUDGUARD, LH
66252-90K00

BJ75,FJ75,HJ75..PIC

 1
66241 - MUDGUARD, REAR
66241-90K00

BJ75,FJ75,HJ75..PIC

 2
66321 - BUMPER, GATE RUBBER
66321-95406

BJ75,FJ75,HJ75..PIC

 2
66321-95406

BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME)

 2
66401A - PANEL SUB-ASSY, DECK SIDE STEP, RH
66401-90K00

BJ75,FJ75,HJ75..PIC

 2
66402A - PANEL SUB-ASSY, DECK SIDE STEP, LH
66402-90K00

BJ75,FJ75,HJ75..PIC

 2
Common parts
90119-06094
90119-06195
90150-50005
90159-60371
91611-60820
91665-40616
93316-16020
Linked diagrams
6553

(9001-0701)FJ75,FZJ75,79,HJ75,HZJ75,79,PZJ75..PIC

Click highlighted areas on diagram

diagram 5153 65100 65241 65357 66110D 66235 66241 66251C 66252B 66321 66321 66401A 66402A 76625B 76626B 76645B 76646B 9011906615 9011906615 9011906615 9011906615 9011906615 9011906615 9011906729 9011906729 9011906729 9015050005 9015960371 91611G0820 91611G0820 9331316020
Part # Description Qty Price
Common parts
90119-06615
90119-06729
90150-50005
90159-60371
91611-G0820
93313-16020
Linked diagrams
5153
