HJ75RP-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )RHD

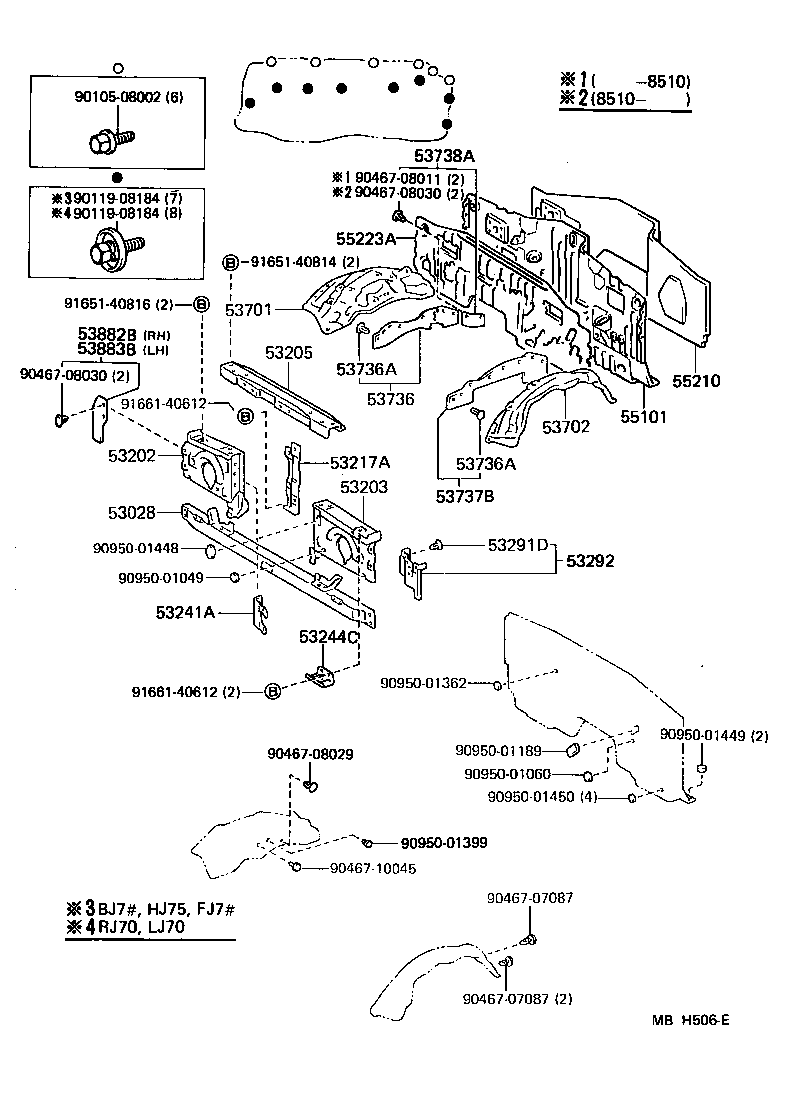

Click highlighted areas on diagram

diagram 53028 53202 53203 53205 53217A 53241A 53244C 53291D 53292 53701 53702 53736 53736A 53736A 53737B 53738A 53882B 53883B 55101 55210 55223A 9010508002 9011908184 9011908184 9046707087 9046707087 9046708011 9046708029 9046708030 9046708030 9046710045 9095001049 9095001060 9095001189 9095001362 9095001399 9095001448 9095001449 9095001450 9165140814 9165140816 9166140612 9166140612
Part # Description Qty Price
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-90K03

BJ7#,FJ7#,HJ75

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-90K01

BJ7#,FJ7#,HJ75

 1
53202-90K05

BJ7#,FJ7#,HJ75

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-90K07

BJ7#,FJ7#,HJ75

 1
53203-90K01

BJ7#,FJ7#,HJ75

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-90K02

BJ7#,FJ7#,HJ75

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-90K02

BJ7#,FJ7#,HJ75

 1
53241A - GUIDE, SIDE WIND, RH
53241-90K02

BJ7#,HJ75

 1
53241-90K00

BJ7#,HJ75

 1
53291D - CLIP, RADIATOR SUPPORT TO FRAME
90467-09030

BJ7#,FJ7#,HJ75

 3
90467-09030

BJ7#,FJ7#,HJ75,LJ70,RJ70

 3
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-90K00

BJ7#,FJ7#,HJ75..RHD

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-90K18

HJ75..RHD

 1
53701-90K58

HJ75..RHD

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-90K71

HJ75..RHD

 1
53702-90L42

HJ75..RHD..(ARL,GEN)

 1
53736 - SEAL, FRONT FENDER APRON, RH
53737-90K01

BJ7#,FJ7#,HJ75

 1
53737-90K03

BJ7#,FJ7#,HJ75

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08030

BJ7#,FJ7#,HJ75,LJ70,RJ70

 17
90467-08011

BJ7#,FJ7#,HJ75,LJ70,RJ70

 17
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08030

BJ7#,FJ7#,HJ75,LJ70,RJ70

 17
90467-08011

BJ7#,FJ7#,HJ75,LJ70,RJ70

 17
53737B - SEAL, FRONT FENDER APRON, LH
53737-90K03

BJ7#,FJ7#,HJ75

 1
53737-90K01

BJ7#,FJ7#,HJ75

 1
53738A - SEAL, FRONT FENDER APRON, REAR RH
53738-90K01

FJ7#,HJ75

 1
53738-90K03

FJ7#;HJ75..ARL,GEN

 1
53738-90K01

FJ7#;HJ75..ARL,GEN

 1
55101 - PANEL SUB-ASSY, DASH
55101-90K28

FJ7#,HJ75..RHD

 1
55101-90K27

FJ7#,HJ75..RHD

W/CLUTCH BOOSTER

 1
55101-90437

FJ7#,HJ75..RHD..MTM..(ARL,GEN)

W/CLUTCH BOOSTER

 1
55101-90L25

BJ70,73,75..RHD

 1
55101-90L13

FJ7#,HJ75..RHD..MTM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-90K02

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
55210-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
Common parts
90105-08002
90119-08184
90467-07087
90467-08011
90467-08029
90467-08030
90467-10045
90950-01049
90950-01060
90950-01189
90950-01362
90950-01399
90950-01448
90950-01449
90950-01450
91651-40814
91651-40816
91661-40612

ILLUST NO. 1 OF 2(9001-0701)RHD

Click highlighted areas on diagram

diagram 53028 53201 53201 53201 53201 53202 53203 53205 53209B 53217A 53275 53276 53277A 53278A 53285B 53286B 53292 53701 53702 53736 53737B 53738F 53825A 53882F 53882F 53882F 53882G 53883B 53883G 55101 55133A 55134A 55210 55223A 55225 9046707132 9046707132 9046708011 9046708030 9046708030 9046708030 9046708030 9046708030 9046708186 904671001601 9046713035 9095001049 9095001448 9162140612 9162140814 9165140614 9165140616 9165140616 9165160616 9165160816 9166140612
Part # Description Qty Price
Common parts
90467-07132
90467-08011
90467-08030
90467-08186
90467-1001601
90467-13035
90950-01049
90950-01448
91621-40612
91621-40814
91651-40614
91651-40616
91651-60616
91651-60816
91661-40612

ILLUST NO. 1 OF 2(9001-0701)FJ7#,FZJ70,73,74,75,HZJ70,71,75,78,79,KZJ7#,LJ7#,PZJ70,75,RJ7#..LHD ; (9

Click highlighted areas on diagram

diagram 53028 53201 53202 53203 53205 53209B 53217A 53285B 53286B 53291 53701 53702 53736 53737B 53738F 53825A 53882F 53882F 53882G 53883B 53883G 55101 55133A 55134A 55210 55223A 55225 9017906161 9046707132 9046707132 9046708011 9046708030 9046708030 9046708030 9046708030 9046708030 9046708030 9046708186 904671001601 9046713035 9095001049 9095001448 9161160612 9162140612 9162140814 9165140614 9165160616 9165160816
Part # Description Qty Price
Common parts
90179-06161
90467-07132
90467-08011
90467-08030
90467-08186
90467-1001601
90467-13035
90950-01049
90950-01448
91611-60612
91621-40612
91621-40814
91651-40614
91651-60616
91651-60816

ILLUST NO. 2 OF 2(9001-0701)RHD

Click highlighted areas on diagram

diagram 53713F 9011908184 9011908184 9015960510 9018906006 9046708029 9046708029 9046708029 9046708029 904671004512 904671004512 9095001001 9095001027 9095001027 9095001189 9095001399 9095001449 9095001959 9151160816 9161160612 9161160612 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812
Part # Description Qty Price
Common parts
90119-08184
90159-60510
90189-06006
90467-08029
90467-1004512
90950-01001
90950-01027
90950-01189
90950-01399
90950-01449
90950-01959
91511-60816
91611-60612
91611-B0812

ILLUST NO. 2 OF 2(9001-0701)FJ7#,FZJ70,73,74,75,HZJ70,71,75,78,79,KZJ7#,LJ7#,PZJ70,75,RJ7#..LHD ; (9

Click highlighted areas on diagram

diagram 53713F 9011908184 9011908184 9015960510 9018906006 9033320001 9046708029 9046708029 9046708029 904671004512 904671004512 9095001001 9095001027 9095001027 9095001189 9095001399 9095001449 9095001959 9095006035 9151160816 9161160612 9161160612 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812 91611B0812
Part # Description Qty Price
Common parts
90119-08184
90159-60510
90189-06006
90333-20001
90467-08029
90467-1004512
90950-01001
90950-01027
90950-01189
90950-01399
90950-01449
90950-01959
90950-06035
91511-60816
91611-60612
91611-B0812
