HJ75RP-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )2H

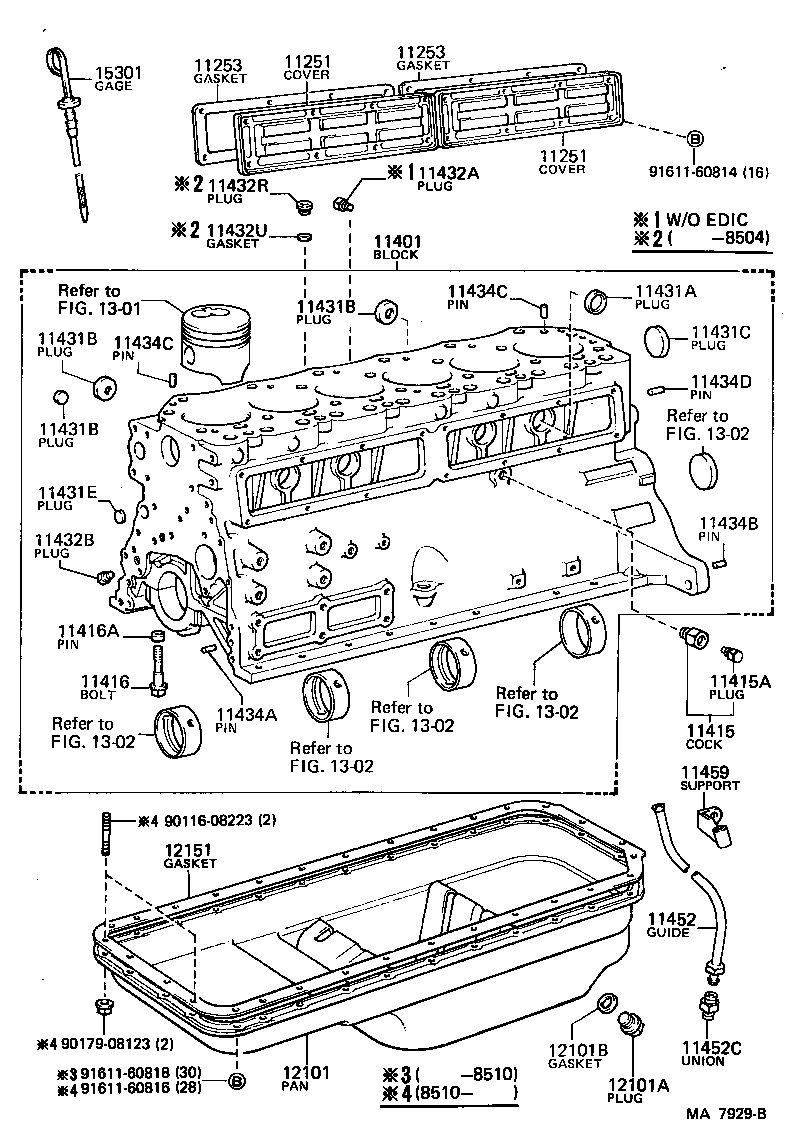

Click highlighted areas on diagram

diagram 11251 11251 11253 11253 11401 11415 11415A 11416 11416A 11431A 11431B 11431B 11431B 11431C 11431E 11432A 11432B 11432R 11432U 11434A 11434B 11434C 11434C 11434D 11452 11452C 11459 12101 12101A 12101B 12151 1301 1302 1302 1302 1302 1302 15301 9011608223 9017908123 9161160814 9161160816 9161160818
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11251-68010

2H..HJ75

 2
11251 - COVER, VALVE PUSH ROD
11251-68010

2H..HJ75

 2
11253 - GASKET, VALVE PUSH ROD COVER
11253-68010

2H..HJ75

 2
11253 - GASKET, VALVE PUSH ROD COVER
11253-68010

2H..HJ75

 2
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69195

2H..HJ75

 1
11401-69196

2H..HJ75

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

2H..HJ75

 1
96431-53828

2H..HJ75

 1
96431-53828

2H..HJ75

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

2H..HJ75

 1
96432-23814

2H..HJ75

L=24

 1
96432-23814

2H..HJ75

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-13001

2H..HJ75

*13-1.5PX81-25

 14
90105-14039

2H..HJ75

*14-1.5PX81-25

 14
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-18001

2H..HJ75

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

2H..HJ75

OD=35

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

2H..HJ75

OD=35,ID=12

 2
96411-42000

2H..HJ75

OD=20

 1
90331-35003

2H..HJ75

OD=35,ID=14

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

2H..HJ75

OD=35,ID=12

 2
96411-42000

2H..HJ75

OD=20

 1
90331-35003

2H..HJ75

OD=35,ID=14

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-35002

2H..HJ75

OD=35,ID=12

 2
96411-42000

2H..HJ75

OD=20

 1
90331-35003

2H..HJ75

OD=35,ID=14

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2H..HJ75

OD=50

 2
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90330-21012

2H..HJ75

OD=21

 2
96411-11800

2H..HJ75

OD=18

 2
96411-41800

2H..HJ75

OD=18

 2
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51003

2H..HJ75

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-10004

2H..HJ75

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-10204

2H..HJ75

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08054

2H..HJ75

L=23,OD=8,L=23,OD=8

 1
90250-08120

2H..HJ75

L=18,OD=8,L=18,OD=8

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08054

2H..HJ75

L=23,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

2H..HJ75

L=15,OD=8,RR,L=15,OD=8

 1
90250-06037

2H..HJ75

L=12,OD=6,FR,L=12,OD=6

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

2H..HJ75

L=15,OD=8,RR,L=15,OD=8

 1
90250-06037

2H..HJ75

L=12,OD=6,FR,L=12,OD=6

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08054

2H..HJ75

L=23,OD=8

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-68020

2H..HJ75

 1
11409-68010

2H..HJ75

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
96335-11600

2H..HJ75

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-68020

2H..HJ75

 1
11459-68010

2H..HJ75

 1
12101 - PAN SUB-ASSY, OIL
12101-68011

2H..HJ75

 1
12101-68012

2H..HJ75

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2H..HJ75

OD=18

 1
90341-18089

2H..HJ75

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

2H..HJ75

 1
90430-18244

2H..HJ75

 1
90430-18013

2H..HJ75

 1
12151 - GASKET, OIL PAN
12151-68010

2H..HJ75

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-68010

2H..HJ75

 1
15301-68020

2H..HJ75

 1
Common parts
90116-08223
90179-08123
91611-60814
91611-60816
91611-60818
Linked diagrams
1301
1302
