HJ75RP-MRN (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9108)2H

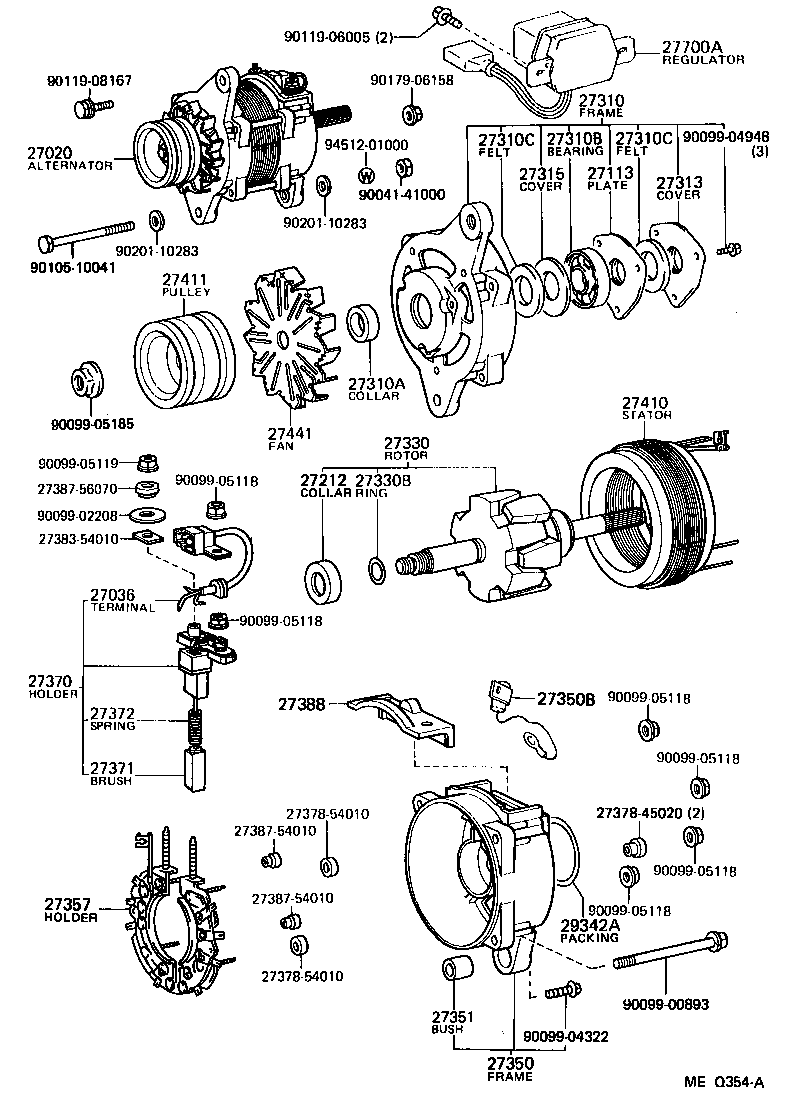

Click highlighted areas on diagram

12V 40A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738754010 2738754010 2738756070 27388 27410 27411 27441 27700A 29342A 9004141000 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011906005 9011908167 9017906158 9020110283 9020110283 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56380

2H..HJ75

12V 40A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56100

2H..HJ75

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

2H..HJ75

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

2H..HJ75

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56140

2H..HJ75

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

2H..HJ75

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

2H..HJ75

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2H..HJ75

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2H..HJ75

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

2H..HJ75

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

2H..HJ75

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56140

2H..HJ75

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

2H..HJ75

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56140

2H..HJ75

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

2H..HJ75

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

2H..HJ75

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190

2H..HJ75

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56100

2H..HJ75

 1
27371 - BRUSH, ALTERNATOR
27371-56070

2H..HJ75

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

2H..HJ75

 2
27388 - COVER, ALTERNATOR BRUSH
27388-56100

2H..HJ75

 1
27410 - STATOR ASSY, ALTERNATOR
27410-54190

2H..HJ75

 1
27411 - PULLEY, ALTERNATOR
27411-56380

2H..HJ75

 1
27441 - FAN, ALTERNATOR
27441-56090

2H..HJ75

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15030

22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA

 1
29342A - PACKING, VACUUM PUMP
90099-14055

2H..HJ75

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90041-41000
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-06005
90119-08167
90179-06158
90201-10283
94512-01000
