HJ75RP-MR (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )2H

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16323 16323B 16323B 16325 16331 16331A 16333 16341 16343 16361 16361 16365 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470R 16471 16472 16547 16548 16549 16571 16571A 16571A 16572 16572A 16572A 16582 16611 16701 9017908026 9017908096 9017908123 9020108036 9034112002 9043012005 9043012221 9043020004 9043020004 9092901090 9161160820 9161160822 9161160835 9161161018 9161161025 9165140816 9165140816 9165140816 9165140835 9418040600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
99555-40090

2H..HJ75

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96111-10330

2H..HJ75

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96111-10330

2H..HJ75

 2
16323 - HOUSING, WATER INLET
16323-68020

2H..HJ75

 1
16323B - PLUG(FOR WATER INLET HOUSING)
90341-20002

2H..HJ75

 2
16323B - PLUG(FOR WATER INLET HOUSING)
90341-20002

2H..HJ75

 2
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-68020

2H..HJ75

 1
16331 - OUTLET, WATER
16331-68011

2H..HJ75

 1
16331A - THERMOSTAT
90916-03026

2H..HJ75

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16333-68010

2H..HJ75

 1
16341 - GASKET, WATER OUTLET
16341-68010

2H..HJ75

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-68010

2H..HJ75

 1
16361 - FAN
16361-41070

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16361-68040

2H..HJ75..GEN

 1
16361 - FAN
16361-41070

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16361-68040

2H..HJ75..GEN

 1
16365 - SPACER, FAN
16365-60020

2H..HJ75..GEN

 1
16381 - BAR, FAN BELT ADJUSTING
16381-68010

2H..HJ75

 1
16400 - RADIATOR ASSY
16400-68070

2H..HJ75

 1
16400-68120

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2H..HJ75

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2H..HJ75

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

2H..HJ75

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-68030

2H..HJ75..ARL,GEN

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2H..HJ75..ARL,GEN

*H,L=300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2H..HJ75..ARL,GEN

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2H..HJ75..ARL,GEN

 2
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

2H..HJ75

*H,L=220

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-68020

2H..HJ75..ARL,GEN

 1
16401-42010

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16472 - HOSE, BREATHER
85338-30010

2H..HJ75..ARL,GEN

 1
16571 - HOSE, RADIATOR, INLET
16571-68050

2H..HJ75

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
90467-42001

2H..HJ75..ARL,GEN

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
90467-42001

2H..HJ75..ARL,GEN

 2
16572 - HOSE, RADIATOR, OUTLET
16572-68050

2H..HJ75

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC,PIPE SIDE

 1
90460-50016

2H..HJ75..ARL,GEN

RADIATOR SIDE

 1
96111-10560

2H..HJ75..ARL,GEN

WATER PUMP SIDE

 1
90467-42001

2H..HJ75..5F..GEN

SOUTH AFRICA,RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC,PIPE SIDE

 1
90460-50016

2H..HJ75..ARL,GEN

RADIATOR SIDE

 1
96111-10560

2H..HJ75..ARL,GEN

WATER PUMP SIDE

 1
90467-42001

2H..HJ75..5F..GEN

SOUTH AFRICA,RADIATOR SIDE

 1
16582 - BRACKET, RADIATOR, NO.1
16582-68010

2H..HJ75

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-68020

2H..HJ75..ARL,GEN

 1
16701 - SHROUD SUB-ASSY, FAN
16711-68040

2H..HJ75

 1
Common parts
90179-08026
90179-08096
90179-08123
90201-08036
90341-12002
90430-12005
90430-12221
90430-20004
90929-01090
91611-60820
91611-60822
91611-60835
91611-61018
91611-61025
91651-40816
91651-40835
94180-40600
Linked diagrams
1605

(8503-8510)2H..5F..GEN ; (8510- )2H..SA

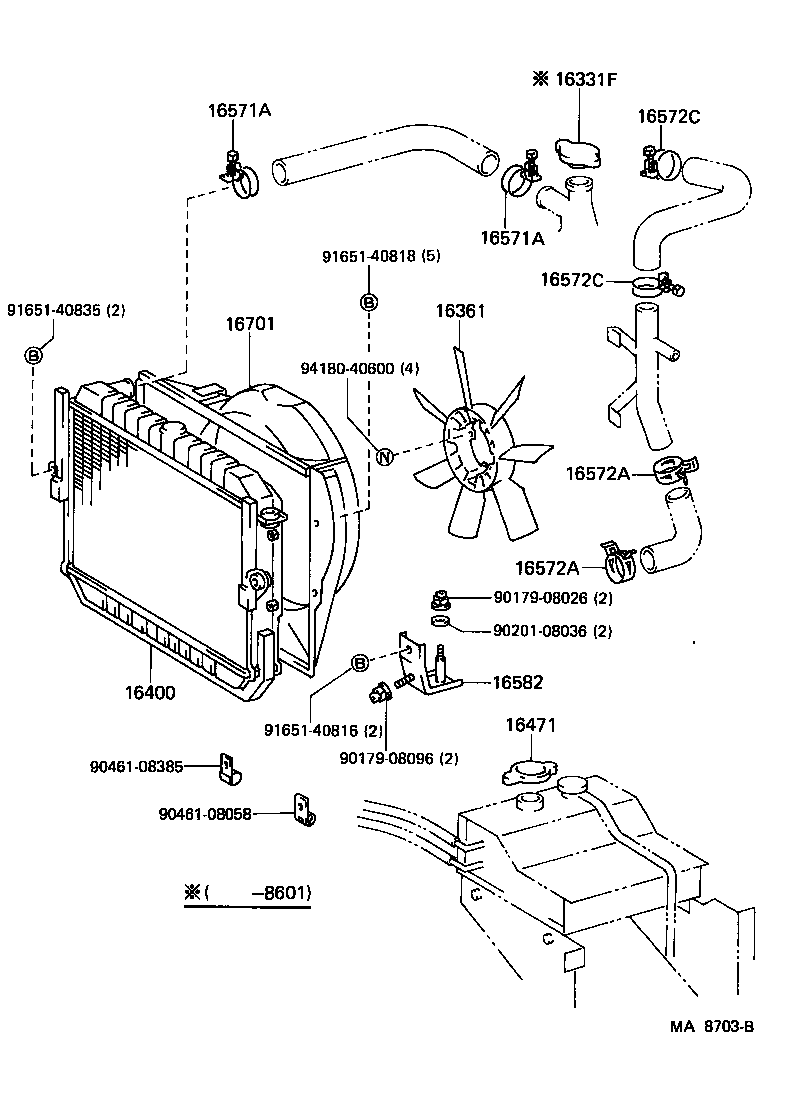

Click highlighted areas on diagram

diagram 16331F 16361 16400 16471 16571A 16571A 16572A 16572A 16572C 16572C 16582 16701 9017908026 9017908096 9020108036 9046108058 9046108385 9165140816 9165140818 9165140835 9418040600
Part # Description Qty Price
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16361 - FAN
16361-41070

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16361-68040

2H..HJ75..GEN

 1
16400 - RADIATOR ASSY
16400-68070

2H..HJ75

 1
16400-68120

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-68020

2H..HJ75..ARL,GEN

 1
16401-42010

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
90467-42001

2H..HJ75..ARL,GEN

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 1
90467-42001

2H..HJ75..ARL,GEN

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC,PIPE SIDE

 1
90460-50016

2H..HJ75..ARL,GEN

RADIATOR SIDE

 1
96111-10560

2H..HJ75..ARL,GEN

WATER PUMP SIDE

 1
90467-42001

2H..HJ75..5F..GEN

SOUTH AFRICA,RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC,PIPE SIDE

 1
90460-50016

2H..HJ75..ARL,GEN

RADIATOR SIDE

 1
96111-10560

2H..HJ75..ARL,GEN

WATER PUMP SIDE

 1
90467-42001

2H..HJ75..5F..GEN

SOUTH AFRICA,RADIATOR SIDE

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90460-50016

2H..HJ75..5F..GEN

SOUTH AFRICA SPEC

 2
16582 - BRACKET, RADIATOR, NO.1
16582-68010

2H..HJ75

 2
16701 - SHROUD SUB-ASSY, FAN
16711-68040

2H..HJ75

 1
Common parts
90179-08026
90179-08096
90201-08036
90461-08058
90461-08385
91651-40816
91651-40818
91651-40835
94180-40600
