HJ61RG-PZXQ (1985)
Toyota Land Cruiser

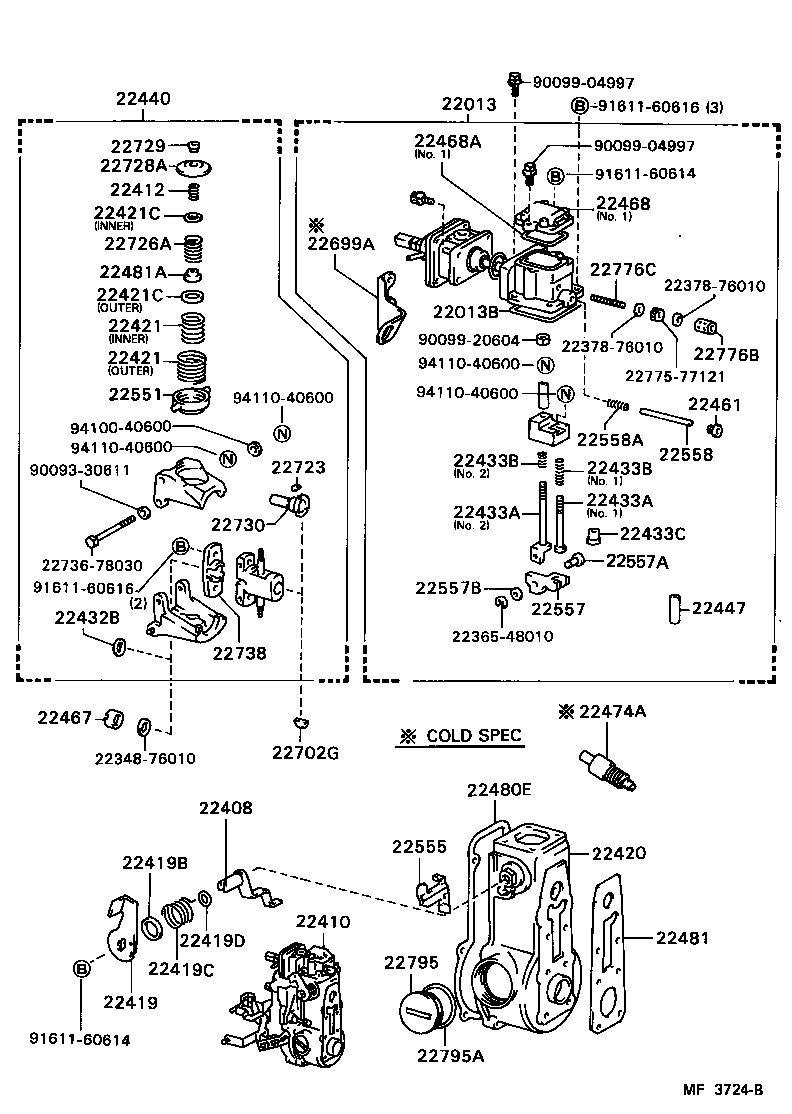

(8510- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER | ||||
| 22013-68152 |
12HT..HJ61..4FC |
1 | ||
| 22013-68150 |
12HT..HJ61..4FC |
1 | ||
| 22013B - RING, O(FOR FULLROAD STOPPER HOUSING) | ||||
| 90099-14039 |
12HT..HJ61 |
1 | ||
| 22408 - ARM, STOPPER | ||||
| 22408-68110 |
12HT..HJ61 |
1 | ||
| 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL | ||||
| 22410-68190 |
12HT..HJ61..4FC |
1 | ||
| 22410-68170 |
12HT..HJ61..4FC W/PS |
1 | ||
| 22410-68170 |
12HT..HJ61..4FC |
1 | ||
| 22412 - SPRING, MECHANICAL GOVERNOR | ||||
| 22412-78030 |
12HT..HJ61 |
2 | ||
| 22419 - LEVER, STOP | ||||
| 22419-68150 |
12HT..HJ61 |
1 | ||
| 22419B - WASHER, PLATE(FOR STOPPER LEVER) | ||||
| 90099-02315 |
12HT..HJ61 T=0.10,T=0.1 |
1 | ||
| 90099-02316 |
12HT..HJ61 T=0.05,T=0.2 |
1 | ||
| 90099-01521 |
12HT..HJ61 T=0.50,T=0.5 |
1 | ||
| 22419C - SPRING, RETURN(FOR STOPPER LEVER) | ||||
| 22432-68110 |
12HT..HJ61 |
1 | ||
| 22419D - RING, O(FOR STOPPER LEVER) | ||||
| 90099-14005 |
12HT..HJ61 |
1 | ||
| 22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR | ||||
| 22017-68150 |
12HT..HJ61 |
1 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
12HT..HJ61 OUTER |
2 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
12HT..HJ61 OUTER |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22737-78033 |
12HT..HJ61 T=0.40,INNER,T=0.4 |
2 | ||
| 22737-78035 |
12HT..HJ61 T=0.50,OUTER,T=0.5 |
2 | ||
| 22737-78032 |
12HT..HJ61 T=0.60,OUTER,T=0.6 |
2 | ||
| 22737-78030 |
12HT..HJ61 T=0.20,OUTER,T=0.2 |
2 | ||
| 22737-78034 |
12HT..HJ61 T=0.60,INNER,T=0.6 |
2 | ||
| 22737-78036 |
12HT..HJ61 T=0.55,INNER,T=0.55 |
2 | ||
| 22737-78031 |
12HT..HJ61 T=0.40,OUTER,T=0.4 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22737-78033 |
12HT..HJ61 T=0.40,INNER,T=0.4 |
2 | ||
| 22737-78035 |
12HT..HJ61 T=0.50,OUTER,T=0.5 |
2 | ||
| 22737-78032 |
12HT..HJ61 T=0.60,OUTER,T=0.6 |
2 | ||
| 22737-78030 |
12HT..HJ61 T=0.20,OUTER,T=0.2 |
2 | ||
| 22737-78034 |
12HT..HJ61 T=0.60,INNER,T=0.6 |
2 | ||
| 22737-78036 |
12HT..HJ61 T=0.55,INNER,T=0.55 |
2 | ||
| 22737-78031 |
12HT..HJ61 T=0.40,OUTER,T=0.4 |
2 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-78031 |
12HT..HJ61 NO.1 |
1 | ||
| 22433-68150 |
12HT..HJ61 NO.2 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-78031 |
12HT..HJ61 NO.1 |
1 | ||
| 22433-68150 |
12HT..HJ61 NO.2 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22411-78030 |
12HT..HJ61 NO.1 |
1 | ||
| 22411-68150 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22411-78030 |
12HT..HJ61 NO.1 |
1 | ||
| 22411-68150 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22433C - BUSH(FOR ADAPTER SCREW) | ||||
| 22554-78030 |
12HT..HJ61 |
1 | ||
| 22440 - FLYWEIGHT SUB-ASSY | ||||
| 22720-68150 |
12HT..HJ61..4FC |
1 | ||
| 22447 - COLLAR | ||||
| 22454-68150 |
12HT..HJ61 |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
12HT..HJ61 GOVERNOR COVER |
2 | ||
| 22129-78030 |
12HT..HJ61 FUEL ROAD STOPPER HOUSING |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22458-78030 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22458-68150 |
12HT..HJ61 NO.2 |
1 | ||
| 22458-68150 |
12HT..HJ61 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14069 |
12HT..HJ61 NO.2 |
1 | ||
| 90099-14081 |
12HT..HJ61 NO.1 |
1 | ||
| 22480E - GASKET, GOVERNOR COVER | ||||
| 22774-68150 |
12HT..HJ61..4FC |
1 | ||
| 22481 - GASKET | ||||
| 22442-78030 |
12HT..HJ61 |
1 | ||
| 22481A - SEAT, SPRING, INNER | ||||
| 22481-58230 |
12HT..HJ61 |
2 | ||
| 22555 - BRACKET, STOPPER | ||||
| 22555-68150 |
12HT..HJ61 |
1 | ||
| 22557 - CAM, FULL STOP | ||||
| 22557-68150 |
12HT..HJ61..4FC |
1 | ||
| 22557-68152 |
12HT..HJ61..4FC |
1 | ||
| 22557A - PIN, CONNECTING(FOR FULL STOP CAM) | ||||
| 22423-78030 |
12HT..HJ61 |
1 | ||
| 22557B - WASHER, PLATE(FOR CONNECTING PIN) | ||||
| 90099-01334 |
12HT..HJ61 T=0.05,T=0.05 |
1 | ||
| 90093-30610 |
12HT..HJ61 T=0.20,T=0.20 |
1 | ||
| 90099-01505 |
12HT..HJ61 T=0.10,T=0.10 |
1 | ||
| 22558 - SHAFT, SLIDING BLOCK | ||||
| 22558-68150 |
12HT..HJ61 |
1 | ||
| 22558A - SPRING(FOR SLIDING BLOCK SHAFT) | ||||
| 22411-58271 |
12HT..HJ61 |
1 | ||
| 22411-68160 |
12HT..HJ61..4FC |
1 | ||
| 22726A - SPRING, SPEED CONTROL | ||||
| 22726-58230 |
12HT..HJ61 |
2 | ||
| 22728A - GUIDE, SPRING | ||||
| 22728-78030 |
12HT..HJ61 |
2 | ||
| 22729 - NUT, ADJUSTING(FOR FLYWEIGHT) | ||||
| 22729-78030 |
12HT..HJ61 |
2 | ||
| 22738 - BUSHING, GUIDE(FOR FLYWEIGHT) | ||||
| 22738-78030 |
12HT..HJ61 |
1 | ||
| 22776B - NUT, CAP(FOR SCREW STOPPER) | ||||
| 22437-58230 |
12HT..HJ61 |
1 | ||
| 22469-68160 |
12HT..HJ61..4FC |
1 | ||
| 22776C - SCREW, STOPPER | ||||
| 22776-78034 |
12HT..HJ61 |
1 | ||
| 22795 - PLUG, SCREW | ||||
| 22795-77121 |
12HT..HJ61 |
1 | ||
| 22795A - WASHER, SCREW PLUG | ||||
| 22561-78030 |
12HT..HJ61 |
1 | ||
| Common parts | ||||
| 22348-76010 | ||||
| 22365-48010 | ||||
| 22378-76010 | ||||
| 22736-78030 | ||||
| 22775-77121 | ||||
| 90093-30611 | ||||
| 90099-04997 | ||||
| 90099-20604 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94100-40600 | ||||
| 94110-40600 | ||||

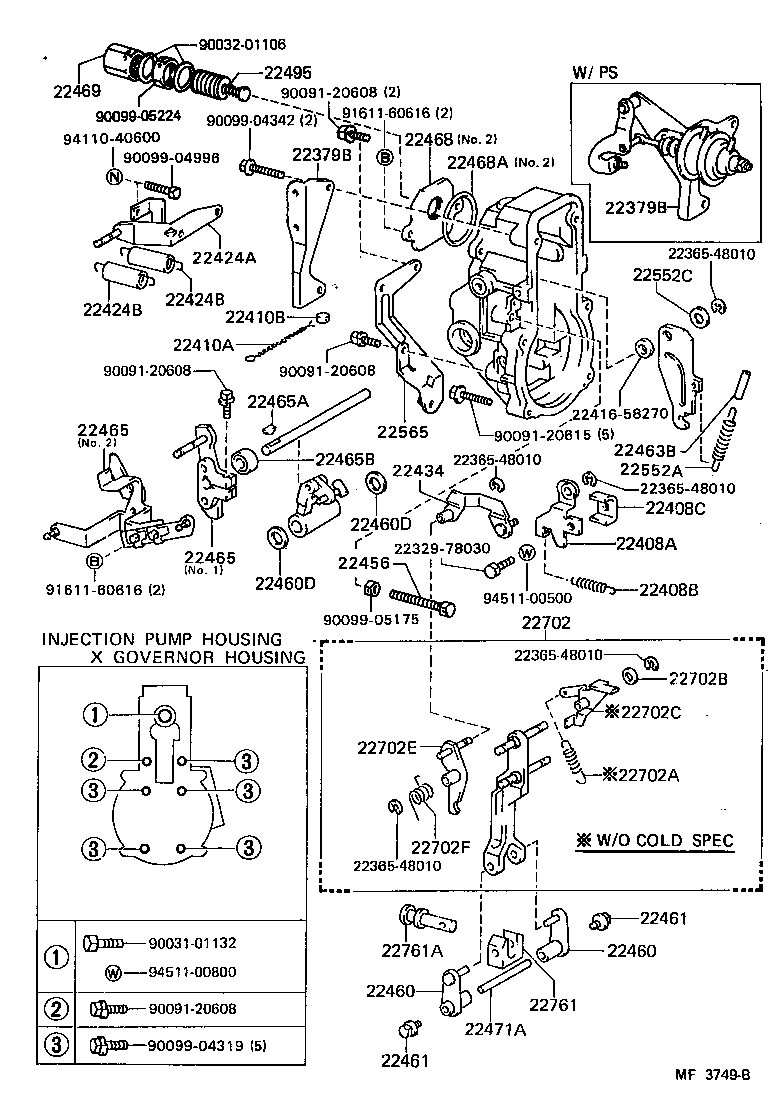

(8510- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22379B - BRACKET, STOP WIRE | ||||
| 22579-68170 |
12HT..HJ61..4FC W/PS |
1 | ||
| 22579-68190 |
12HT..HJ61 |
1 | ||
| 22379B - BRACKET, STOP WIRE | ||||
| 22579-68170 |
12HT..HJ61..4FC W/PS |
1 | ||
| 22579-68190 |
12HT..HJ61 |
1 | ||
| 22408A - ARM SUB-ASSY(FOR CONTROL LACK) | ||||
| 22408-68120 |
12HT..HJ61 |
1 | ||
| 22408-68120 |
12HT..HJ61..4FC |
1 | ||
| 22408-68150 |
12HT..HJ61 |
1 | ||
| 22408C - NUT, ARM | ||||
| 22428-78030 |
12HT..HJ61 |
1 | ||
| 22410A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-36010 |
12HT..HJ61 |
4 | ||
| 22410B - SEAL, LEAD | ||||
| 22354-77050 |
12HT..HJ61 |
4 | ||
| 22424A - ARM, SPRING | ||||
| 22424-68160 |
12HT..HJ61..4FC W/PS |
1 | ||
| 22424-68160 |
12HT..HJ61 |
1 | ||
| 22424-68160 |
12HT..HJ61..4FC |
1 | ||
| 22434 - SHACKLE | ||||
| 22016-68110 |
12HT..HJ61..4FC |
1 | ||
| 22016-68150 |
12HT..HJ61 |
1 | ||
| 22016-68110 |
12HT..HJ61 |
1 | ||
| 22456 - SCREW, STOP | ||||
| 22443-68150 |
12HT..HJ61 |
1 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
12HT..HJ61 |
2 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
12HT..HJ61 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22737-78035 |
12HT..HJ61 T=0.50,T=0.50 |
2 | ||
| 22737-78036 |
12HT..HJ61 T=0.55,T=0.55 |
2 | ||
| 22737-78038 |
12HT..HJ61 T=0.65,T=0.65 |
2 | ||
| 22416-78030 |
12HT..HJ61 T=0.75,T=0.75 |
2 | ||
| 22737-78037 |
12HT..HJ61 T=0.60,T=0.60 |
2 | ||
| 22416-78031 |
12HT..HJ61 T=0.80,T=0.80 |
2 | ||
| 22737-78039 |
12HT..HJ61 T=0.70,T=0.70 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22737-78035 |
12HT..HJ61 T=0.50,T=0.50 |
2 | ||
| 22737-78036 |
12HT..HJ61 T=0.55,T=0.55 |
2 | ||
| 22737-78038 |
12HT..HJ61 T=0.65,T=0.65 |
2 | ||
| 22416-78030 |
12HT..HJ61 T=0.75,T=0.75 |
2 | ||
| 22737-78037 |
12HT..HJ61 T=0.60,T=0.60 |
2 | ||
| 22416-78031 |
12HT..HJ61 T=0.80,T=0.80 |
2 | ||
| 22737-78039 |
12HT..HJ61 T=0.70,T=0.70 |
2 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
12HT..HJ61 GOVERNOR COVER |
2 | ||
| 22129-78030 |
12HT..HJ61 FUEL ROAD STOPPER HOUSING |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
12HT..HJ61 GOVERNOR COVER |
2 | ||
| 22129-78030 |
12HT..HJ61 FUEL ROAD STOPPER HOUSING |
1 | ||
| 22463B - TUBE, RUBBER | ||||
| 90099-33134 |
12HT..HJ61 |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-68120 |
12HT..HJ61..4FC NO.2,W/PS |
1 | ||
| 22701-68190 |
12HT..HJ61..4FC NO.1,W/PS |
1 | ||
| 22701-68190 |
12HT..HJ61..4FC NO.1 |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-68120 |
12HT..HJ61..4FC NO.2,W/PS |
1 | ||
| 22701-68190 |
12HT..HJ61..4FC NO.1,W/PS |
1 | ||
| 22701-68190 |
12HT..HJ61..4FC NO.1 |
1 | ||
| 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) | ||||
| 90099-13013 |
12HT..HJ61 |
1 | ||
| 22465B - SEAL, OIL(FOR ADJUSTING LEVER) | ||||
| 90099-15022 |
12HT..HJ61 |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22458-78030 |
12HT..HJ61..4FC NO.2 |
1 | ||
| 22458-68150 |
12HT..HJ61 NO.2 |
1 | ||
| 22458-68150 |
12HT..HJ61 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14069 |
12HT..HJ61 NO.2 |
1 | ||
| 90099-14081 |
12HT..HJ61 NO.1 |
1 | ||
| 22469 - COVER SUB-ASSY, PLATE | ||||
| 22469-68150 |
12HT..HJ61 |
1 | ||
| 22471A - SHAFT, LEVER SUPPORTING | ||||
| 22558-78031 |
12HT..HJ61 |
1 | ||
| 22558-78031 |
12HT..HJ61..4FC |
1 | ||
| 22558-68150 |
12HT..HJ61 |
1 | ||
| 22495 - LEVER SUB-ASSY, STOP | ||||
| 22495-68150 |
12HT..HJ61 |
1 | ||
| 22552C - WASHER(FOR CAM PLATE BUSH) | ||||
| 22416-78032 |
12HT..HJ61 T=0.2,T=0.2 |
1 | ||
| 22416-78034 |
12HT..HJ61 T=0.4,T=0.4 |
1 | ||
| 22416-78033 |
12HT..HJ61 T=0.3,T=0.3 |
1 | ||
| 22416-78035 |
12HT..HJ61 T=0.5,T=0.5 |
1 | ||
| 22565 - BRACKET, GOVERNOR | ||||
| 22565-68150 |
12HT..HJ61 |
1 | ||
| 22702 - LEVER ASSY, FLOATING | ||||
| 22702-78030 |
12HT..HJ61 |
1 | ||
| 22702-68150 |
12HT..HJ61 |
1 | ||
| 22702-78030 |
12HT..HJ61..4FC |
1 | ||
| 22702A - SPRING, FLOATING ARM | ||||
| 22432-78032 |
12HT..HJ61 W/O COLD SPEC |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| 90099-01334 |
12HT..HJ61 T=0.05,T=0.05 |
1 | ||
| 90099-30610 |
12HT..HJ61 T=0.20,T=0.20 |
1 | ||
| 90099-01505 |
12HT..HJ61 T=0.10,T=0.10 |
1 | ||
| 90099-01519 |
12HT..HJ61 T=0.40,T=0.40 |
1 | ||
| 22702C - ARM, FLOATING | ||||
| 22014-78030 |
12HT..HJ61 W/O COLD SPEC |
1 | ||
| 22702E - LEVER SUB-ASSY, CONTROL | ||||
| 22490-78030 |
12HT..HJ61 |
1 | ||
| 22490-68160 |
12HT..HJ61..4FC |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| 22432-78033 |
12HT..HJ61 |
1 | ||
| 22761 - SLIDER(FOR SPEED CONTROL) | ||||
| 22761-78030 |
12HT..HJ61 |
1 | ||
| 22761A - SHAFT, SLIDING WEIGHT | ||||
| 22752-78030 |
12HT..HJ61 L=31.9,L=31.9 |
1 | ||
| 22752-78032 |
12HT..HJ61 L=31.5,L=31.5 |
1 | ||
| 22752-78031 |
12HT..HJ61 L=31.7,L=31.7 |
1 | ||
| 22752-78034 |
12HT..HJ61 L=31.1,L=31.1 |
1 | ||
| 22752-78033 |
12HT..HJ61 L=31.3,L=31.3 |
1 | ||
| 22752-78035 |
12HT..HJ61 L=30.9,L=30.9 |
1 | ||
| 22752-78036 |
12HT..HJ61 L=30.7,L=30.7 |
1 | ||
| Common parts | ||||
| 22329-78030 | ||||
| 22365-48010 | ||||
| 22416-58270 | ||||
| 90031-01132 | ||||
| 90032-01106 | ||||
| 90091-20608 | ||||
| 90091-20615 | ||||
| 90099-04319 | ||||
| 90099-04342 | ||||
| 90099-04996 | ||||
| 90099-05175 | ||||
| 90099-05224 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
