HJ61RG-PNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BJ60,HJ6#

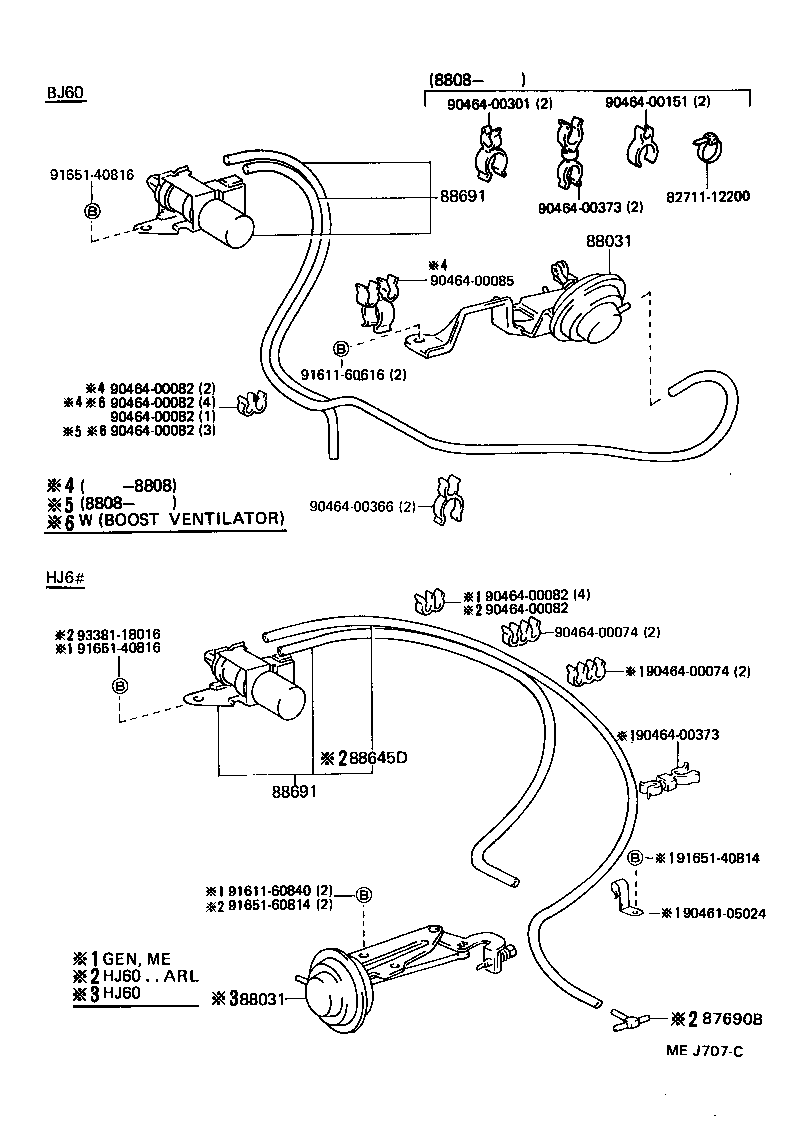

Click highlighted areas on diagram

diagram 8271112200 87690B 88031 88031 88645D 88691 88691 9046105024 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400085 9046400151 9046400301 9046400366 9046400373 9046400373 9161160616 9161160840 9165140814 9165140816 9165140816 9165160814 9338118016
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-90A11

HJ61;HJ60..STD..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-90A11

HJ61;HJ60..STD..ARL

 1
Common parts
82711-12200
90461-05024
90464-00074
90464-00082
90464-00085
90464-00151
90464-00301
90464-00366
90464-00373
91611-60616
91611-60840
91651-40814
91651-40816
91651-60814
93381-18016
