HJ61RG-PNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-0907)

Click highlighted areas on diagram

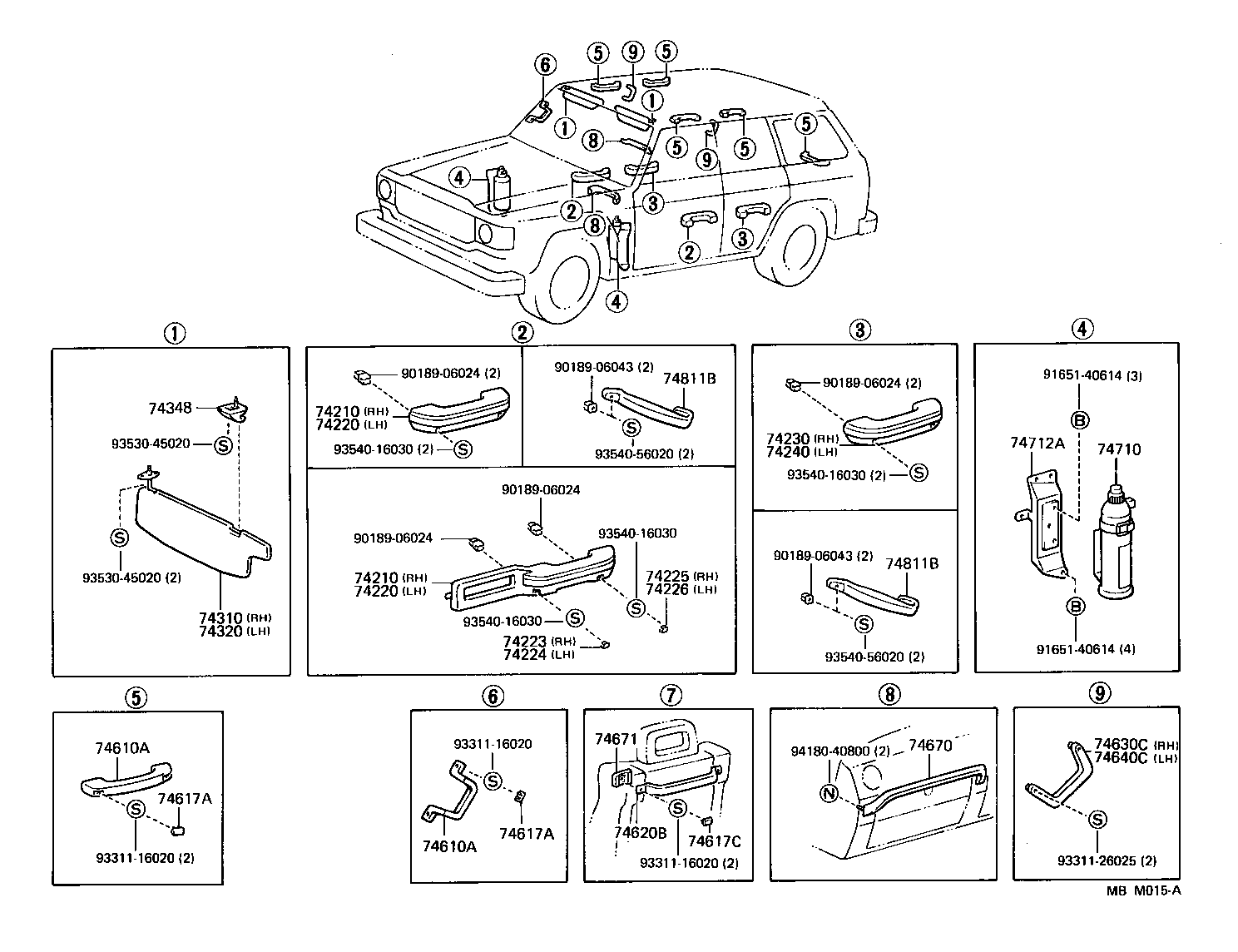

ARMREST & VISOR & ASSIST GRIP

diagram 74210 74210 74220 74220 74223 74224 74225 74226 74230 74230 74231 74232 74240 74240 74271A 74272A 74310 74320 74348 74603 74604A 74610A 74610A 74611A 74617A 74617C 74617C 74617C 74617C 74617F 74620B 74620B 74620C 74630C 74637 74638 74640C 74671 74671 74811B 9015960251 9015960367 9015960367 9015960367 9015960367 9017908241 9018906018 9018906024 9018906024 9018906024 9018906024 9018906043 9046805047 9046805047 9046805047 9331126025 9353025020 9353025020 9353045020 9353045020 9353055020 9353055020 9354016025 9354056020 93540A6030 93540A6030 93540A6030 93540A6030 9418040800
Part # Description Qty Price
Common parts
90159-60251
90159-60367
90179-08241
90189-06018
90189-06024
90189-06043
90468-05047
93311-26025
93530-25020
93530-45020
93530-55020
93540-16025
93540-56020
93540-A6030
94180-40800

(8708- )

Click highlighted areas on diagram

diagram 74210 74210 74220 74220 74223 74224 74225 74226 74230 74240 74310 74320 74348 74610A 74610A 74617A 74617A 74617C 74620B 74630C 74640C 74670 74671 74710 74712A 74811B 74811B 9018906024 9018906024 9018906024 9018906024 9018906043 9018906043 9165140614 9165140614 9331116020 9331116020 9331116020 9331126025 9353045020 9353045020 9354016030 9354016030 9354016030 9354016030 9354056020 9354056020 9418040800
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74250-90A0016

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX;FJ62,HJ60..STD..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74250-90A0003

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX

GRAY,TRIM1#

 1
74210 - ARMREST ASSY, FRONT, RH
74250-90A0016

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX;FJ62,HJ60..STD..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74250-90A0003

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74250-90A0016

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX;FJ62,HJ60..STD..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74250-90A0003

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74250-90A0016

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX;FJ62,HJ60..STD..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74250-90A0003

HJ60..LUB;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX

GRAY,TRIM1#

 1
74230 - ARMREST ASSY, REAR, RH
74250-90A0003

HJ60..LUB;FJ62..5F..GX;FJ62..5F..VX..ME;BJ60,HJ61..ARL,ME;FJ62..(4F,4FC)..(GX,VX)

GRAY,TRIM1#

 1
74250-90A0016

HJ60..LUB;HJ60..STD..ARL;FJ62..5F..VX..ME;FJ62..5F..GX..GEN;BJ60,HJ61..ARL,ME;FJ62..(4F,4FC)..(GX,VX);FJ62..5F..(GX,STD)..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74240 - ARMREST ASSY, REAR, LH
74250-90A0003

HJ60..LUB;FJ62..5F..GX;FJ62..5F..VX..ME;BJ60,HJ61..ARL,ME;FJ62..(4F,4FC)..(GX,VX)

GRAY,TRIM1#

 1
74250-90A0016

HJ60..LUB;HJ60..STD..ARL;FJ62..5F..VX..ME;FJ62..5F..GX..GEN;BJ60,HJ61..ARL,ME;FJ62..(4F,4FC)..(GX,VX);FJ62..5F..(GX,STD)..(ARL,ME)

SEPIA BROWN,TRIM4#

 1
74310 - VISOR ASSY, RH
74310-90A1008

FJ62,HJ6#..GX..ARL

IVORY,TRIM1#,4#

 1
74310-90A2408

FJ62,HJ6#..SRF..GX..ARL

W(ACCESSORY METER),IVORY,TRIM1#,4#

 1
74320 - VISOR ASSY, LH
74320-90A2108

FJ62,HJ6#..SRF..GX..ARL

W(ACCESSORY METER),IVORY,TRIM1#,4#

 1
74320-90A0908

FJ62,HJ6#..GX..ARL

IVORY,TRIM1#,4#

 1
74348 - HOLDER, VISOR
74348-1201018

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1002018

BJ60,HJ60..GX,VX;FJ62..LHD..HRF..GX;FJ62,HJ61..SRF..(GX,VX)

IVORY,TRIM1#,4#,ROOFSIDE & BACKDOOR

 4
74610-90K0008

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#,FR PILLAR

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-1002018

BJ60,HJ60..GX,VX;FJ62..LHD..HRF..GX;FJ62,HJ61..SRF..(GX,VX)

IVORY,TRIM1#,4#,ROOFSIDE & BACKDOOR

 4
74610-90K0008

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#,FR PILLAR

 1
74617A - PLUG, ASSIST GRIP
74617-1401018

BJ60,HJ60..GX,VX;FJ62..LHD..HRF..GX;FJ62,HJ61..SRF..(GX,VX)

IVORY,TRIM1#,4#,ROOFSIDE & BACKDOOR

 8
74617-1601008

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#,FR PILLAR

 2
74617A - PLUG, ASSIST GRIP
74617-1401018

BJ60,HJ60..GX,VX;FJ62..LHD..HRF..GX;FJ62,HJ61..SRF..(GX,VX)

IVORY,TRIM1#,4#,ROOFSIDE & BACKDOOR

 8
74617-1601008

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#,FR PILLAR

 2
74630C - GRIP ASSY, DOOR ASSIST, RH
74620-90A0018

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74620-90A0018

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#

 1
74670 - GRIP ASSY, INSTRUMENT ASSIST
74670-90A0103

BJ60,FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
74670-90A0106

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
Common parts
90189-06024
90189-06043
91651-40614
93311-16020
93311-26025
93530-45020
93540-16030
93540-56020
94180-40800
