HJ61RG-PNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

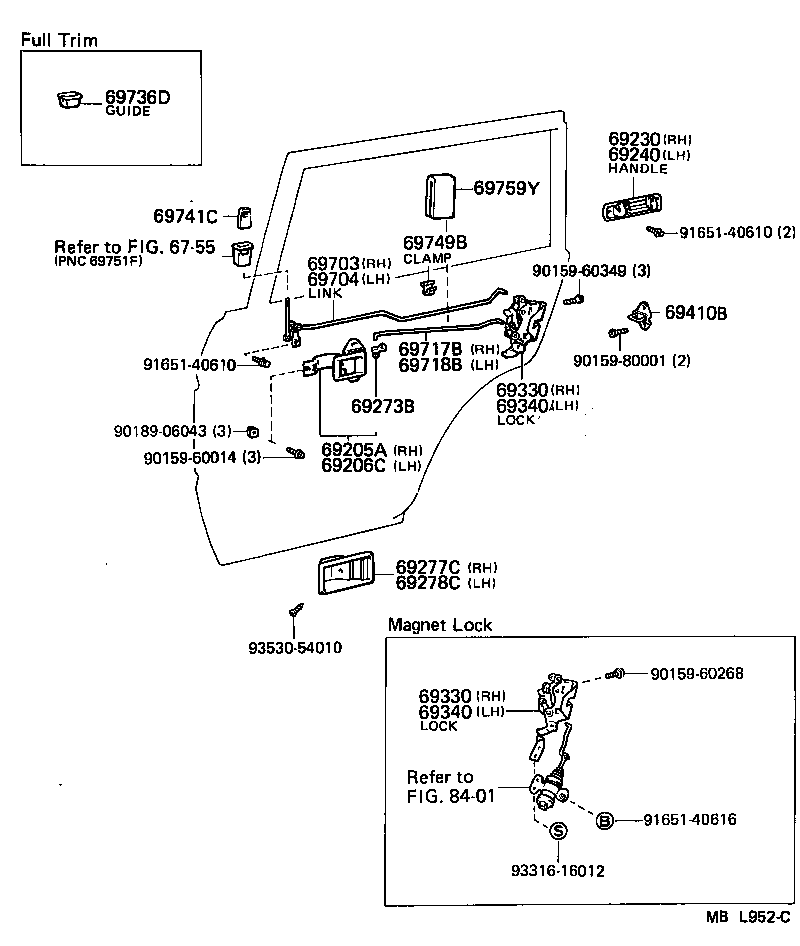

Click highlighted areas on diagram

diagram 6755 69205A 69206C 69230 69240 69273B 69277C 69278C 69330 69330 69340 69340 69410B 69703 69704 69717B 69718B 69736D 69741C 69749B 69759Y 8401 9015960014 9015960268 9015960349 9015980001 9018906043 9165140610 9165140610 9165140616 9331616012 9353054010
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20020

BJ60,FJ62,HJ6#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20020

BJ60,FJ62,HJ6#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-90A00

BJ60,FJ62,HJ6#

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-90A00

BJ60,FJ62,HJ6#

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69273-30020

BJ60,FJ62,HJ6#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-1604036

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
69277-1604023

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69277-1604023

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
69277-1604036

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-90A00

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69330-90A01

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-90A00

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69330-90A01

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-90A00

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69340-90A01

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-90A00

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69340-90A01

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-90B01

BJ60,FJ62,HJ6#

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-90A02

HJ60..ARL,GEN;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX,STD

 1
69770-90A03

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-90A02

HJ60..ARL,GEN;FJ62..VX..GEN;BJ60,FJ62,HJ61..GX,STD

 1
69780-90A03

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-90A00

BJ60,FJ62,HJ6#

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-90A00

BJ60,FJ62,HJ6#

 1
69736D - GUIDE, REAR DOOR LOCKING LINK
69736-90K00

BJ60,FJ62,HJ6#..GX,VX

 2
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-90K0006

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

BJ60,FJ62,HJ6#

 2
69759Y - SILENCER, REAR DOOR LOCK LINK
69759-30021

BJ60,FJ62,HJ6#

 2
Common parts
90159-60014
90159-60268
90159-60349
90159-80001
90189-06043
91651-40610
91651-40616
93316-16012
93530-54010
Linked diagrams
6755
8401
