HJ61RG-PNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 45044 45044A 45044B 45044B 45044B 45044B 45045 45046 45046A 45046B 45046B 45047 45450 45450D 45457 45458 45460A 45466 45473 45473 45473 45473 45475 45475 45475A 45475A 45475B 45475B 45611 45612 45700 45700A 45721B 9011908605 9025203004 9025203004 9116151250 9161961250 9166640825 9411541200 9411541200 9451201200 9538103040 9538103040 9645100600 9645100600
Part # Description Qty Price

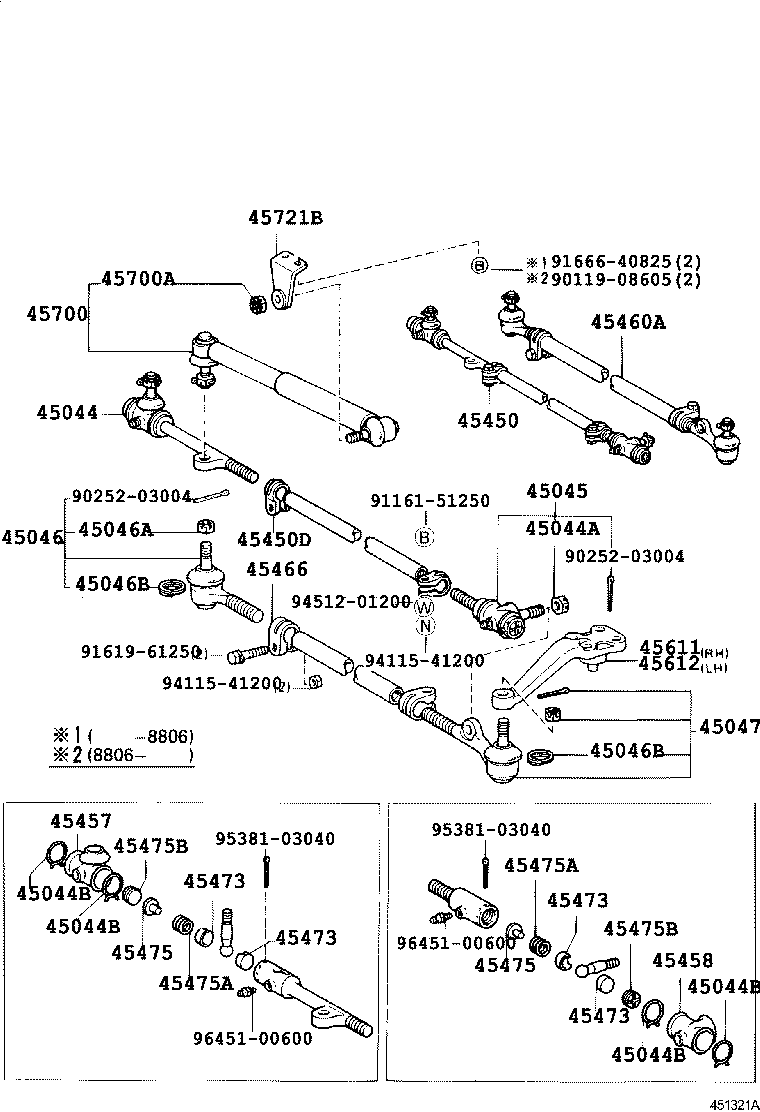

45044 - END SUB-ASSY, STEERING RELAY ROD, RH
45044-69065

BJ60,FJ62,HJ6#..RHD

 1
45044-69066

BJ60,FJ62,HJ6#..RHD

 1
45044A - NUT, CASTLE(FOR RELAY ROD)
90171-14042

BJ60,FJ62,HJ6#

 2
45044B - RING, SET(FOR RELAY ROD)
90467-32002

BJ60,FJ62,HJ6#

 4
45044B - RING, SET(FOR RELAY ROD)
90467-32002

BJ60,FJ62,HJ6#

 4
45044B - RING, SET(FOR RELAY ROD)
90467-32002

BJ60,FJ62,HJ6#

 4
45044B - RING, SET(FOR RELAY ROD)
90467-32002

BJ60,FJ62,HJ6#

 4
45045 - END SUB-ASSY, STEERING RELAY ROD, LH
45045-69045

BJ60,FJ62,HJ6#..RHD

 1
45045-69046

BJ60,FJ62,HJ6#..RHD

 1
45046 - END SUB-ASSY, TIE ROD, RH
45047-69065

BJ60,FJ62,HJ6#..RHD

 1
45047-69066

BJ60,FJ62,HJ6#..RHD

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

BJ60,FJ62,HJ6#

 2
45046B - RING, SET(FOR TIE ROD END DUST SEAL)
90522-32011

BJ60,FJ62,HJ6#

 2
45046B - RING, SET(FOR TIE ROD END DUST SEAL)
90522-32011

BJ60,FJ62,HJ6#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69106

BJ60,FJ62,HJ6#..RHD

 1
45046-69105

BJ60,FJ62,HJ6#..RHD

 1
45450 - ROD ASSY, STEERING RELAY
45450-69065

BJ60,FJ62,HJ6#..RHD

 1
45450D - CLAMP, STEERING RELAY ROD END
45466-55020

BJ60,FJ62,HJ6#

 2
45457 - SEAL, STEERING LINK DUST, RH
45457-60010

BJ60,FJ62,HJ6#..RHD

 1
45458 - SEAL, STEERING LINK DUST, LH
45458-60010

BJ60,FJ62,HJ6#..RHD

 1
45460A - ROD ASSY, TIE
45460-69095

BJ60,FJ62,HJ6#..RHD

 1
45466 - CLAMP, TIE ROD END
45466-36010

BJ60,FJ62,HJ6#

 2
45473 - SEAT, BALL STUD
45473-35010

BJ60,FJ62,HJ6#

 4
45473 - SEAT, BALL STUD
45473-35010

BJ60,FJ62,HJ6#

 4
45473 - SEAT, BALL STUD
45473-35010

BJ60,FJ62,HJ6#

 4
45473 - SEAT, BALL STUD
45473-35010

BJ60,FJ62,HJ6#

 4
45475 - SEAT, STEERING LINK JOINT SPRING
45475-35010

BJ60,FJ62,HJ6#

 2
45475 - SEAT, STEERING LINK JOINT SPRING
45475-35010

BJ60,FJ62,HJ6#

 2
45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT)
90501-45114

BJ60,FJ62,HJ6#

 2
45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT)
90501-45114

BJ60,FJ62,HJ6#

 2
45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
90340-25001

BJ60,FJ62,HJ6#

 2
45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
90340-25001

BJ60,FJ62,HJ6#

 2
45611 - ARM, STEERING KNUCKLE, RH
45611-60040

BJ60,FJ62,HJ6#

 1
45612 - ARM, STEERING KNUCKLE, LH
45612-60040

BJ60,FJ62,HJ6#

 1
45700 - DAMPER ASSY, STEERING
45700-69025

BJ60,FJ62,HJ6#

 1
45700A - NUT(FOR STEERING DAMPER)
94184-61200

BJ60,FJ62,HJ6#

 2
45721B - BRACKET, STEERING DAMPER, NO.3
45721-60030

BJ60,FJ62,HJ6#

 1
Common parts
90119-08605
90252-03004
91161-51250
91619-61250
91666-40825
94115-41200
94512-01200
95381-03040
96451-00600

(8708- )RHD

Click highlighted areas on diagram

POWER STEERING

diagram 04044 04445 04455A 44110 44251 44251A 9010512104 9017912020 9451102200 9462211200
Part # Description Qty Price

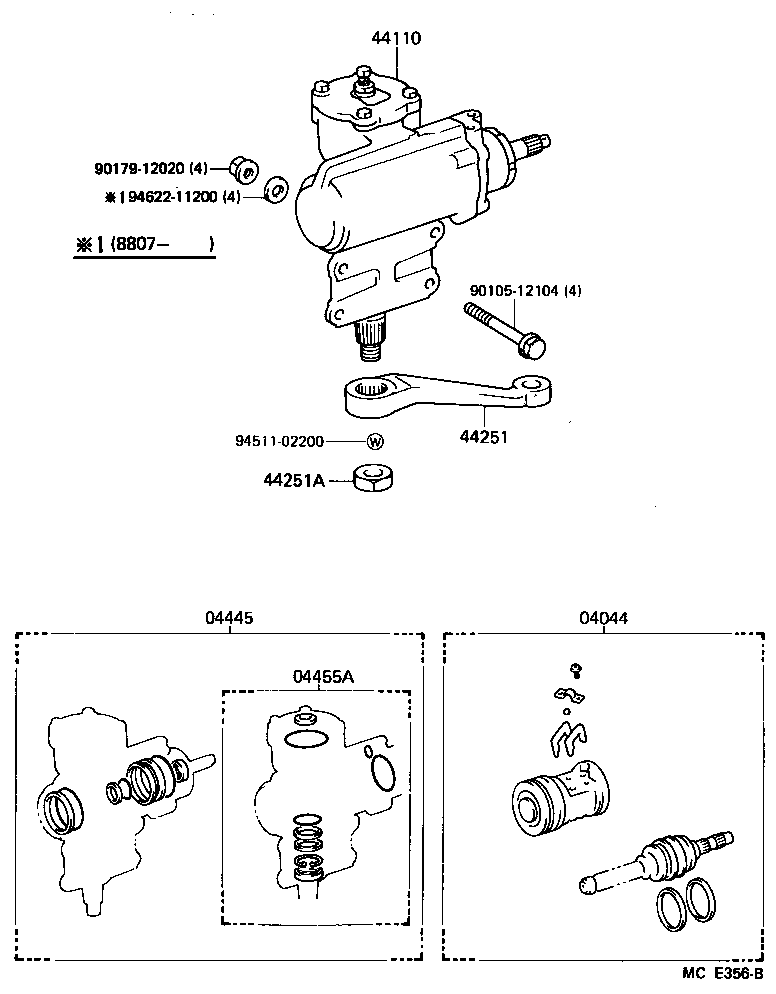

04044 - WARM KIT, POWER STEERING
04044-60140

HJ61..4FC;HJ61..5F..GX;FJ62..4FC..VX..ARL;BJ60,FJ62,HJ60..RHD..(GX,STD)

 1
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-60030

HJ60..LUB;HJ61..4FC;HJ61..5F..GX;HJ60..RHD..STD;BJ60,FJ62..GEN,ME;FJ62..4FC..VX..ARL;FJ62..(GX,STD)..ARL

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-60020

HJ60..LUB;HJ61..4FC;HJ61..5F..GX;HJ60..RHD..STD;BJ60,FJ62..GEN,ME;FJ62..4FC..VX..ARL;FJ62..(GX,STD)..ARL

 1
44110 - GEAR ASSY, POWER STEERING
44110-60150

BJ60,FJ62,HJ6#..RHD

 1
44251 - ARM, PITMAN
45411-60090

BJ60,FJ62,HJ6#

 1
44251A - NUT, CASTLE(FOR PITMAN ARM)
90170-22058

BJ60,FJ62,HJ6#

 1
Common parts
90105-12104
90179-12020
94511-02200
94622-11200

(8708- )RHD

Click highlighted areas on diagram

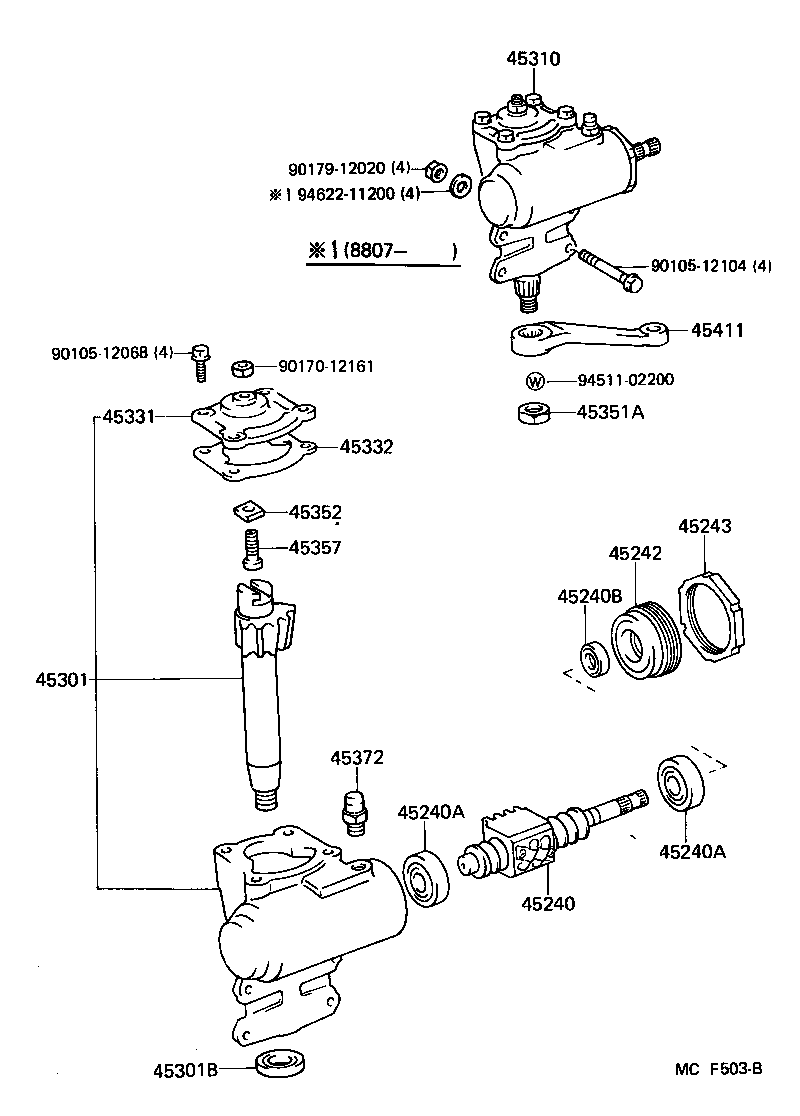

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45411 9010512068 9010512104 9017012161 9017912020 9451102200 9462211200
Part # Description Qty Price
Common parts
90105-12068
90105-12104
90170-12161
90179-12020
94511-02200
94622-11200

(8708- )RHD

Click highlighted areas on diagram

POWER STEERING

diagram 44101D 44101H 44101J 44101J 44104 44105 44105A 44105B 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price

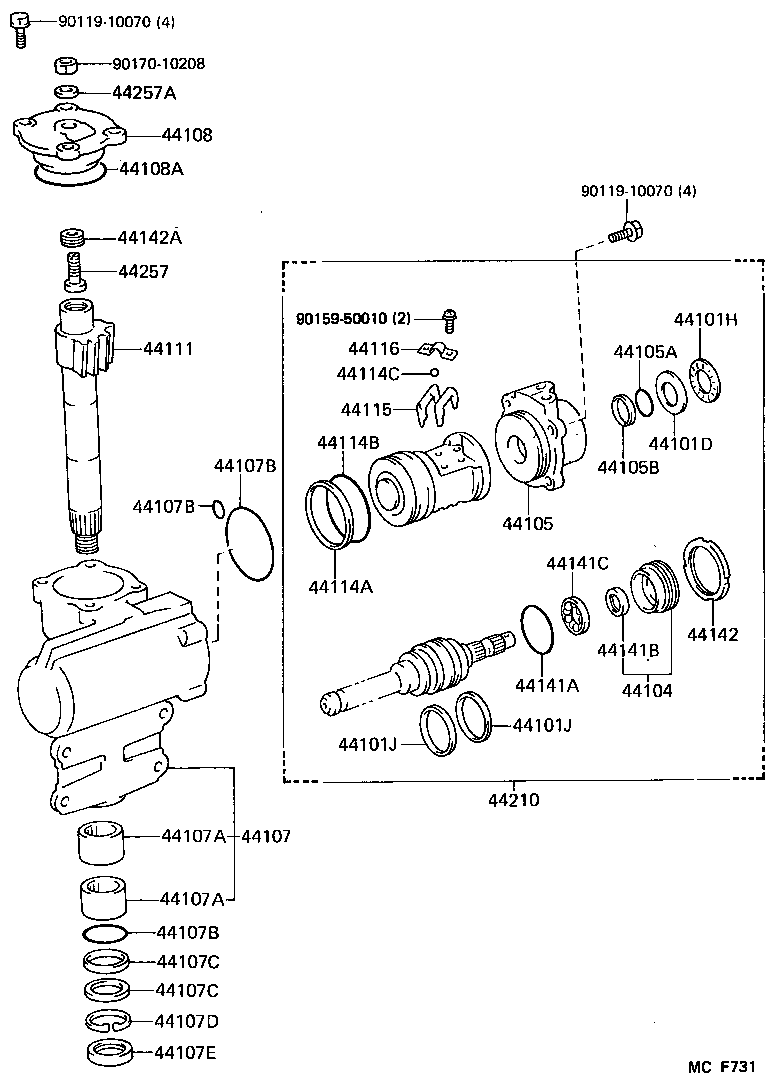

44101D - WASHER, PLATE(FOR STEERING WORM)
90201-30003

BJ60,FJ62,HJ6#

 1
44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)
90374-30003

BJ60,FJ62,HJ6#

 1
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60,FJ62,HJ6#

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60,FJ62,HJ6#

 2
44104 - PLUG SUB-ASSY, ADJUSTER
44104-22011

BJ60,FJ62,HJ6#

 1
44105 - HOUSING SUB-ASSY, VALVE
44105-30060

BJ60,FJ62,HJ6#

 1
44105A - RING, O(FOR VALVE HOUSING)
90301-32002

BJ60,FJ62,HJ6#

 1
44105B - RING(FOR VALVE HOUSING)
90562-30002

BJ60,FJ62,HJ6#

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-60050

BJ60,FJ62,HJ6#..RHD

 1
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003

BJ60,FJ62,HJ6#

 2
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003

BJ60,FJ62,HJ6#

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ60,FJ62,HJ6#

ID=65.0,OD=70.0

 1
90301-33002

BJ60,FJ62,HJ6#

ID=33.7,OD=40.7

 1
96711-19010

BJ60,FJ62,HJ6#

ID=9.8,OD=13.6

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ60,FJ62,HJ6#

ID=65.0,OD=70.0

 1
90301-33002

BJ60,FJ62,HJ6#

ID=33.7,OD=40.7

 1
96711-19010

BJ60,FJ62,HJ6#

ID=9.8,OD=13.6

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ60,FJ62,HJ6#

ID=65.0,OD=70.0

 1
90301-33002

BJ60,FJ62,HJ6#

ID=33.7,OD=40.7

 1
96711-19010

BJ60,FJ62,HJ6#

ID=9.8,OD=13.6

 1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-32002

BJ60,FJ62,HJ6#

ID=32,OD=40

 1
90562-31002

BJ60,FJ62,HJ6#

ID=31.7,OD=34.1,T=4

 1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-32002

BJ60,FJ62,HJ6#

ID=32,OD=40

 1
90562-31002

BJ60,FJ62,HJ6#

ID=31.7,OD=34.1,T=4

 1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90521-44002

BJ60,FJ62,HJ6#

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90312-32002

BJ60,FJ62,HJ6#

 1
44108 - COVER SUB-ASSY, SIDE
44108-60010

BJ60,FJ62,HJ6#

 1
44108A - RING, O(FOR SIDE COVER)
90301-64002

BJ60,FJ62,HJ6#

 1
44111 - SHAFT, CROSS
44111-60040

BJ60,FJ62,HJ6#

 1
44114A - RING(FOR POWER PISTON NUT)
90562-67002

BJ60,FJ62,HJ6#

 1
44114B - RING, O(FOR POWER PISTON NUT)
90301-64005

BJ60,FJ62,HJ6#

 1
44114C - BALL(FOR POWER PISTON NUT)
90360-06021

BJ60,FJ62,HJ6#

 44
44115 - GUIDE, BALL
44115-30030

BJ60,FJ62,HJ6#..RHD

 2
44116 - CLAMP, BALL GUIDE
44116-30030

BJ60,FJ62,HJ6#..RHD

 1
44141A - RING, O(FOR ADJUSTER PLUG)
90301-51001

BJ60,FJ62,HJ6#

 1
44141B - SEAL, OIL(FOR ADJUSTER PLUG)
90311-19002

BJ60,FJ62,HJ6#

 1
44141C - BEARING(FOR ADJUSTER PLUG)
90369-22004

BJ60,FJ62,HJ6#

 1
44142 - NUT, LOCK
44142-22010

BJ60,FJ62,HJ6#

 1
44142A - NUT, LOCK, NO.1
44142-22020

BJ60,FJ62,HJ6#

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44120-60120

BJ60,FJ62,HJ6#..RHD

 1
44257 - SCREW, CROSS SHAFT ADJUSTING
45357-22010

BJ60,FJ62,HJ6#

 1
44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001

BJ60,FJ62,HJ6#

 1
Common parts
90119-10070
90159-50010
90170-10208
