HJ61RG-PNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9201)4FC

Click highlighted areas on diagram

A440F

diagram 35073 35073A 35073C 35073D 35073F 35073G 35073J 35713 35720 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762A 35762B 35762C 35762C 35770A 35789F 35789F 35790A 35790B
Part # Description Qty Price

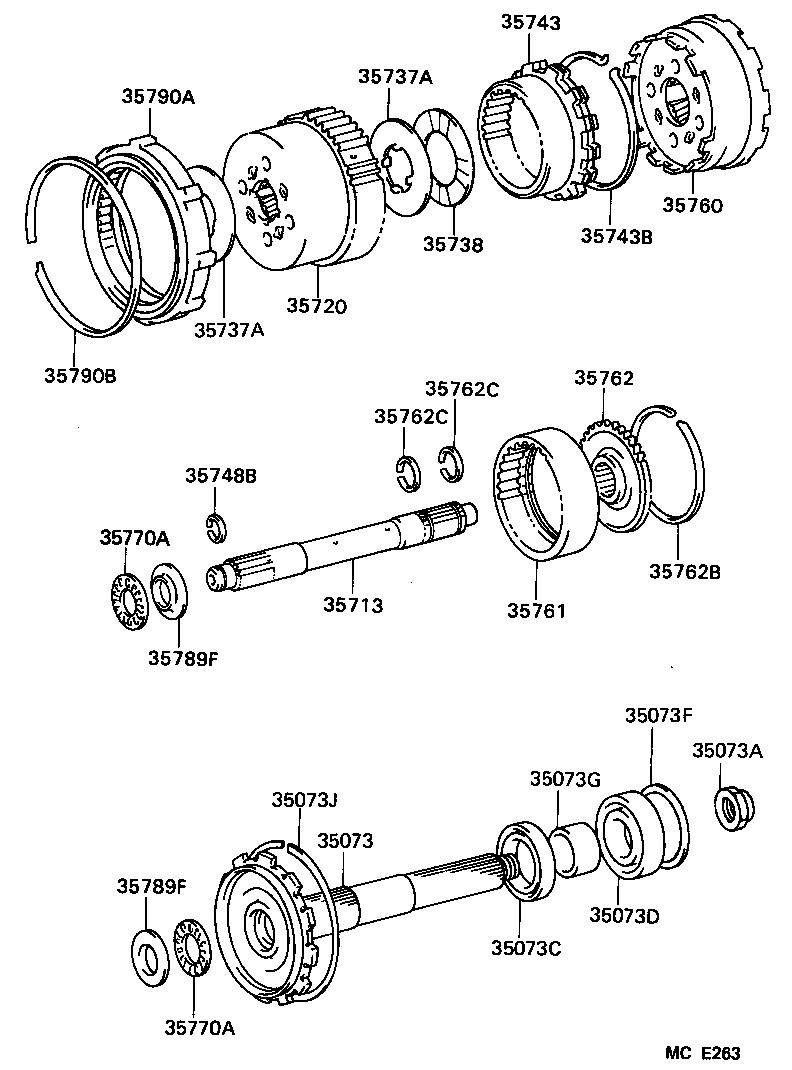

(8708- )4FC

Click highlighted areas on diagram

A440F

diagram 35073 35073A 35073C 35073D 35073F 35073G 35073J 35713 35720 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762B 35762C 35762C 35770A 35770A 35789F 35789F 35790A 35790B
Part # Description Qty Price
35073 - SHAFT SUB-ASSY, OUTPUT
35073-60010

FJ62,HJ61..4FC

 1
35073A - NUT (FOR OUTPUT SHAFT)
90179-26004

FJ62,HJ61..4FC

 1
35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
90363-45008

FJ62,HJ61..4FC

 1
35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
90363-35022

FJ62,HJ61..4FC

 1
35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
90560-72003

FJ62,HJ61..4FC

T=2.5

 1
90560-72002

FJ62,HJ61..4FC

T=2.4

 1
90560-72001

FJ62,HJ61..4FC

T=2.3

 1
35073G - SPACER, NO.2 (FOR OUTPUT SHAFT REAR BEARING)
90560-35009

FJ62,HJ61..4FC

 1
35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT)
90521-99042

FJ62,HJ61..4FC

 1
35713 - SHAFT, INTERMEDIATE
35713-36011

FJ62,HJ61..4FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-60010

FJ62,HJ61..4FC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-36010

FJ62,HJ61..4FC

 2
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-36010

FJ62,HJ61..4FC

 2
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-60010

FJ62,HJ61..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-60010

FJ62,HJ61..4FC

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99040

FJ62,HJ61..4FC

 1
35748B - RING, INTERMEDIATE SHAFT OIL SEAL
35748-36010

FJ62,HJ61..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-60010

FJ62,HJ61..4FC

 1
35761 - GEAR, REAR PLANETARY RING
35761-60010

FJ62,HJ61..4FC

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-60010

FJ62,HJ61..4FC

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-99041

FJ62,HJ61..4FC

 1
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

FJ62,HJ61..4FC

 2
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

FJ62,HJ61..4FC

 2
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-34001

FJ62,HJ61..4FC

 2
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-34001

FJ62,HJ61..4FC

 2
35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35789-36090

FJ62,HJ61..4FC

 2
35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35789-36090

FJ62,HJ61..4FC

 2
35790A - CLUTCH ASSY, 1 WAY
35790-36010

FJ62,HJ61..4FC

 1
35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH)
90521-99021

FJ62,HJ61..4FC

 1
