HJ61RG-PEZXQ (1987)
Toyota Land Cruiser
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 3 OF 7(9001-0808)RHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50025 | ||||
| 90170-09002 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||

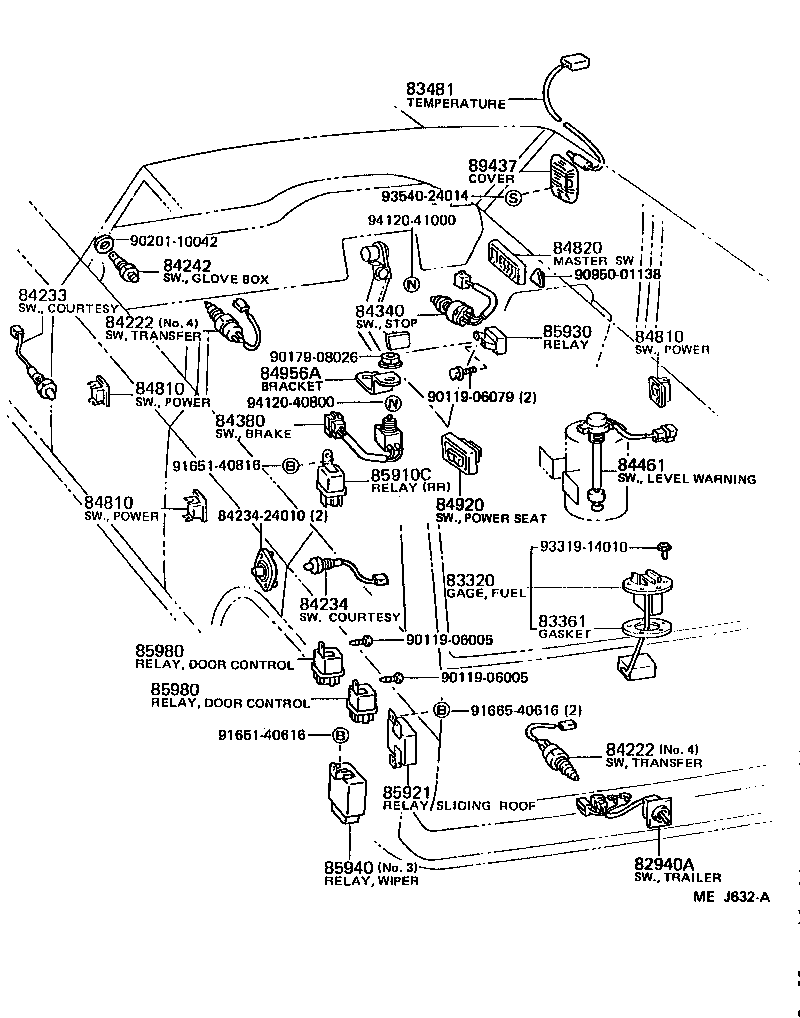

ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||

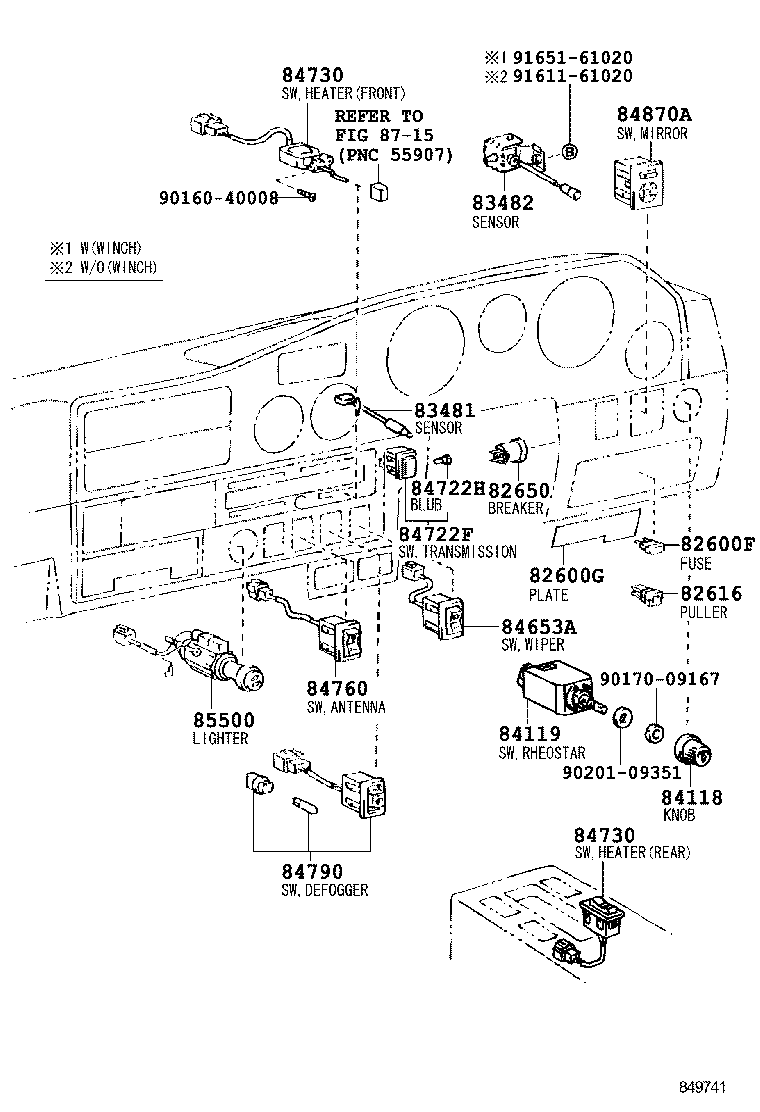

ILLUST NO. 3 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
HJ60..ARL;BJ60,FJ62,HJ61 10A |
2 | ||
| 90982-09004 |
FJ62,HJ6#..ARL 20A,YELLOW |
1 | ||
| 90982-09003 |
HJ6#..LUB;HJ60..RHD..STD 15A |
9 | ||
| 90982-09005 |
BJ60,HJ61;HJ60..LUB;HJ60..RHD..STD 7.5A |
6 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90A17 |
BJ60,HJ60;HJ61..4FC;HJ61..5F..GX |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BJ60,FJ62,HJ6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
FJ62,HJ6# 14A |
1 | ||
| 82650-20011 |
FJ62,HJ6# 30A |
2 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) COWL HARNESS |
1 | ||
| 83481-90A02 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) ROOF HARNESS |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90A00 |
FJ62,HJ6#..LUB..ARL |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-90A00 |
FJ62,HJ6#..ARL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-90A01 |
FJ62,HJ6#..ARL |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-32020 |
HJ6#..LUB;FJ62..RHD..LUB;FJ62..LUB..GX..ME;FJ62..LHD..4F..LUB;FJ62..SRF..LUB..VX;FJ62..5F..HRF..GEN |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60070 |
BJ60,FJ62,HJ6# |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
BJ60,FJ62,HJ6# 12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-90A00 |
BJ60,FJ62,HJ6#..ARL,GEN REAR |
1 | ||
| 84730-90A00 |
BJ60,FJ62,HJ6# FRONT |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-90A00 |
BJ60,FJ62,HJ6#..ARL,GEN REAR |
1 | ||
| 84730-90A00 |
BJ60,FJ62,HJ6# FRONT |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-90A01 |
HJ60..LUB;FJ62,HJ61..GX,VX |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A09 |
BJ60,FJ62,HJ6# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-14060 |
HJ60..LUB..GEN;FJ62..5F..SRF..VX;FJ62..4F..SOB..GX;FJ62..5F..GX..GEN;FJ62,HJ61..HRF..VX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| 84870-22040 |
HJ60..LUB..GEN;FJ62..5F..SRF..VX;FJ62..4F..SOB..GX;FJ62..5F..GX..GEN;FJ62,HJ61..HRF..VX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-90A07 |
HJ60..ARL,GEN;BJ60,FJ62,HJ61 |
1 | ||
| Common parts | ||||
| 90160-40008 | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 91611-61020 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 8715 | ||||

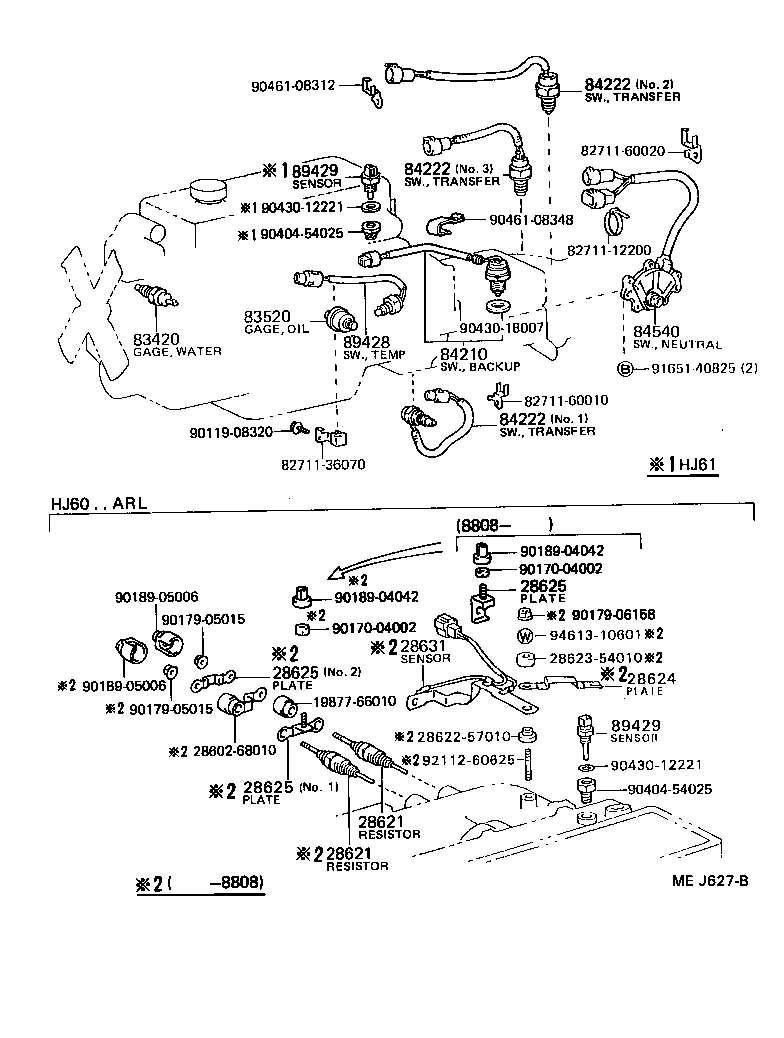

ILLUST NO. 1 OF 6(8708- )HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BJ60,FJ62,HJ6# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
BJ60,FJ62,HJ6# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60030 |
FJ62,HJ61..4FC NO.2 |
1 | ||
| 84222-60040 |
FJ62,HJ61..4FC NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ61..4FC NO.1 |
1 | ||
| 84222-60071 |
HJ6#..ARL;FJ62..4FC;FJ62..5F..(ARL,ME) |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60030 |
FJ62,HJ61..4FC NO.2 |
1 | ||
| 84222-60040 |
FJ62,HJ61..4FC NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ61..4FC NO.1 |
1 | ||
| 84222-60071 |
HJ6#..ARL;FJ62..4FC;FJ62..5F..(ARL,ME) |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60030 |
FJ62,HJ61..4FC NO.2 |
1 | ||
| 84222-60040 |
FJ62,HJ61..4FC NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ61..4FC NO.1 |
1 | ||
| 84222-60071 |
HJ6#..ARL;FJ62..4FC;FJ62..5F..(ARL,ME) |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60020 |
FJ62,HJ61..4FC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-36010 |
FJ62,HJ61..4FC |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
HJ6#..ARL |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
HJ6#..ARL |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28602-68010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-36070 | ||||
| 82711-60010 | ||||
| 82711-60020 | ||||
| 90119-08320 | ||||
| 90170-04002 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-04042 | ||||
| 90189-05006 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08348 | ||||
| 91651-40825 | ||||
| 92112-60625 | ||||
| 94613-10601 | ||||

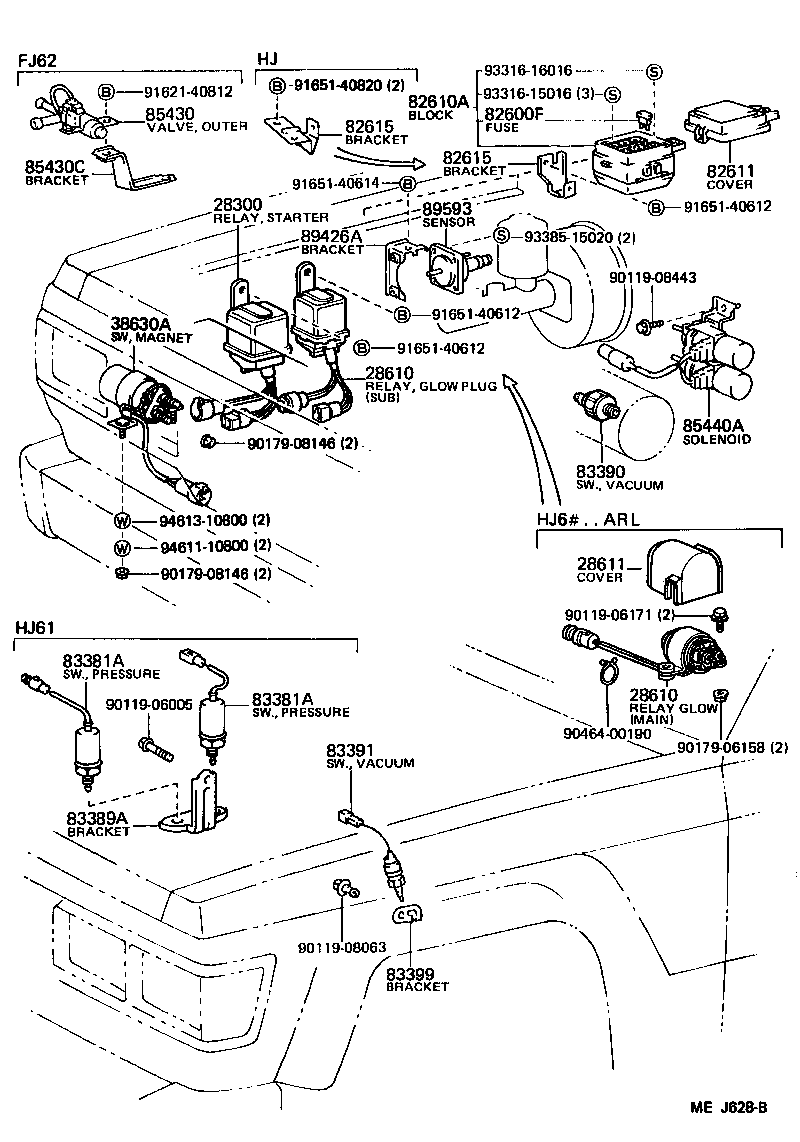

ILLUST NO. 2 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
12HT,3B,2H..BJ60,HJ6# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57100 |
12HT..HJ61 |
2 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57100 |
12HT..HJ61 |
2 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
12HT..HJ61 |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
HJ60..ARL;BJ60,FJ62,HJ61 10A |
2 | ||
| 90982-09004 |
FJ62,HJ6#..ARL 20A,YELLOW |
1 | ||
| 90982-09003 |
HJ6#..LUB;HJ60..RHD..STD 15A |
9 | ||
| 90982-09005 |
BJ60,HJ61;HJ60..LUB;HJ60..RHD..STD 7.5A |
6 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-90K02 |
FJ62,HJ6#..ARL |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
FJ62,HJ6#..ARL |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90A02 |
HJ6#..ARL |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90A02 |
HJ6#..ARL |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-36010 |
HJ61 P=800 |
1 | ||
| 83381-30010 |
HJ61 P=100 |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-36010 |
HJ61 P=800 |
1 | ||
| 83381-30010 |
HJ61 P=100 |
1 | ||
| 83389A - BRACKET, PRESSURE SWITCH | ||||
| 83389-60040 |
HJ61 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
BJ60,HJ6# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-60010 |
FJ62,HJ6#..ARL |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-60010 |
FJ62,HJ6#..ARL |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60120 |
BJ60,FJ62,HJ6# |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-60010 |
BJ60,FJ62,HJ6# |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BJ60,HJ6# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90119-08443 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90464-00190 | ||||
| 91621-40812 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
| 94613-10800 | ||||

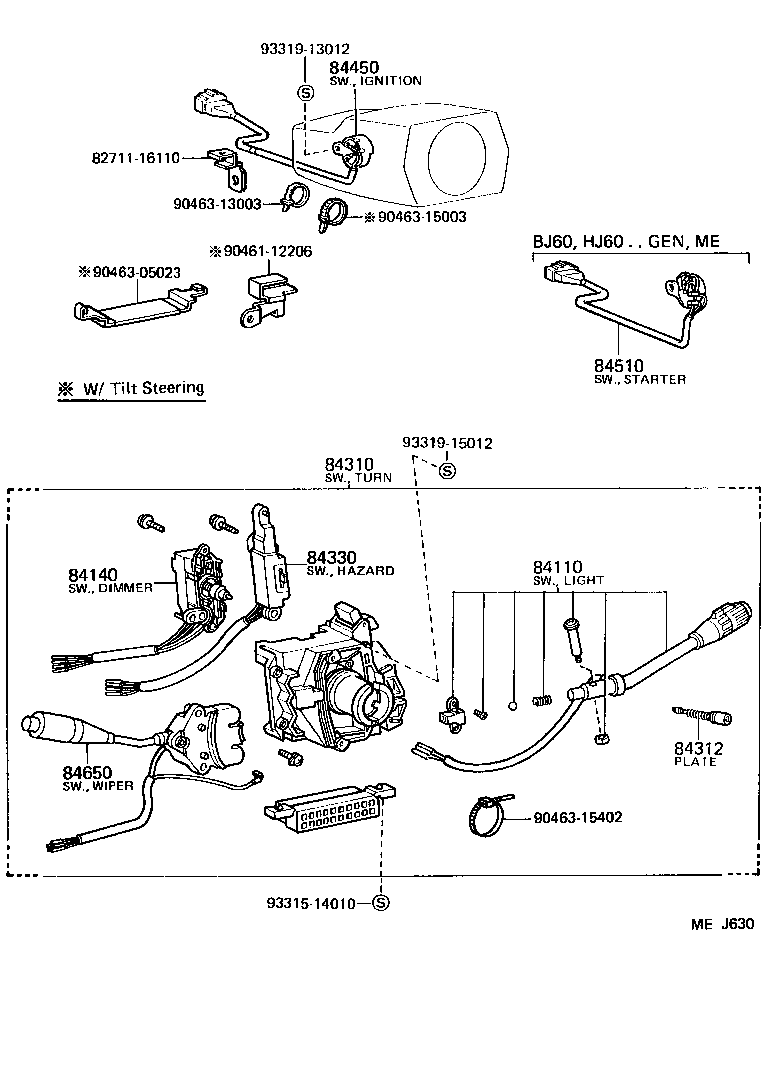

ILLUST NO. 4 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69275 |
FJ62,HJ6#..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35060 |
FJ62,HJ6#..ARL |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60660 |
FJ62,HJ6#..ARL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BJ60,FJ62,HJ6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29125 |
FJ62,HJ6#..ARL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60080 |
HJ60..ARL;FJ62,HJ61..ARL,ME |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69325 |
FJ62,HJ6#..ARL |
1 | ||
| Common parts | ||||
| 82711-16110 | ||||
| 90461-12206 | ||||
| 90463-05023 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||

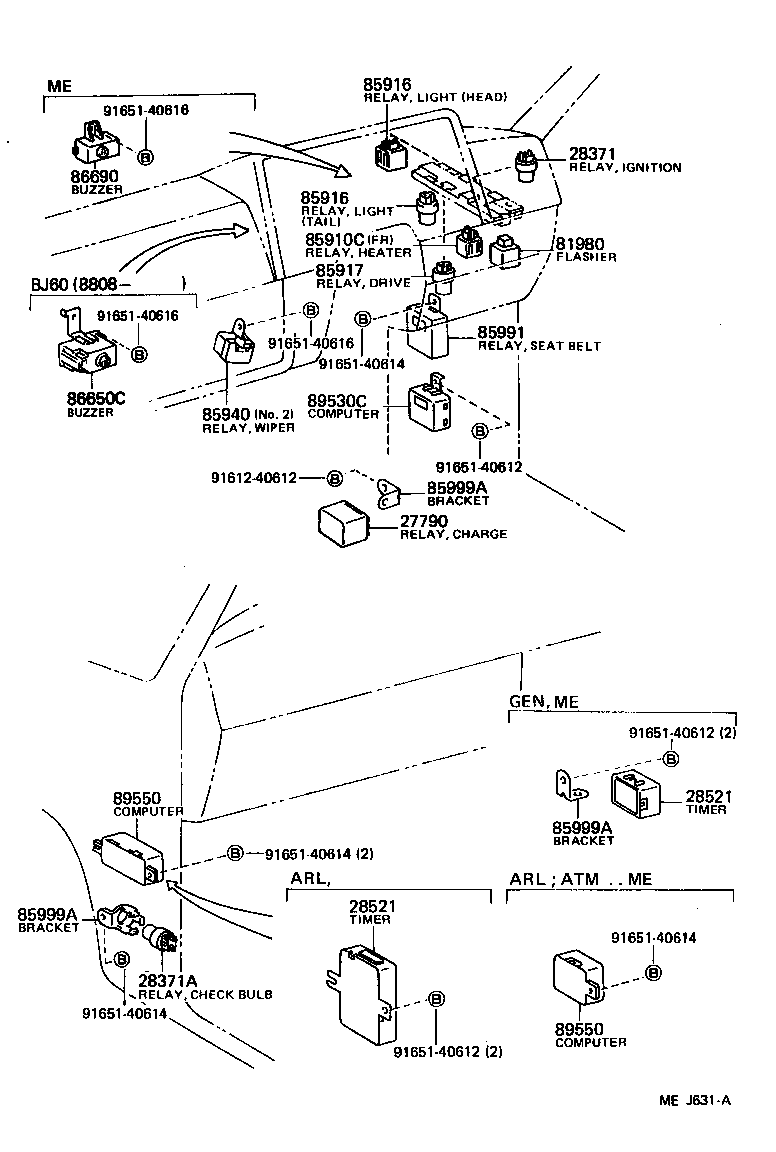

ILLUST NO. 5 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL;3F..FJ62..LHD..5F..(GX,VX);3F..FJ62..(4F,4FC)..(GX,VX);3F..FJ62..RHD..5F..(GX,STD) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02004 |
12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
1 | ||
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
12HT,3F,2H..FJ62,HJ6#..ARL |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-68070 |
12HT..HJ61 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-68070 |
12HT..HJ61 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
BJ60,FJ62,HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 88630-14010 |
BJ60,FJ62,HJ6#..ARL,GEN REAR |
1 | ||
| 85913-30020 |
BJ60,FJ62,HJ6# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ60,FJ62,HJ6# HEAD |
1 | ||
| 90987-01003 |
BJ60,FJ62,HJ6# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ60,FJ62,HJ6# HEAD |
1 | ||
| 90987-01003 |
BJ60,FJ62,HJ6# TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
BJ60,FJ62,HJ6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A02 |
BJ60,HJ61..RHD;FJ62,HJ60..GX..ARL;FJ62,HJ60..RHD..(STD,VX) TILT STEERING |
1 | ||
| 85940-90A10 |
FJ62..LUB..GX..ME;FJ62,HJ6#..LUB..VX VENEZUELA SPEC OR RR WINDOW DEFOGGER |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BJ60,HJ6#;FJ62..LHD..5F..(GX,VX);FJ62..RHD..5F..(GX,STD);FJ62..(4F,4FC)..(GX,VX) |
1 | ||
| 85999-12050 |
FJ62,HJ6#..ARL BULB CHECK RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BJ60,HJ6#;FJ62..LHD..5F..(GX,VX);FJ62..RHD..5F..(GX,STD);FJ62..(4F,4FC)..(GX,VX) |
1 | ||
| 85999-12050 |
FJ62,HJ6#..ARL BULB CHECK RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BJ60,HJ6#;FJ62..LHD..5F..(GX,VX);FJ62..RHD..5F..(GX,STD);FJ62..(4F,4FC)..(GX,VX) |
1 | ||
| 85999-12050 |
FJ62,HJ6#..ARL BULB CHECK RELAY |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-60020 |
FJ62,HJ61..4FC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60180 |
FJ62,HJ6#..ARL |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60180 |
FJ62,HJ6#..ARL |
1 | ||
| Common parts | ||||
| 91612-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
ILLUST NO. 6 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82940A - SWITCH ASSY, TRAILER SOCKET | ||||
| 82940-65011 |
BJ60,HJ61;HJ60..LUB;FJ62..GEN,ME;HJ60..RHD..STD;FJ62..4FC..VX..ARL;FJ62..(GX,STD)..ARL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69015 |
BJ60,FJ62,HJ6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BJ60,FJ62,HJ6# |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) COWL HARNESS |
1 | ||
| 83481-90A02 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) ROOF HARNESS |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60030 |
FJ62,HJ61..4FC NO.2 |
1 | ||
| 84222-60040 |
FJ62,HJ61..4FC NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ61..4FC NO.1 |
1 | ||
| 84222-60071 |
HJ6#..ARL;FJ62..4FC;FJ62..5F..(ARL,ME) |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60030 |
FJ62,HJ61..4FC NO.2 |
1 | ||
| 84222-60040 |
FJ62,HJ61..4FC NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ61..4FC NO.1 |
1 | ||
| 84222-60071 |
HJ6#..ARL;FJ62..4FC;FJ62..5F..(ARL,ME) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ60,FJ62,HJ6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22051 |
BJ60,FJ62,HJ6# |
2 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-90A00 |
HJ60..LUB;FJ62,HJ61..GX,VX |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BJ60,FJ62,HJ6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
BJ60,FJ62,HJ6# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-60020 |
HJ6# |
1 | ||
| 84461-60020 |
BJ60,HJ6# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0403 |
FJ62,HJ61..VX..ARL SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ61..GX,VX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84810-90A0306 |
FJ62,HJ61..GX,VX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0406 |
FJ62,HJ61..VX..ARL SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0403 |
FJ62,HJ61..VX..ARL SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ61..GX,VX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84810-90A0306 |
FJ62,HJ61..GX,VX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0406 |
FJ62,HJ61..VX..ARL SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0403 |
FJ62,HJ61..VX..ARL SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ61..GX,VX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84810-90A0306 |
FJ62,HJ61..GX,VX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0406 |
FJ62,HJ61..VX..ARL SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-90A1003 |
FJ62,HJ61..VX..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 84820-90A1006 |
FJ62,HJ61..VX..ARL SEPIA BROWN,TRIM4# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-90A0206 |
FJ62,HJ61..4FC..VX..ARL SEPIA BROWN,TRIM4# |
1 | ||
| 84920-90A0203 |
FJ62,HJ61..4FC..VX..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-60030 |
BJ60,FJ62,HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 88630-14010 |
BJ60,FJ62,HJ6#..ARL,GEN REAR |
1 | ||
| 85913-30020 |
BJ60,FJ62,HJ6# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-90A04 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-90A00 |
HJ60..LUB;FJ62,HJ61..GX,VX |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A02 |
BJ60,HJ61..RHD;FJ62,HJ60..GX..ARL;FJ62,HJ60..RHD..(STD,VX) TILT STEERING |
1 | ||
| 85940-90A10 |
FJ62..LUB..GX..ME;FJ62,HJ6#..LUB..VX VENEZUELA SPEC OR RR WINDOW DEFOGGER |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 88630-14010 |
HJ60..LUB;FJ62,HJ61..GX,VX |
2 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 88630-14010 |
HJ60..LUB;FJ62,HJ61..GX,VX |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 84234-24010 | ||||
| 90119-06005 | ||||
| 90119-06079 | ||||
| 90179-08026 | ||||
| 90201-10042 | ||||
| 90950-01138 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91665-40616 | ||||
| 93319-14010 | ||||
| 93540-24014 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
