HJ61RG-PEZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

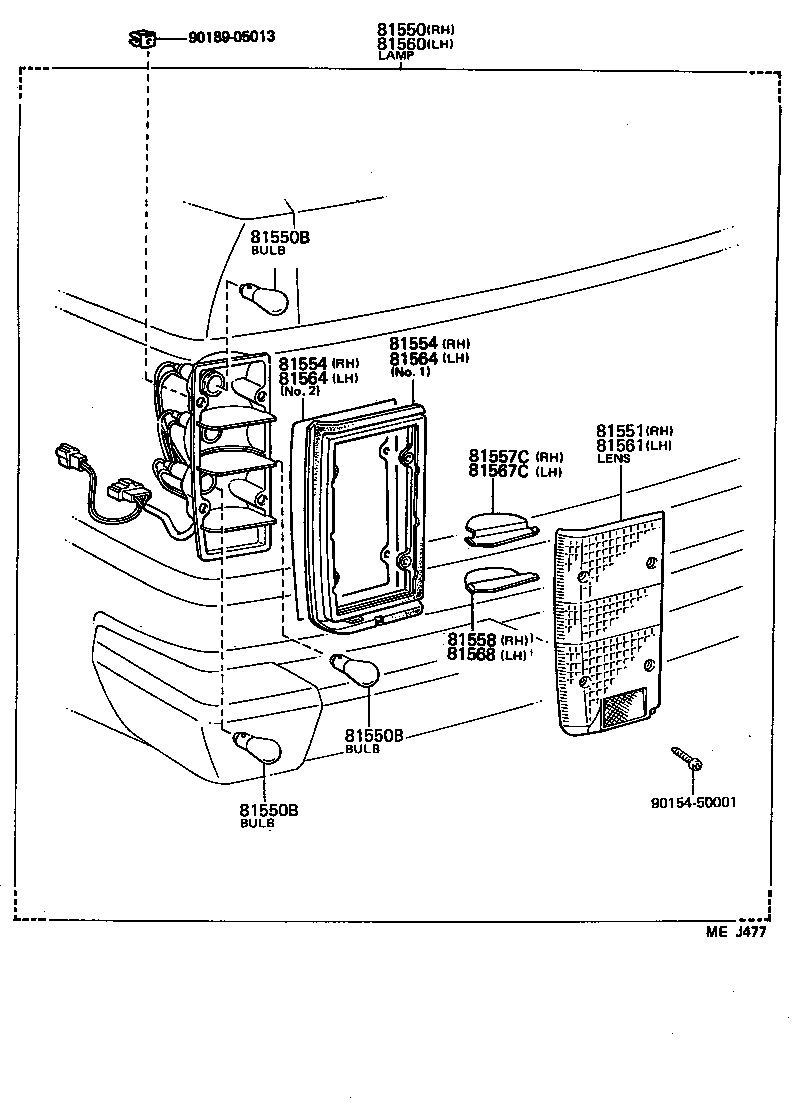

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81554 81557C 81558 81560 81561 81564 81564 81567C 81568 9015450001 9018905013
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-90A14

FJ62,HJ6#..ARL

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

BJ60,FJ62,HJ6#

12V 21/5W

 2
99132-11210

FJ62,HJ6#..ARL

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

BJ60,FJ62,HJ6#

12V 21/5W

 2
99132-11210

FJ62,HJ6#..ARL

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

BJ60,FJ62,HJ6#

12V 21/5W

 2
99132-11210

FJ62,HJ6#..ARL

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-90A00

BJ60,FJ62,HJ6#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-90A00

BJ60,FJ62,HJ6#

NO.1

 1
81554-90A12

BJ60,FJ62,HJ6#

NO.2

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-90A00

BJ60,FJ62,HJ6#

NO.1

 1
81554-90A12

BJ60,FJ62,HJ6#

NO.2

 1
81557C - COVER, REAR COMBINATION LAMP, RH
81557-90A00

BJ60,FJ62,HJ6#

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81558-90A00

BJ60,FJ62,HJ6#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-90A14

FJ62,HJ6#..ARL

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-90A00

BJ60,FJ62,HJ6#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-90A12

BJ60,FJ62,HJ6#

NO.2

 1
81562-90A00

BJ60,FJ62,HJ6#

NO.1

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-90A12

BJ60,FJ62,HJ6#

NO.2

 1
81562-90A00

BJ60,FJ62,HJ6#

NO.1

 1
81567C - COVER, REAR COMBINATION LAMP, LH
81557-90A00

BJ60,FJ62,HJ6#

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81558-90A00

BJ60,FJ62,HJ6#

 1
Common parts
90154-50001
90189-05013
