HJ61RG-PEZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

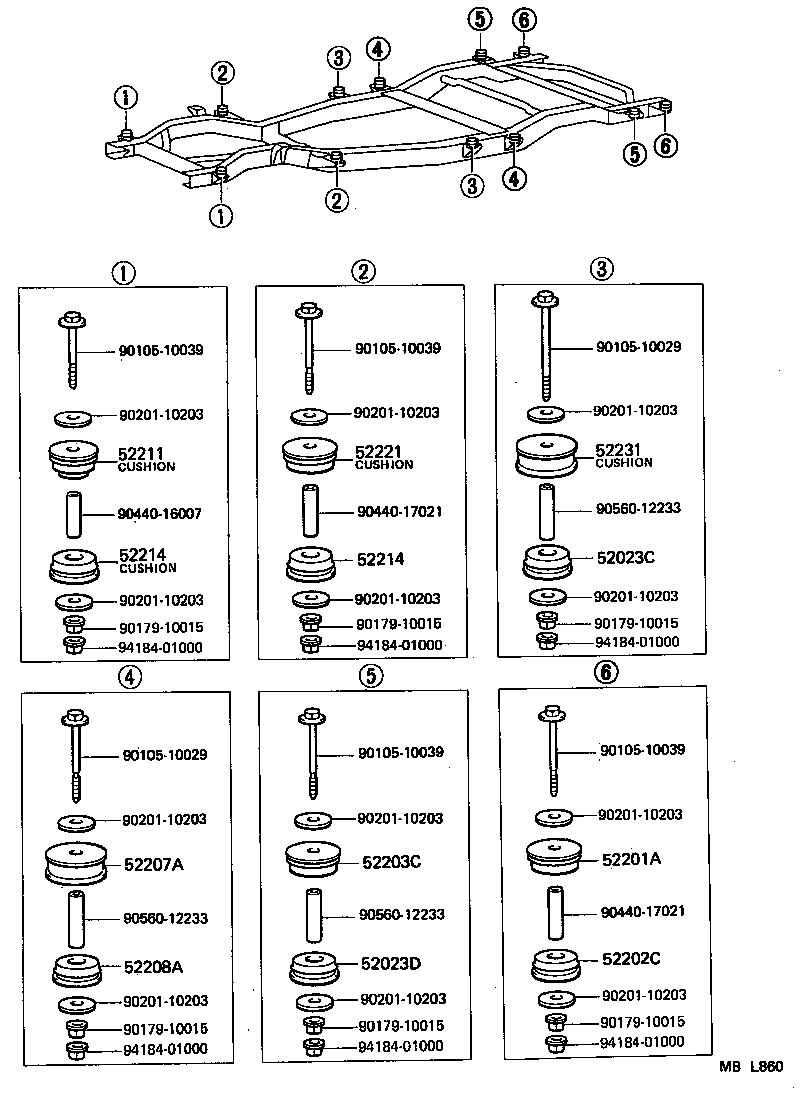

Click highlighted areas on diagram

diagram 52023C 52023D 52201A 52202C 52203C 52207A 52208A 52211 52214 52214 52221 52231 9010510029 9010510029 9010510039 9010510039 9010510039 9010510039 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9044016007 9044017021 9044017021 9056012233 9056012233 9056012233 9418401000 9418401000 9418401000 9418401000 9418401000 9418401000
Part # Description Qty Price
52023C - CUSHION SUB-ASSY, NO.3 BODY MOUNTING, LOWER
52023-60011

BJ60,FJ62,HJ6#

 2
52023D - CUSHION SUB-ASSY, NO.3 BODY MOUNTING, LOWER
52023-60011

BJ60,FJ62,HJ6#

 2
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25020

BJ60,FJ62,HJ6#

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-25020

BJ60,FJ62,HJ6#

 2
52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-60030

BJ60,FJ62,HJ6#

 2
52207A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER
52207-60010

BJ60,FJ62,HJ6#

 2
52208A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER
52208-60010

BJ60,FJ62,HJ6#

 2
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-35021

BJ60,FJ62,HJ6#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-25020

BJ60,FJ62,HJ6#

RR

 2
52202-35021

BJ60,FJ62,HJ6#

FR

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-25020

BJ60,FJ62,HJ6#

RR

 2
52202-35021

BJ60,FJ62,HJ6#

FR

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52201-25020

BJ60,FJ62,HJ6#

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-60030

BJ60,FJ62,HJ6#

 2
Common parts
90105-10029
90105-10039
90179-10015
90201-10203
90440-16007
90440-17021
90560-12233
94184-01000
