HJ61RG-PEZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HJ6#..RHD

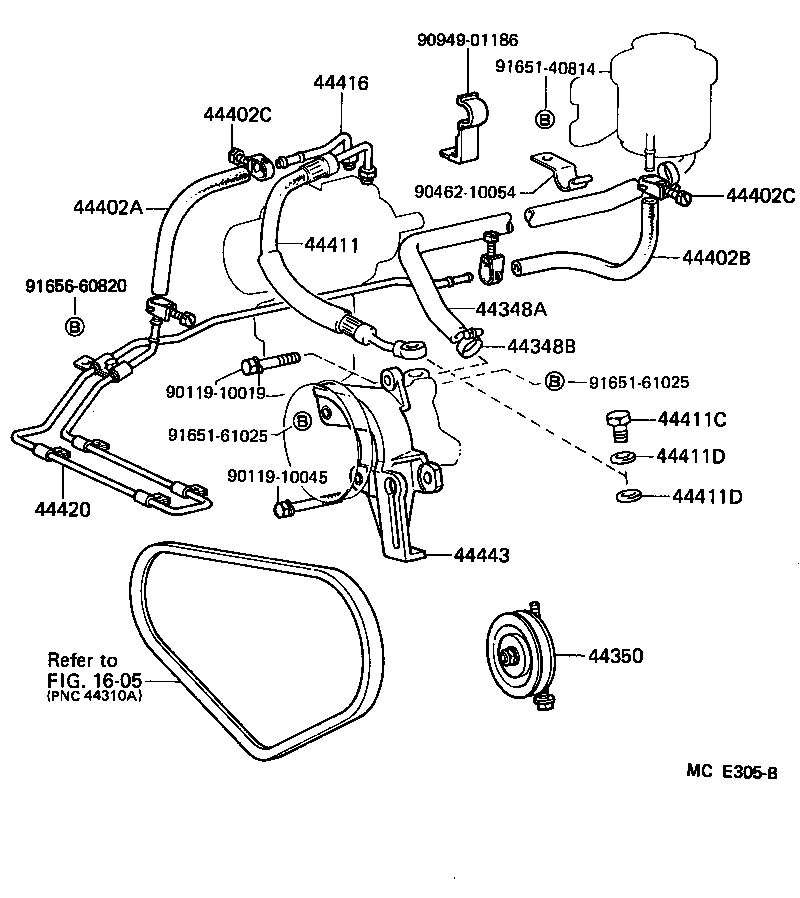

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44402A 44402B 44402C 44402C 44411 44411C 44411D 44411D 44416 44420 44443 9011910019 9011910045 9046210054 9094901186 9165140814 9165161025 9165161025 9165660820
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60070

HJ6#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18089

BJ60,FJ62,HJ6#..RHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18089

HJ6#..RHD

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

BJ60,FJ62,HJ6#..RHD

 4
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

BJ60,FJ62,HJ6#..RHD

 4
44411 - HOSE, PRESSURE FEED
44411-60310

HJ6#..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16010

HJ61..4FC

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60061

BJ60,FJ62,HJ6#

 1
44420 - COOLER ASSY, OIL
44420-60080

HJ6#..RHD

 1
44443 - BRACKET, PUMP
44443-60071

HJ6#

 1
Common parts
90119-10019
90119-10045
90462-10054
90949-01186
91651-40814
91651-61025
91656-60820
Linked diagrams
1605
