HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HJ61

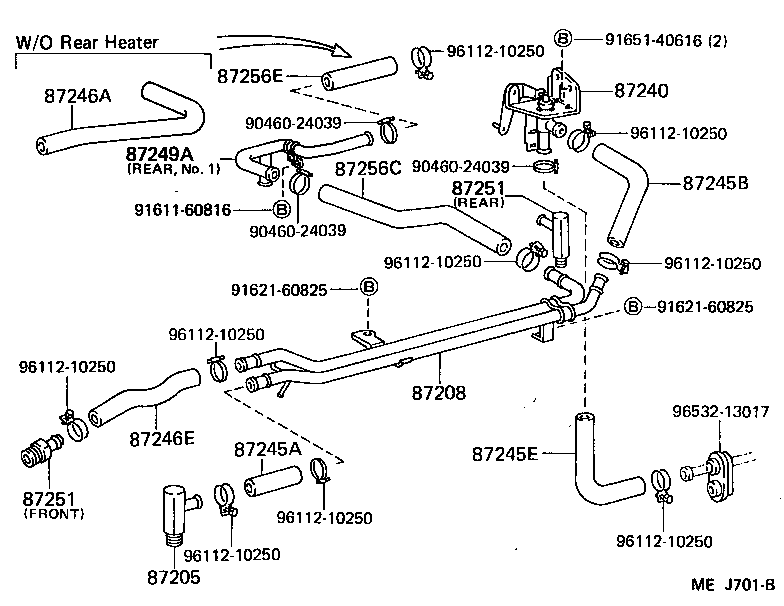

Click highlighted areas on diagram

diagram 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87249A 87251 87251 87256C 87256E 9046024039 9046024039 9046024039 9161160816 9162160825 9162160825 9165140616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9653213017
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BJ60,HJ61

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-90A13

HJ61

 1
87240 - VALVE ASSY, HEATER WATER
87240-90A00

HJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90A48

HJ61

 1
87245B - HOSE, HEATER WATER, INLET B
87245-90A37

HJ61

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90A00

HJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90A38

HJ61

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-90A36

HJ61

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-90A25

HJ61..5F;FJ62,HJ60..ARL,GEN

REAR,NO.1

 1
87248-90A24

FJ62,HJ6#..ARL,GEN

REAR,NO.2

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-90A05

HJ6#..LUB;HJ60..RHD..STD

REAR

 1
87251-30200

HJ6#..GX,VX;HJ60..RHD..STD

FRONT

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-90A05

HJ6#..LUB;HJ60..RHD..STD

REAR

 1
87251-30200

HJ6#..GX,VX;HJ60..RHD..STD

FRONT

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-90A44

HJ61..5F

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-30100

FJ62,HJ61..ARL,GEN

*H,L=60

 1
Common parts
90460-24039
91611-60816
91621-60825
91651-40616
96112-10250
96532-13017

(8708- )

Click highlighted areas on diagram

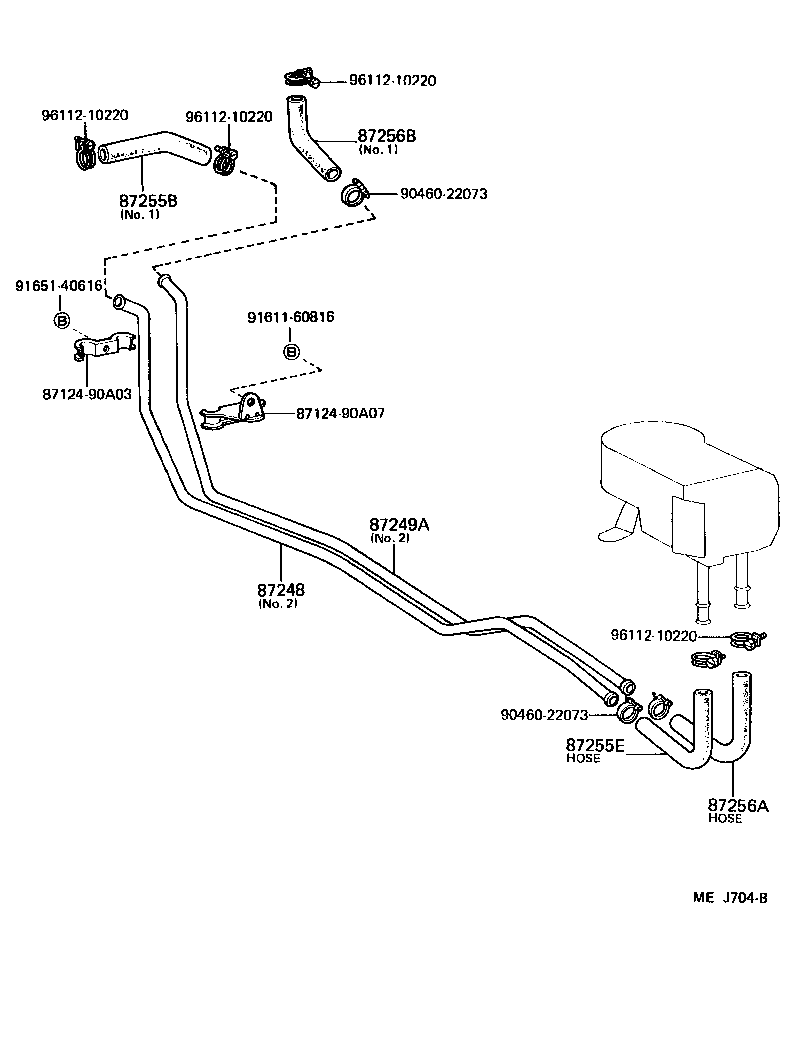

REAR WATER PIPING(BENCH SEAT)

diagram 8712490A03 8712490A07 87248 87249A 87255B 87255E 87256A 87256B 9046022073 9046022073 9161160816 9165140616 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87248 - PIPE SUB-ASSY, WATER
87248-90A22

FJ62,HJ6#..ARL,GEN

NO.2

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-90A25

HJ61..5F;FJ62,HJ60..ARL,GEN

REAR,NO.1

 1
87248-90A24

FJ62,HJ6#..ARL,GEN

REAR,NO.2

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90A40

BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL

NO.2

 1
87245-90A39

HJ61..5F

NO.1

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-90A50

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-90A50

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20095

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

L=95,NO.1

 1
87245-90A41

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

NO.2

 1
Common parts
87124-90A03
87124-90A07
90460-22073
91611-60816
91651-40616
96112-10220

(8708- )

Click highlighted areas on diagram

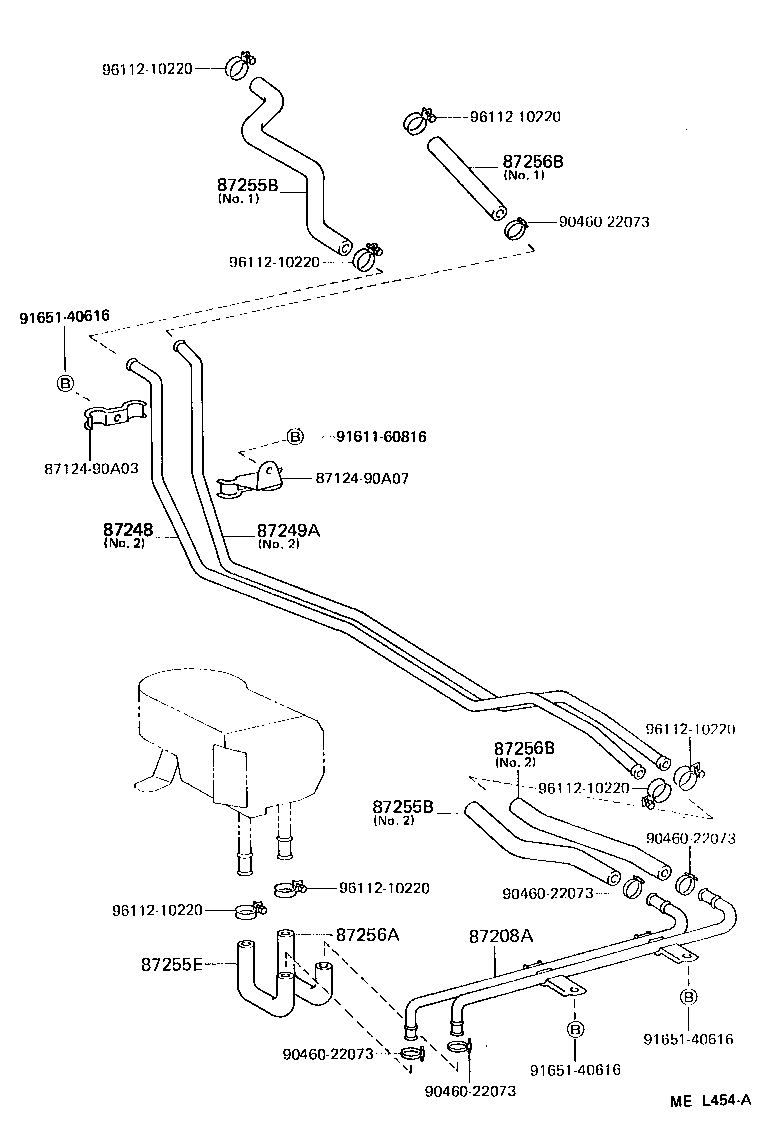

REAR WATER PIPING(SEPARATE SEAT)

diagram 8712490A03 8712490A07 87208A 87248 87249A 87255B 87255B 87255E 87256A 87256B 87256B 9046022073 9046022073 9046022073 9046022073 9046022073 9161160816 9165140616 9165140616 9165140616 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90A14

FJ62,HJ61..HRF..ARL;BJ60,FJ62,HJ60..RHD..GEN

 1
87248 - PIPE SUB-ASSY, WATER
87248-90A22

FJ62,HJ6#..ARL,GEN

NO.2

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-90A25

HJ61..5F;FJ62,HJ60..ARL,GEN

REAR,NO.1

 1
87248-90A24

FJ62,HJ6#..ARL,GEN

REAR,NO.2

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90A40

BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL

NO.2

 1
87245-90A39

HJ61..5F

NO.1

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90A40

BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL

NO.2

 1
87245-90A39

HJ61..5F

NO.1

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-90A50

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-90A50

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20095

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

L=95,NO.1

 1
87245-90A41

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

NO.2

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20095

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

L=95,NO.1

 1
87245-90A41

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

NO.2

 1
Common parts
87124-90A03
87124-90A07
90460-22073
91611-60816
91651-40616
96112-10220
