HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 5593314010 5593322020 55937 55937 55937 55937 8302 8401 87284 9016040008 9018304072 9018304072 9048015194 9331514008
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55905-90A00

BJ60,FJ62,HJ6#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-90A00

BJ60,FJ62,HJ6#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-90A00

BJ60,FJ62,HJ6#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-90A00

BJ60,FJ62,HJ6#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55901-90A00

HJ60..RHD;FJ62,HJ61..ARL

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

 4
Common parts
55933-14010
55933-22020
90160-40008
90183-04072
90480-15194
93315-14008
Linked diagrams
8302
8401

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 55084C 55085 55086 55087 55088 55089 55843A 5585290A00 5585290A01 87211 87211B 87211B 87211C 8721422010 8721422020 9018906003 904670503101 904670503101 9356055012 9356055012 9356055012 9356055012 9356055012 9356055016 9356056016 9356654514 9356654514 9358016014 9358016014 9433115000
Part # Description Qty Price
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-90A00

BJ60,FJ62,HJ6#..RHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-90A00

BJ60,FJ62,HJ6#..RHD

 1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-90A00

BJ60,FJ62,HJ6#..RHD

 1
55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5
55088-90A00

BJ60,FJ62,HJ6#..RHD

 1
55089 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.6
55089-90A02

BJ60,FJ62,HJ6#..RHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-90A02

BJ60,FJ62,HJ6#..RHD

 1
87211 - DUCT, AIR, NO.1
87211-90A00

BJ60,FJ62,HJ6#..RHD

 1
87211B - DUCT, AIR, NO.3
87201-90A00

BJ60,FJ62,HJ6#..RHD

 1
87211B - DUCT, AIR, NO.3
87201-90A00

BJ60,FJ62,HJ6#..RHD

 1
Common parts
55852-90A00
55852-90A01
87214-22010
87214-22020
90189-06003
90467-0503101
93560-55012
93560-55016
93560-56016
93566-54514
93580-16014
94331-15000

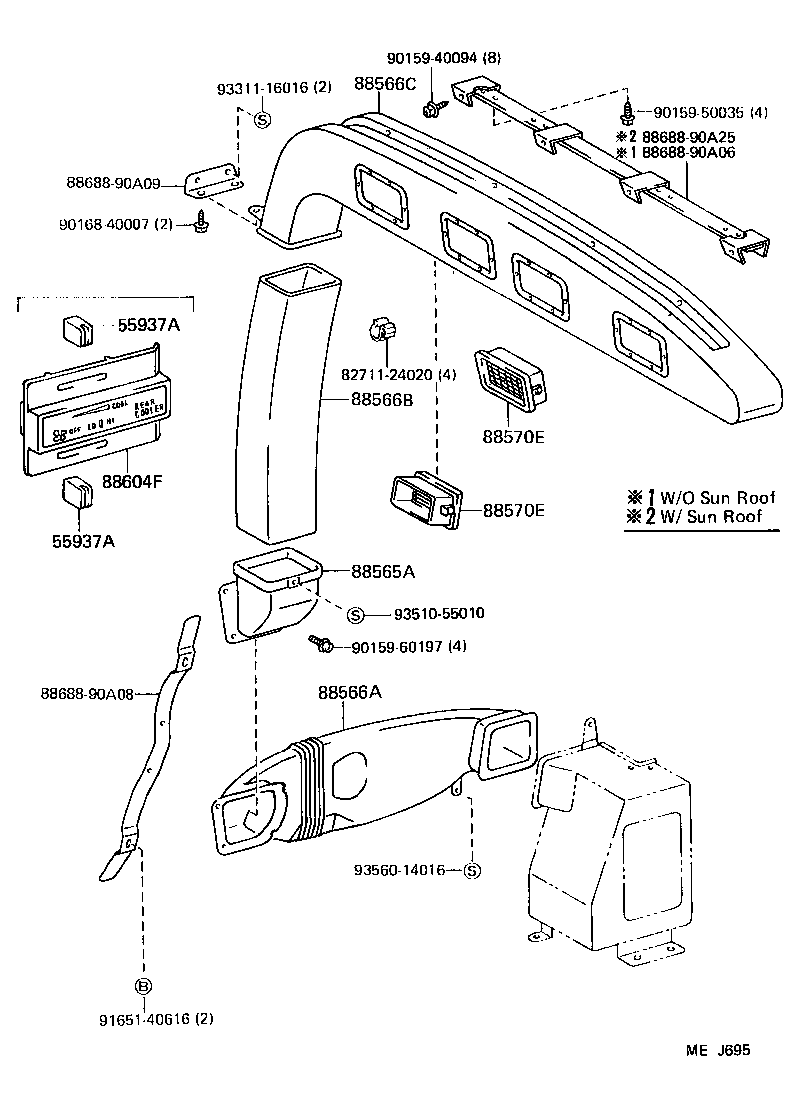

ILLUST NO. 3 OF 3(8708- )HRF

Click highlighted areas on diagram

diagram 55937A 55937A 8271124020 88565A 88566A 88566B 88566C 88570E 88570E 88604F 8868890A06 8868890A08 8868890A09 8868890A25 9015940094 9015950035 9015960197 9016840007 9165140616 9331116016 9351055010 9356014016
Part # Description Qty Price
55937A - KNOB, COOLER CONTROL LEVER
55905-22050

HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..(GX,VX)..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX)

 2
55937A - KNOB, COOLER CONTROL LEVER
55905-22050

HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..(GX,VX)..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX)

 2
88565A - ADAPTER, AIR DUCT, NO.1
88565-90A00

HJ6#..HRF;FJ62..5F..HRF..VX;FJ62..5F..HRF..LUB;FJ62..(4F,4FC)..HRF

 1
88566A - DUCT, COOLER AIR, NO.1
88566-90A03

HJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)

 1
88566B - DUCT, COOLER AIR, NO.2
88566-90A01

HJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)

 1
88566C - DUCT, COOLER AIR, NO.3
88576-90A00

FJ62,HJ6#..HRF..GX..(ARL,GEN)

 1
88576-90A01

FJ62,HJ6#..HRF..GX..(ARL,GEN)

W(SUN ROOF)

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-90A00

HJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)

 8
88570E - GRILLE ASSY, AIR OUTLET
88570-90A00

HJ6#..HRF;FJ62..HRF..(STD,VX);FJ62..HRF..GX..(ARL,GEN)

 8
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-90A0201

FJ62,HJ6#..RHD..LUB

BLACK M,TRIM1#,4#

 1
Common parts
82711-24020
88688-90A06
88688-90A08
88688-90A09
88688-90A25
90159-40094
90159-50035
90159-60197
90168-40007
91651-40616
93311-16016
93510-55010
93560-14016
