HJ61RG-MNZXQ (1987)
Toyota Land Cruiser
(8708- )ARL

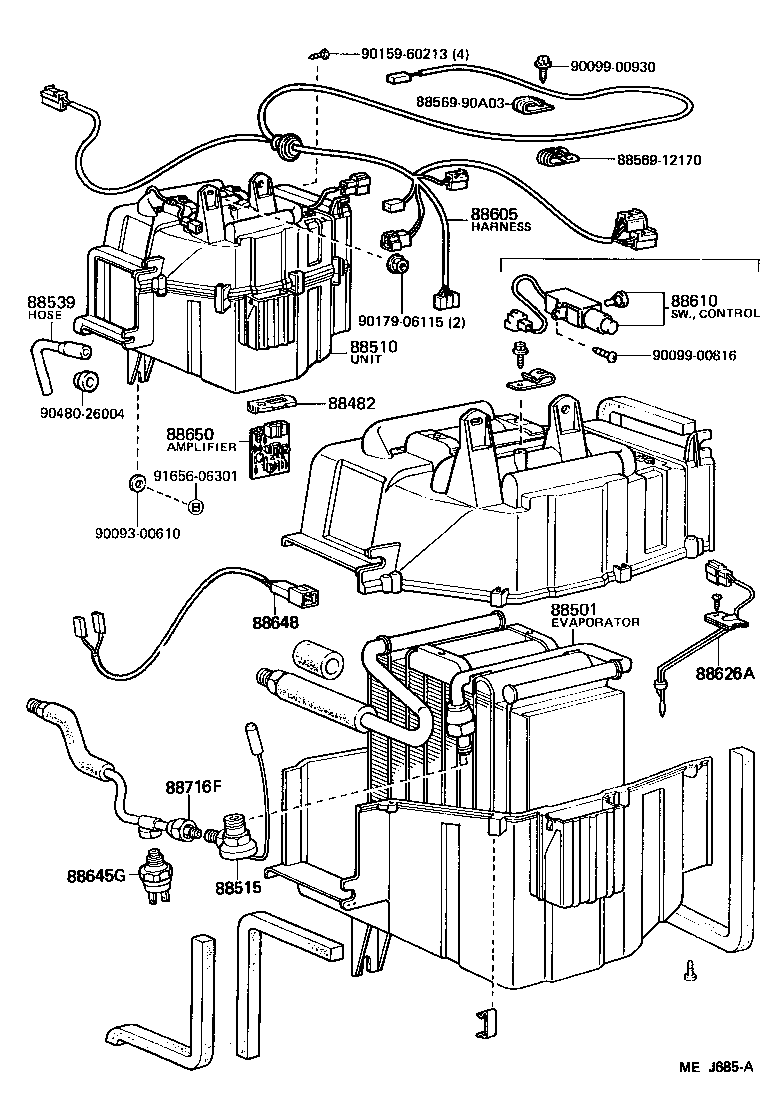

FRONT COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88482 - CAP, COOLER | ||||
| 88482-90A00 |
BJ60,HJ6# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A08 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88501-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88501-90A05 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A17 |
HJ61..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A10 |
FJ62,HJ6#..LUB..ARL W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A29 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) |
1 | ||
| 88515-87003 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A00 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) FRONT |
1 | ||
| 88539-90A02 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539-90A01 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A19 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A26 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.2 |
1 | ||
| 88605-90A25 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88610-90A04 |
FJ62,HJ61..HRF..ARL REAR |
1 | ||
| 88610-90A03 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-90A00 |
BJ60,FJ62,HJ6#..RHD |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
FJ62,HJ6#..ARL |
2 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-90A06 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88650-90A03 |
HJ6#..LUB;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88650-95J02 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A26 |
HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC) W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-90A28 |
FJ62,HJ61..HRF..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-90A33 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| Common parts | ||||
| 88569-12170 | ||||
| 88569-90A03 | ||||
| 90093-00610 | ||||
| 90099-00816 | ||||
| 90099-00930 | ||||
| 90159-60213 | ||||
| 90179-06115 | ||||
| 90480-26004 | ||||
| 91656-06301 | ||||
ILLUST NO. 1 OF 2(8708- )FJ62,HJ6#..GX,VX

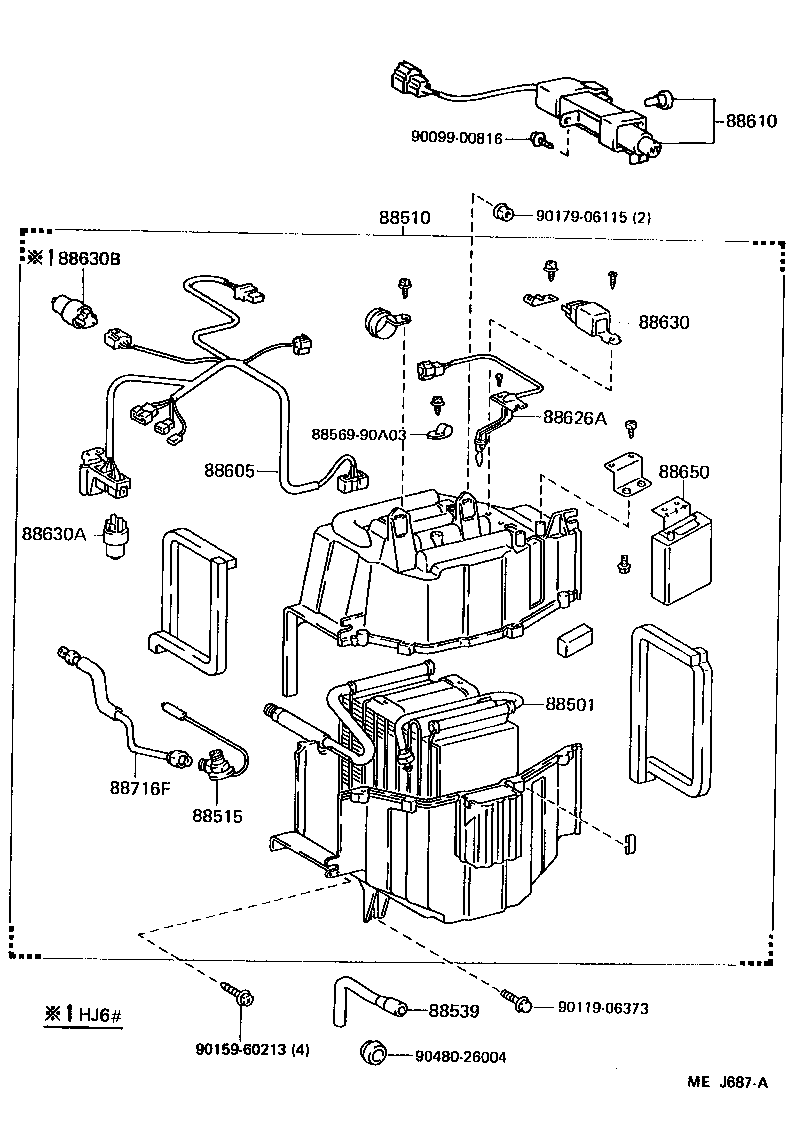

DUAL FRONT COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A08 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88501-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88501-90A05 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A17 |
HJ61..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A10 |
FJ62,HJ6#..LUB..ARL W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A29 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) |
1 | ||
| 88515-87003 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A00 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) FRONT |
1 | ||
| 88539-90A02 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539-90A01 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A19 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A26 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.2 |
1 | ||
| 88605-90A25 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88610-90A04 |
FJ62,HJ61..HRF..ARL REAR |
1 | ||
| 88610-90A03 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-90A00 |
BJ60,FJ62,HJ6#..RHD |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-90A00 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..(GX,VX)..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..(GX,VX)..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-03001 |
HJ6#..LUB;HJ60..RHD..STD..GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-90A06 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88650-90A03 |
HJ6#..LUB;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88650-95J02 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A26 |
HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC) W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-90A28 |
FJ62,HJ61..HRF..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-90A33 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| Common parts | ||||
| 88569-90A03 | ||||
| 90099-00816 | ||||
| 90119-06373 | ||||
| 90159-60213 | ||||
| 90179-06115 | ||||
| 90480-26004 | ||||
ILLUST NO. 2 OF 2(8708- )FJ62,HJ6#..GX,VX

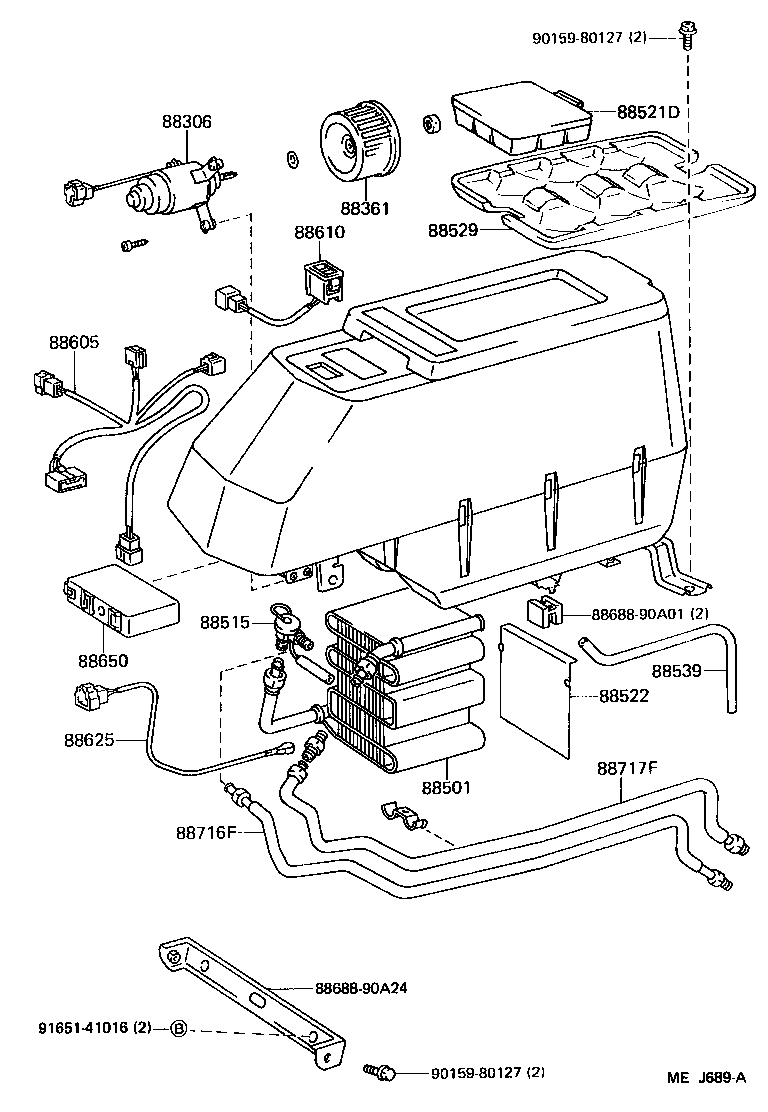

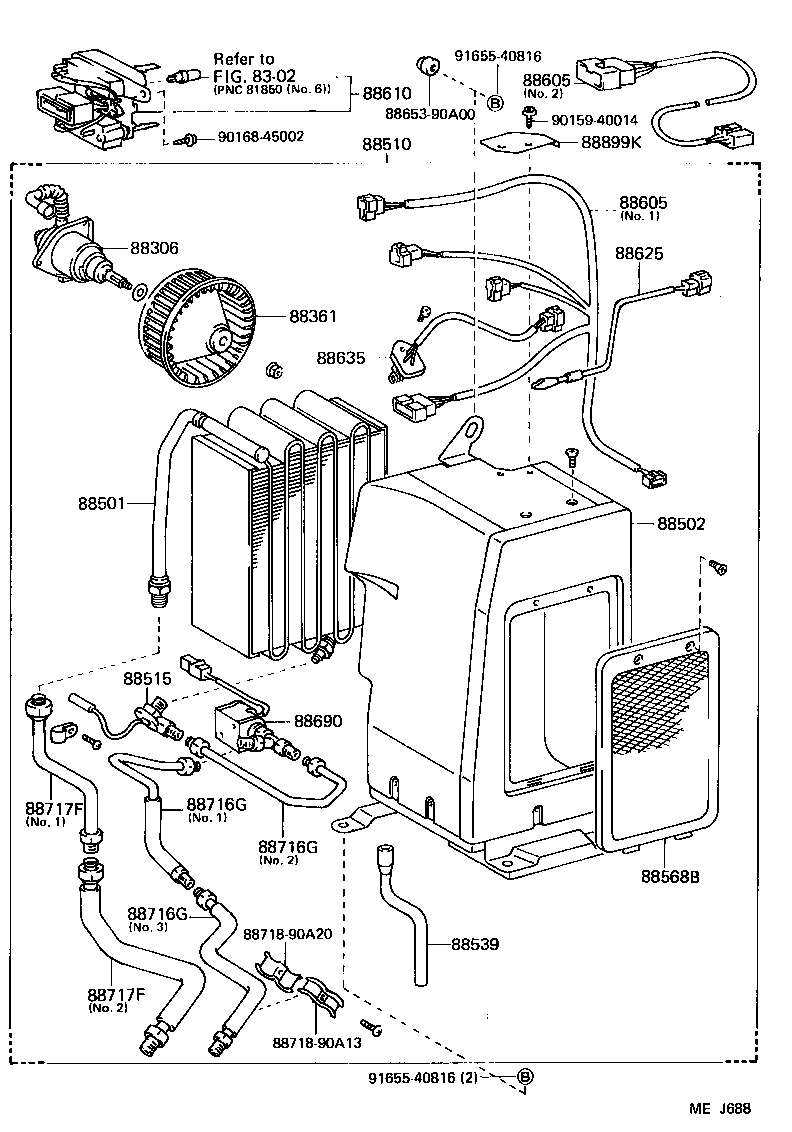

DUAL REAR CO0LER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-90A05 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) |
1 | ||
| 87104-87008 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 87105-14020 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A08 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88501-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88501-90A05 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-90A03 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A17 |
HJ61..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A10 |
FJ62,HJ6#..LUB..ARL W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88510-90A29 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) |
1 | ||
| 88515-87003 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A00 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) FRONT |
1 | ||
| 88539-90A02 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539-90A01 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-90A00 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A19 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A26 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.2 |
1 | ||
| 88605-90A25 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.1 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A19 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A26 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.2 |
1 | ||
| 88605-90A25 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88610-90A04 |
FJ62,HJ61..HRF..ARL REAR |
1 | ||
| 88610-90A03 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88625-87003 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-90A01 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-90A07 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-90A12 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.2 |
1 | ||
| 88716-90A11 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.1 |
1 | ||
| 88716-90A35 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.3 |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-90A12 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.2 |
1 | ||
| 88716-90A11 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.1 |
1 | ||
| 88716-90A35 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.3 |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-90A12 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.2 |
1 | ||
| 88716-90A11 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.1 |
1 | ||
| 88716-90A35 |
HJ6#..LUB;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..STD..GEN;FJ62..(4F,4FC)..LUB;HJ60..RHD..STD..GEN;FJ62..5F..GX..(ARL,GEN);FJ62..(4F,4FC)..SOB..(STD,VX) NO.3 |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-90A06 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.1 |
1 | ||
| 88717-90A11 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.2 |
1 | ||
| 88717-90A10 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-90A06 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.1 |
1 | ||
| 88717-90A11 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.2 |
1 | ||
| 88717-90A10 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| Common parts | ||||
| 88653-90A00 | ||||
| 88718-90A13 | ||||
| 88718-90A20 | ||||
| 90159-40014 | ||||
| 90168-45002 | ||||
| 91655-40816 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8708- )FJ62,HJ6#..GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-90A05 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) |
1 | ||
| 87104-87008 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 87105-14020 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A08 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88501-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88501-90A05 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) |
1 | ||
| 88515-87003 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88521D - CASE, ICE | ||||
| 88899-90A01 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
2 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-90A01 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-90A00 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A00 |
FJ62,HJ6#..HRF..(GX,VX)..(ARL,GEN) FRONT |
1 | ||
| 88539-90A02 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88539-90A01 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
HJ60..LUB;FJ62,HJ61..LUB..ARL;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A19 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88605-90A26 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.2 |
1 | ||
| 88605-90A25 |
HJ6#..HRF;FJ62..(4F,4FC)..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX W(DUAL AIR CONDITIONER),REAR,NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-90A06 |
FJ62,HJ61..HRF..ARL FRONT |
1 | ||
| 88610-90A04 |
FJ62,HJ61..HRF..ARL REAR |
1 | ||
| 88610-90A03 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) REAR |
1 | ||
| 88625-87003 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-90A06 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88650-90A03 |
HJ6#..LUB;HJ60..RHD..STD..GEN W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88650-95J02 |
HJ6#..HRF W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A26 |
HJ6#..LUB..ARL;FJ62..RHD..5F..LUB;FJ62,HJ60..RHD..(4F,4FC) W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-90A28 |
FJ62,HJ61..HRF..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-90A33 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-90A06 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.1 |
1 | ||
| 88717-90A11 |
HJ6#..HRF;FJ62..5F..HRF..VX..ME;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..HRF..(GX,VX) NO.2 |
1 | ||
| 88717-90A10 |
HJ61..HRF;FJ62..4FC..HRF;HJ60..LUB..GEN;FJ62..5F..VX..ME;FJ62..4F..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) COOL BOX |
1 | ||
| Common parts | ||||
| 88688-90A01 | ||||
| 88688-90A24 | ||||
| 90159-80127 | ||||
| 91651-41016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
