HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0907)

Click highlighted areas on diagram

diagram 86151 86151 86160 86160 86160B 86160B 86160B 86161D 86161D 86262B 86262B 86264B 86264B 9011906951 9015950105 9017906159 9017906159 9017906161 9018904057 9018904057 91611G0612 9354024025 9354024025 9354054014 9354054014
Part # Description Qty Price
Common parts
90119-06951
90159-50105
90179-06159
90179-06161
90189-04057
91611-G0612
93540-24025
93540-54014

(8708- )

Click highlighted areas on diagram

FRONT SPEAKER

diagram 8202 8202 86160 86160 86160 9015960014 9015960014 9018906043 9018906043 9411040600
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A01

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

RH

 1
86160-90A02

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A01

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

RH

 1
86160-90A02

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A01

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

RH

 1
86160-90A02

HJ6#..ARL;FJ62..STD..ARL;FJ62..(GX,VX)..(ARL,ME)

LH

 1
Common parts
90159-60014
90189-06043
94110-40600
Linked diagrams
8202

(8708- )FJ62,HJ6#..GX,VX

Click highlighted areas on diagram

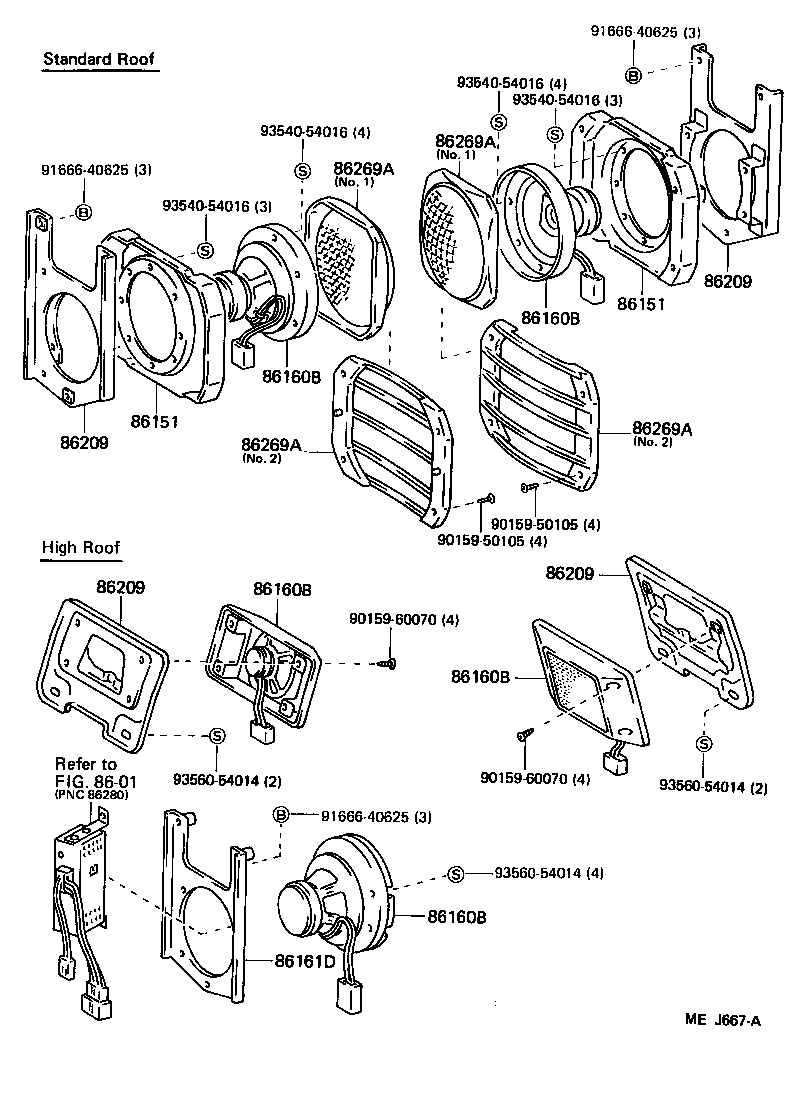

REAR SPEAKER

diagram 8601 86151 86151 86160B 86160B 86160B 86160B 86160B 86161D 86209 86209 86209 86209 86269A 86269A 86269A 86269A 9015950105 9015950105 9015960070 9015960070 9166640625 9166640625 9166640625 9354054016 9354054016 9354054016 9354054016 9356054014 9356054014 9356054014
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-90A04

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

ROOF SIDE

 2
86160-90A03

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

QUARTER SIDE

 1
86160B - SPEAKER ASSY, REAR
86160-90A04

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

ROOF SIDE

 2
86160-90A03

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

QUARTER SIDE

 1
86160B - SPEAKER ASSY, REAR
86160-90A04

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

ROOF SIDE

 2
86160-90A03

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

QUARTER SIDE

 1
86160B - SPEAKER ASSY, REAR
86160-90A04

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

ROOF SIDE

 2
86160-90A03

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

QUARTER SIDE

 1
86160B - SPEAKER ASSY, REAR
86160-90A04

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

ROOF SIDE

 2
86160-90A03

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

QUARTER SIDE

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-90A01

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

 1
86209 - BRACKET SUB-ASSY, SPEAKER
86209-90A01

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

 2
86209 - BRACKET SUB-ASSY, SPEAKER
86209-90A01

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

 2
86209 - BRACKET SUB-ASSY, SPEAKER
86209-90A01

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

 2
86209 - BRACKET SUB-ASSY, SPEAKER
86209-90A01

HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..LUB..GX

 2
Common parts
90159-50105
90159-60070
91666-40625
93540-54016
93560-54014
Linked diagrams
8601
