HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0108)

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85342 85342 85348 85348 85348 85348 85348D 85348D 85348D 85371 85372 85373 85373 85373 9011906098 9046710009 9095901116 9095901116
Part # Description Qty Price
Common parts
90119-06098
90467-10009
90959-01116

(8708- )

Click highlighted areas on diagram

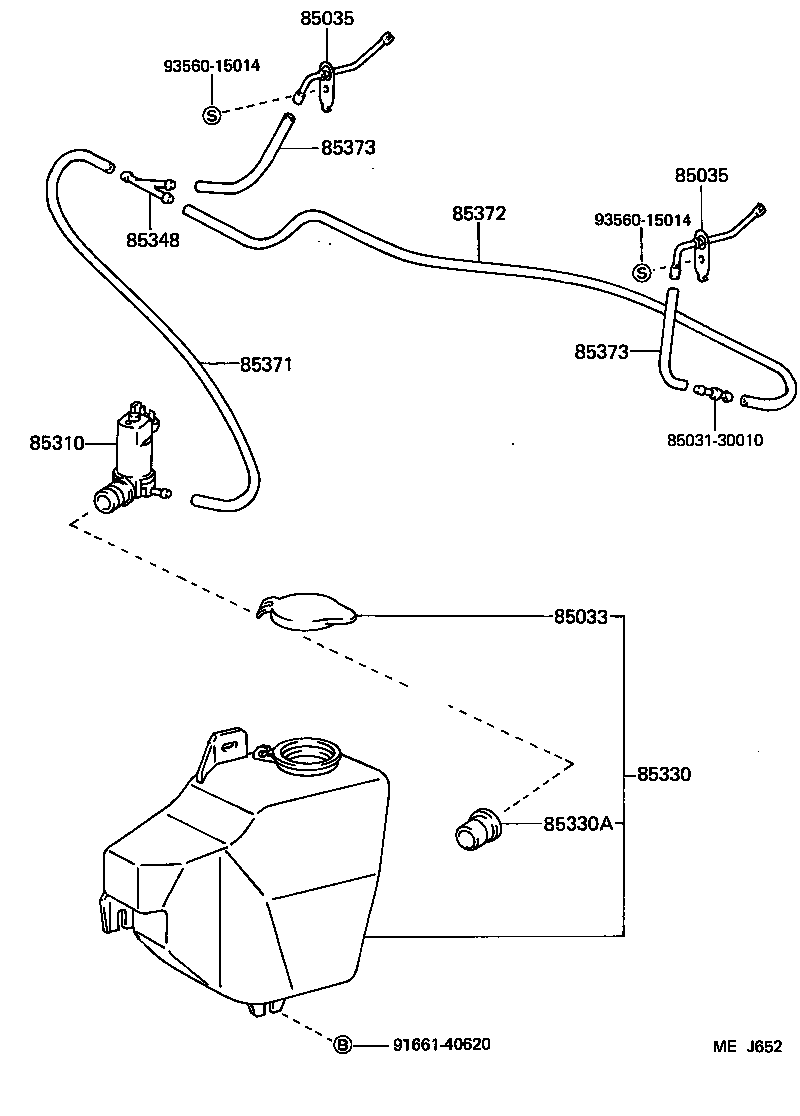

diagram 8503130010 85033 85035 85035 85310 85330 85330A 85348 85371 85372 85373 85373 9166140620 9356015014 9356015014
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-90A00

BJ60,FJ62,HJ6#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85341-90A04

HJ61;FJ62..4FC

LH

 1
85341-90A07

HJ61;FJ62..4FC

RH

 1
85035 - NOZZLE SUB-ASSY, WASHER
85341-90A04

HJ61;FJ62..4FC

LH

 1
85341-90A07

HJ61;FJ62..4FC

RH

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

BJ60,FJ62,HJ6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-90A06

BJ60,FJ62,HJ6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

BJ60,FJ62,HJ6#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

BJ60,FJ62,HJ6#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

HJ61;FJ62..4FC

L=1000

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

HJ61;FJ62..4FC

L=1000

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

HJ61;FJ62..4FC

L=1000

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

HJ61;FJ62..4FC

L=1000

 2
Common parts
85031-30010
91661-40620
93560-15014
