HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LUB

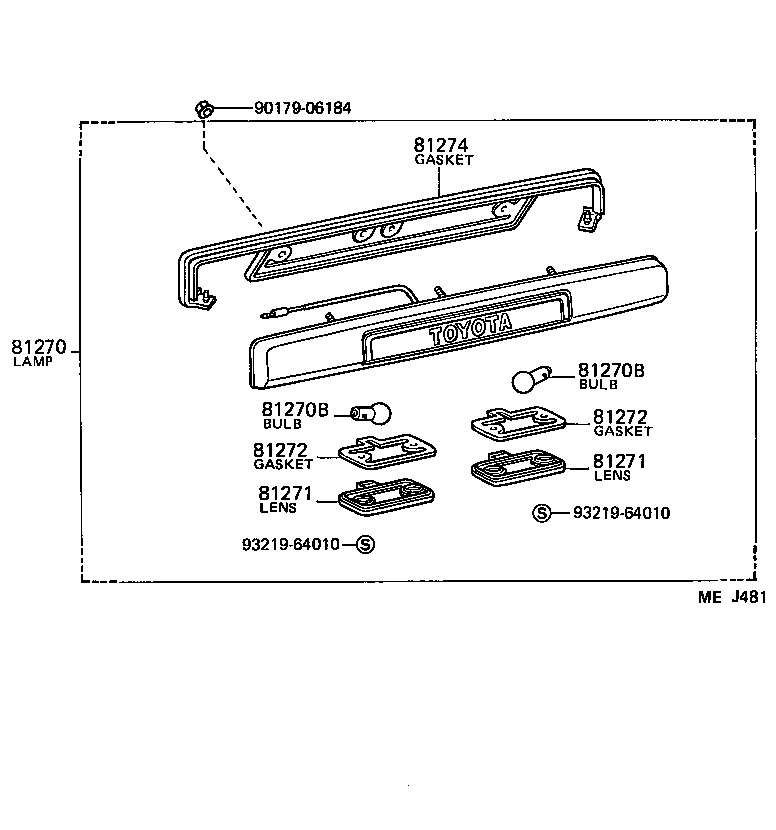

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81271 81272 81272 81274 9017906184 9321964010 9321964010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-90A16

FJ62..LUB..GX..ME;FJ62,HJ6#..LUB..(ARL,GEN)

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

FJ62,HJ6#..LUB

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

FJ62,HJ6#..LUB

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

FJ62,HJ6#..LUB

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

FJ62,HJ6#..LUB

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

FJ62,HJ6#..LUB

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

FJ62,HJ6#..LUB

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-95A00

FJ62,HJ6#..LUB

 1
Common parts
90179-06184
93219-64010
