HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

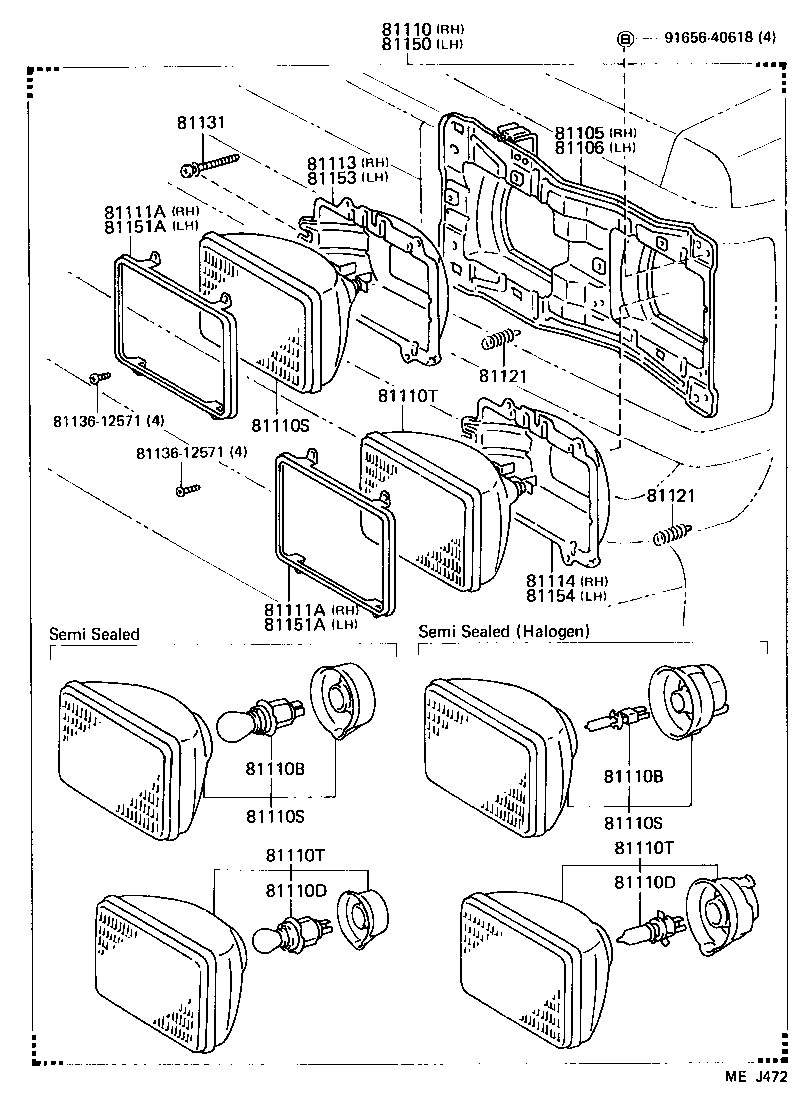

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110D 81110D 81110S 81110S 81110S 81110T 81110T 81110T 81111A 81111A 81113 81114 81121 81121 81131 8113612571 8113612571 81150 81151A 81151A 81153 81154 9165640618
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-90A27

BJ60,FJ62,HJ6#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-90A27

BJ60,FJ62,HJ6#

 1
81110 - HEADLAMP ASSY, RH
81110-90A25

FJ62,HJ6#..ARL

 1
81110S - SEALED BEAM UNIT, NO.1
90981-05065

FJ62,HJ6#..ARL

12V 70W,*WB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05065

FJ62,HJ6#..ARL

12V 70W,*WB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05065

FJ62,HJ6#..ARL

12V 70W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05066

FJ62,HJ6#..ARL

12V 55/65W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05066

FJ62,HJ6#..ARL

12V 55/65W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05066

FJ62,HJ6#..ARL

12V 55/65W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

BJ60,FJ62,HJ6#

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

BJ60,FJ62,HJ6#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-90B04

BJ60,FJ62,HJ6#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-22391

BJ60,FJ62,HJ6#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

BJ60,FJ62,HJ6#

 4
81121 - SPRING, HEADLAMP TENSION
81121-14320

BJ60,FJ62,HJ6#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

BJ60,FJ62,HJ6#

 8
81150 - HEADLAMP ASSY, LH
81150-90A25

FJ62,HJ6#..ARL

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

BJ60,FJ62,HJ6#

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

BJ60,FJ62,HJ6#

 2
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-90B04

BJ60,FJ62,HJ6#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-22391

BJ60,FJ62,HJ6#

 1
Common parts
81136-12571
91656-40618
