HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HJ61

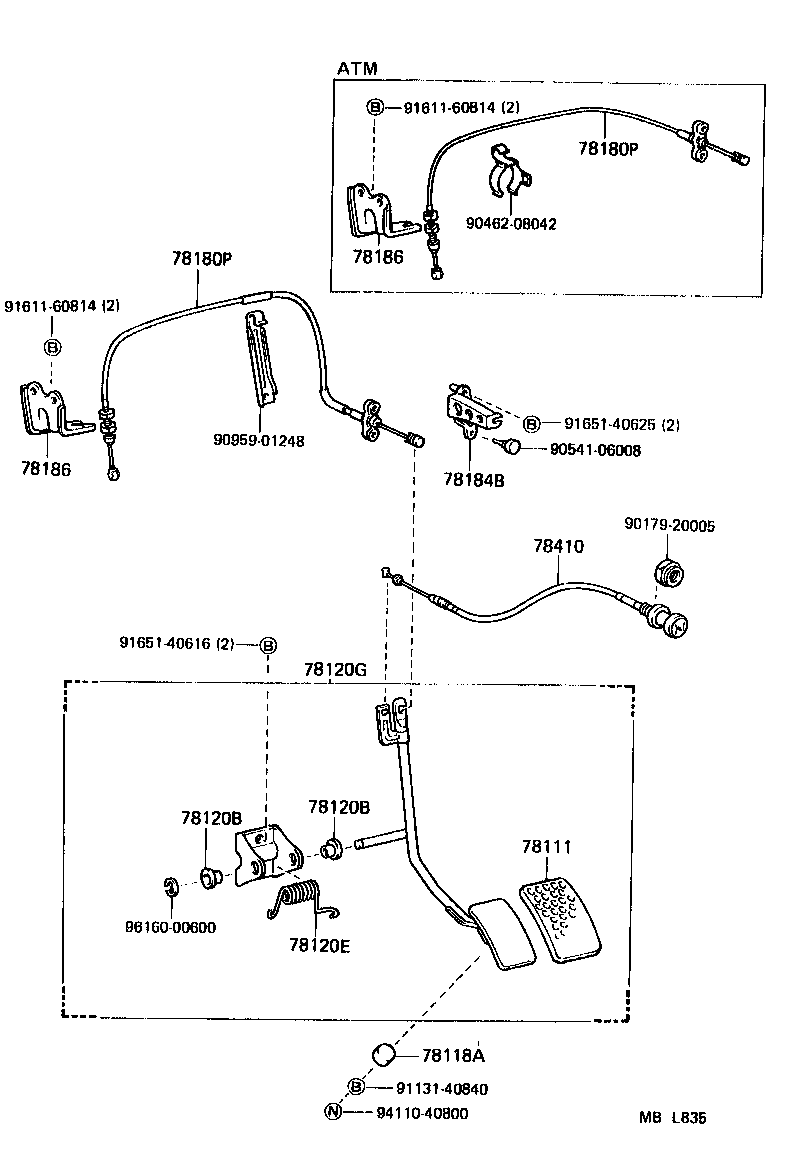

Click highlighted areas on diagram

diagram 78111 78118A 78120B 78120B 78120E 78120G 78180P 78180P 78184B 78186 78186 78410 9017920005 9046208042 9054106008 9095901248 9113140840 9161160814 9161160814 9165140616 9165140625 9411040800 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-95110

BJ60,FJ62,HJ6#

 1
78118A - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BJ60,FJ62,HJ6#..RHD

 2
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BJ60,FJ62,HJ6#..RHD

 2
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-26046

BJ60,FJ62,HJ6#..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-90A05

BJ60,HJ6#..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-90A32

HJ61..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-90A32

HJ61..5F

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90A02

HJ61

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-90A03

HJ61

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-90A03

HJ61

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A00

BJ60,FJ62,HJ6#..RHD

 1
Common parts
90179-20005
90462-08042
90541-06008
90959-01248
91131-40840
91611-60814
91651-40616
91651-40625
94110-40800
96160-00600
