HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

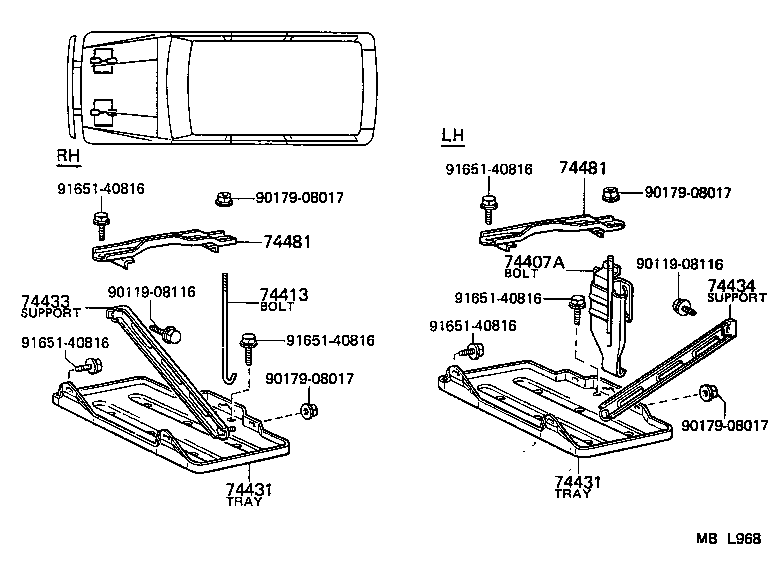

Click highlighted areas on diagram

diagram 74407A 74413 74431 74431 74433 74434 74481 74481 9011908116 9011908116 9017908017 9017908017 9017908017 9017908017 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-90A00

FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD

 1
74431 - TRAY, BATTERY
74431-90A00

HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
74431 - TRAY, BATTERY
74431-90A00

HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
74433 - SUPPORT, BATTERY TRAY, RH
74433-90A00

FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90A00

HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90A00

HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD

 1
Common parts
90119-08116
90179-08017
91651-40816
