HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0907)HT,SOT

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69058 69059A 69059B 69062 69503 69503A 69503A 69503A 69511 69511 69551 69581 69597 69685 69685 69685 69685
Part # Description Qty Price

(8708- )

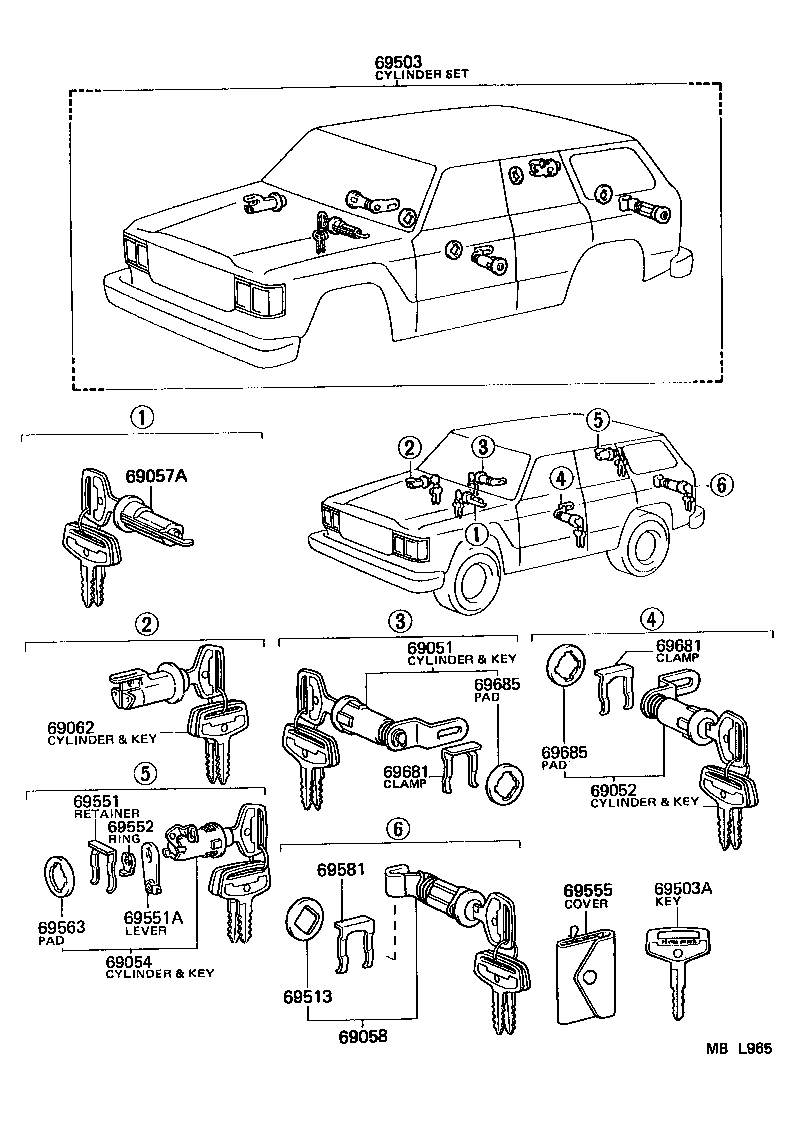

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69058 69062 69503 69503A 69513 69551 69551A 69552 69555 69563 69581 69681 69681 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-90A04

BJ60,FJ62,HJ6#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-90A04

BJ60,FJ62,HJ6#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-90A00

HJ61..GX;HJ60..LUB;FJ62..LUB..GX..ME;FJ62..HRF..LUB..GX;FJ62..SRF..LUB..(ARL,GEN)

 1
69055-90A04

HJ61..GX;HJ60..LUB;FJ62..LUB..GX..ME;FJ62..HRF..LUB..GX;FJ62..SRF..LUB..(ARL,GEN)

W(MAGNET LOCK)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-90A06

FJ62,HJ61;HJ60..ARL

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-90A03

BJ60,FJ62,HJ6#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30030

BJ60,FJ62,HJ6#

 1
69503 - CYLINDER SET, LOCK
69005-90A55

HJ6#..GX..ARL;FJ62..LUB..GX..ME;FJ62..HRF..LUB..GX;FJ62..SRF..LUB..(ARL,GEN)

W(*PW)

 1
69005-90A54

HJ6#..GX..ARL;FJ62..LUB..GX..ME;FJ62..HRF..LUB..GX;FJ62..SRF..LUB..(ARL,GEN)

 1
69503A - KEY, BLANK
90999-00066

FJ62,HJ61;HJ60..ARL

MASTER KEY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

BJ60,FJ62,HJ6#

 1
69551 - RETAINER, BACK DOOR LOCK CYLINDER
69551-13020

FJ62,HJ6#..LUB

 1
69551A - LEVER, BACK DOOR KEY CYLINDER
69551-90A00

FJ62..4FC..LUB;HJ60..LHD..4F..GX;HJ6#..(4FC,5F)..LUB;FJ62..5F..LUB..(ARL,ME);FJ62..LHD..MTM..LUB..GEN

 1
69552 - RING, BACK DOOR KEY CYLINDER LEVER
69552-95A00

FJ62..4FC..LUB;HJ60..LHD..4F..GX;HJ6#..(4FC,5F)..LUB;FJ62..5F..LUB..(ARL,ME);FJ62..LHD..MTM..LUB..GEN

 1
69555 - COVER, KEY
69555-20010

BJ60,FJ62,HJ6#

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69563-90A01

FJ62,HJ6#..LUB

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

BJ60,FJ62,HJ6#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

FJ62,HJ6#..LUB

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

FJ62,HJ6#..LUB

 2
69685 - PAD, LOCK CYLINDER
69513-90A00

BJ60,FJ62,HJ6#

 2
69685 - PAD, LOCK CYLINDER
69513-90A00

BJ60,FJ62,HJ6#

 2
