HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

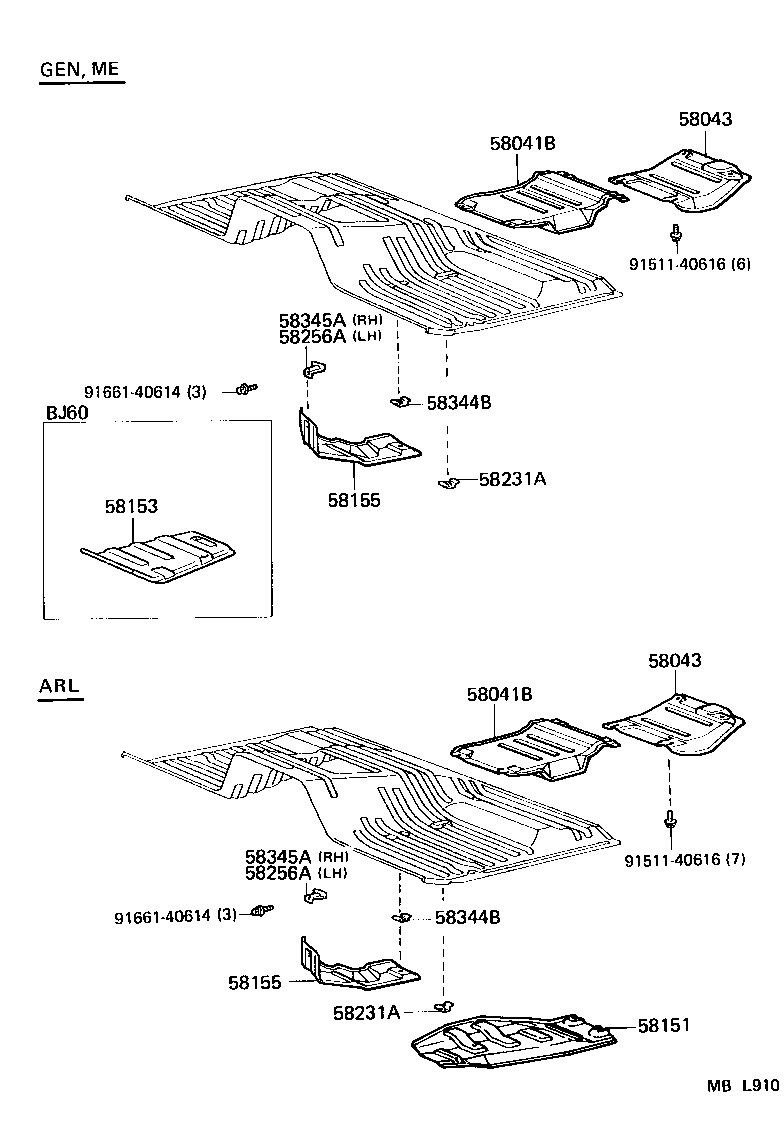

Click highlighted areas on diagram

diagram 58041B 58041B 58043 58043 58151 58153 58155 58155 58231A 58231A 58256A 58256A 58344B 58344B 58345A 58345A 9151140616 9151140616 9166140614 9166140614
Part # Description Qty Price
58041B - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, FRONT
58041-90A01

BJ60,FJ62,HJ6#

 1
58041B - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, FRONT
58041-90A01

BJ60,FJ62,HJ6#

 1
58043 - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR
58043-90A00

BJ60,FJ62,HJ6#

 1
58043 - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR
58043-90A00

BJ60,FJ62,HJ6#

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-90A05

FJ62,HJ6#..ARL

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-90A01

FJ62,HJ6#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-90A01

FJ62,HJ6#

 1
58231A - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58231-90A00

HJ61..HRF..GX;FJ62..HRF..ARL

 2
58231-90A00

FJ62,HJ61..HRF..ARL

 2
58231-90A00

FJ62,HJ6#

 1
58231A - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58231-90A00

HJ61..HRF..GX;FJ62..HRF..ARL

 2
58231-90A00

FJ62,HJ61..HRF..ARL

 2
58231-90A00

FJ62,HJ6#

 1
58256A - BRACKET, FRONT FLOOR HARNESS
58256-90B00

BJ60,FJ62,HJ6#

 1
58256A - BRACKET, FRONT FLOOR HARNESS
58256-90B00

BJ60,FJ62,HJ6#

 1
58344B - BRACKET, FUEL HOSE PROTECTOR, REAR
58344-90A01

FJ62,HJ6#..RHD

 1
58344-90A01

BJ60,FJ62,HJ6#

 2
58344B - BRACKET, FUEL HOSE PROTECTOR, REAR
58344-90A01

FJ62,HJ6#..RHD

 1
58344-90A01

BJ60,FJ62,HJ6#

 2
58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-90A00

BJ60,FJ62,HJ6#

 1
58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-90A00

BJ60,FJ62,HJ6#

 1
Common parts
91511-40616
91661-40614
