HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

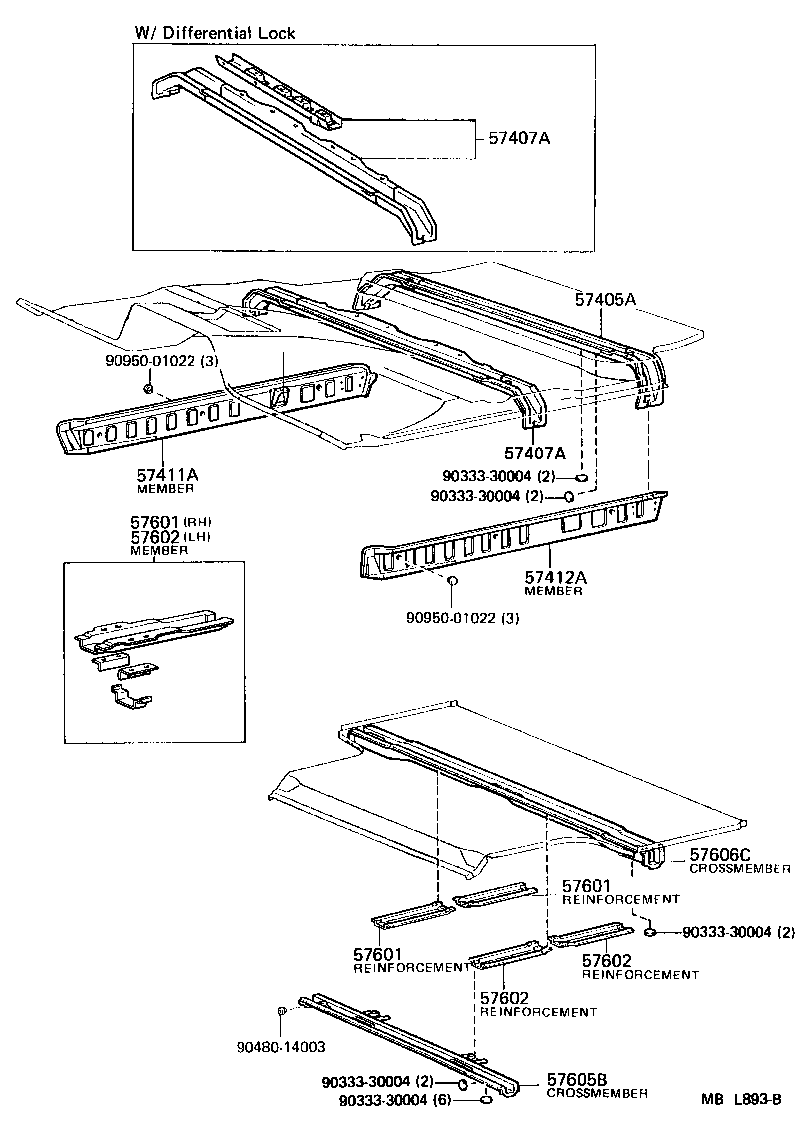

Click highlighted areas on diagram

diagram 57405A 57407A 57407A 57411A 57412A 57601 57601 57601 57602 57602 57602 57605B 57606C 9033330004 9033330004 9033330004 9033330004 9033330004 9048014003 9095001022 9095001022
Part # Description Qty Price
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-90A07

BJ60,FJ62,HJ6#

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-90A50

FJ62,HJ61..HRF..ARL

W(*DL & REAR HEATER)

 1
57407-90A50

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

 1
57407-90A59

FJ62,HJ61..HRF..ARL

W(*DL)

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-90A50

FJ62,HJ61..HRF..ARL

W(*DL & REAR HEATER)

 1
57407-90A50

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

 1
57407-90A59

FJ62,HJ61..HRF..ARL

W(*DL)

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-90A05

BJ60,FJ62,HJ6#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-90A05

BJ60,FJ62,HJ6#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-90A01

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-90A01

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-90A01

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-90A00

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-90A00

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-90A00

HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL

 2
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-90A03

BJ60,FJ62,HJ6#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-90A06

FJ62,HJ61..HRF..ARL

 1
Common parts
90333-30004
90480-14003
90950-01022
