HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)RHD ; (9908-0007)FZJ75,HZJ70,75..RHD

Click highlighted areas on diagram

diagram 55042A 55301 55308B 55315A 55315A 55331 5534560010 5534560010 55349A 55349A 55354 55355B 55356B 55357A 55358K 55381B 55401E 55403 55404C 55412C 55413C 55432D 55468C 55477A 55497A 55498A 55501A 55505D 55521C 55522B 55523 55524 55526 55526 55533 55539 55539B 55539C 55539D 55547 55556 55560A 55561A 55581A 55650 55660 55670 55670 55950 55959 55959A 55969 55969A 55970A 55980A 55989 7451 9011906067 9011906350 9011906350 9011906350 9015940159 9015940159 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016840043 9016850027 9017906070 9017906115 9017908102 9018305094 9018905024 9033903003 9046706157 9046804067 9046805047 9054103005 9095001329 9095001725 9162640618 9162640618 9162640618 9162640618 9162640618 9162640618 9165140612 9165160816 9165160816 9165160816 9165160816 9331116010 9354055025 9356055016 9356055016 9356055016 9356055016 9356815012 9356815012 9356855016 9356855016
Part # Description Qty Price
Common parts
55345-60010
90119-06067
90119-06350
90159-40159
90164-50008
90168-40043
90168-50027
90179-06070
90179-06115
90179-08102
90183-05094
90189-05024
90339-03003
90467-06157
90468-04067
90468-05047
90541-03005
90950-01329
90950-01725
91626-40618
91651-40612
91651-60816
93311-16010
93540-55025
93560-55016
93568-15012
93568-55016
Linked diagrams
7451

(8708- )RHD

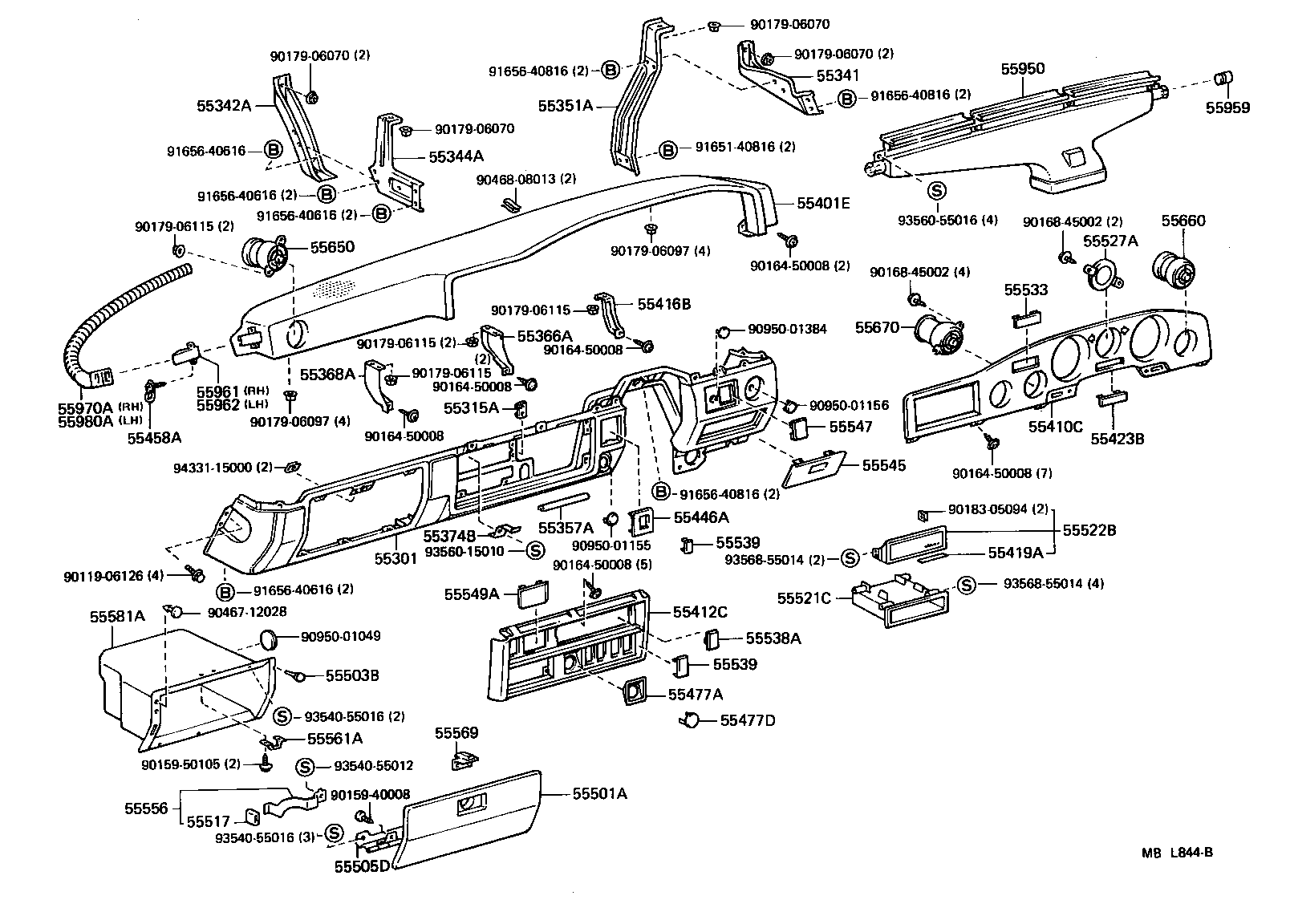

Click highlighted areas on diagram

diagram 55301 55315A 55341 55342A 55344A 55351A 55357A 55366A 55368A 55374B 55401E 55410C 55412C 55416B 55419A 55423B 55446A 55458A 55477A 55477D 55501A 55503B 55505D 55517 55521C 55522B 55527A 55533 55538A 55539 55539 55545 55547 55549A 55556 55561A 55569 55581A 55650 55660 55670 55950 55959 55961 55962 55970A 55980A 9011906126 9015940008 9015950105 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016845002 9016845002 9017906070 9017906070 9017906070 9017906070 9017906097 9017906097 9017906115 9017906115 9017906115 9017906115 9018305094 9046712028 9046808013 9095001049 9095001155 9095001156 9095001384 9165140816 9165640616 9165640616 9165640616 9165640616 9165640816 9165640816 9165640816 9354055012 9354055016 9354055016 9356015010 9356055016 9356855014 9356855014 9433115000
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-90A6905

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
55301-90A6903

HJ61..HRF

SHADOW GRAY,TRIM1#

 1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2
55342-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3
55344-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55357A - PROTECTOR, EDGE, NO.1
55357-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60

 1
55366A - BRACKET, RADIO MOUNTING, NO.1
55366-90A02

BJ60,FJ62,HJ6#

 1
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-90A03

BJ60,FJ62,HJ6#

 1
55374B - BRACKET, INSTRUMENT PANEL
55374-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-90A0403

FJ62,HJ6#..RHD..LUB

SHADOW GRAY,TRIM1#

 1
55401-90A0405

HJ61

SEPIA BROWN,TRIM4#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-90G26

FJ62,HJ6#..ARL

 1
55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55412-90A0903

FJ62,HJ6#..RHD..LUB

SHADOW GRAY,TRIM1#

 1
55412-90A0905

BJ60,FJ62,HJ6#..RHD

SEPIA BROWN,TRIM4#

 1
55416B - BRACKET, INSTRUMENT PAD, NO.2
55416-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-90A0106

BJ60,HJ60;FJ62..5F..VX..ME;FJ62,HJ61..MTM..(GX,STD)

SEPIA BROWN,TRIM4#

 1
55446-90A0113

BJ60,HJ60..GX,VX;FJ62..5F..VX..ME;FJ62,HJ61..MTM..GX

SHADOW GRAY,TRIM1#

 1
55446-90A0206

HJ60..GX,VX;HJ60..RHD..STD;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD)

W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4#

 1
55446-90A0213

BJ60,HJ60..GX,VX;FJ62..5F..VX..ME;FJ62,HJ61..MTM..GX

W(ONE TOUCH 2-4 SELECTOR),SHADOW GRAY,TRIM1#

 1
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-90A00

HJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60

 2
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-87001

BJ60,FJ62,HJ6#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-90A0023

HJ60..LUB;BJ60,FJ62,HJ61..GX,VX

SHADOW GRAY,TRIM1#

 1
55501-90A0006

HJ60..ARL,GEN;BJ60,FJ62,HJ61

SEPIA BROWN,TRIM4#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-03015

HJ60..ARL,GEN;BJ60,FJ62,HJ61

 2
55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55505-90A00

HJ60..ARL,GEN;BJ60,FJ62,HJ61

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-14010

HJ60..ARL,GEN;BJ60,FJ62,HJ61

 1
55533 - COVER, AUTO CLOCK HOLE
55533-90A00

FJ62..STD..ME;BJ60,HJ6#..GX,STD;FJ62..(GX,STD)..(ARL,GEN)

 1
55538A - COVER, COOLER SWITCH HOLE
55538-22010

BJ60,HJ61;FJ62..STD..ME;FJ62,HJ60..ARL,GEN

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BJ60,FJ62,HJ6#..GX,VX

BLACK,TRIM1#,4#

 1
55539-3201001

BJ60,HJ6#..GX;FJ62..GX..(ARL,GEN);FJ62..5F..SRF..SOB..GX..ME

BLACK,TRIM1#,4#

 2
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BJ60,FJ62,HJ6#..GX,VX

BLACK,TRIM1#,4#

 1
55539-3201001

BJ60,HJ6#..GX;FJ62..GX..(ARL,GEN);FJ62..5F..SRF..SOB..GX..ME

BLACK,TRIM1#,4#

 2
55545 - COVER, FUSE BOX OPENING
55545-90A0103

BJ60,FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
55545-90A0106

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-90A00

BJ60,HJ6#;FJ62..GX,STD;FJ62..VX..(ARL,GEN)

 1
55549A - COVER, REAR COOLER SWITCH HOLE
55549-90A00

BJ60,FJ62,HJ6#

 1
55556 - ARM, GLOVE COMPARTMENT DOOR CHECK
55556-90A00

BJ60,FJ62,HJ6#..RHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-90A00

BJ60,FJ62,HJ6#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-90A0006

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
55569-90A0023

BJ60,FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
55581A - COMPARTMENT, GLOVE
55581-90A04

BJ60,FJ62,HJ6#..RHD

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-90A02

BJ60,FJ62,HJ6#..ARL,GEN

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-90A00

BJ60,FJ62,HJ6#..ARL,GEN

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90A02

BJ60,FJ62,HJ6#..ARL,GEN

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-90A00

BJ60,FJ62,HJ6#..RHD

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

BJ60,FJ62,HJ6#

 2
Common parts
90119-06126
90159-40008
90159-50105
90164-50008
90168-45002
90179-06070
90179-06097
90179-06115
90183-05094
90467-12028
90468-08013
90950-01049
90950-01155
90950-01156
90950-01384
91651-40816
91656-40616
91656-40816
93540-55012
93540-55016
93560-15010
93560-55016
93568-55014
94331-15000
