HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

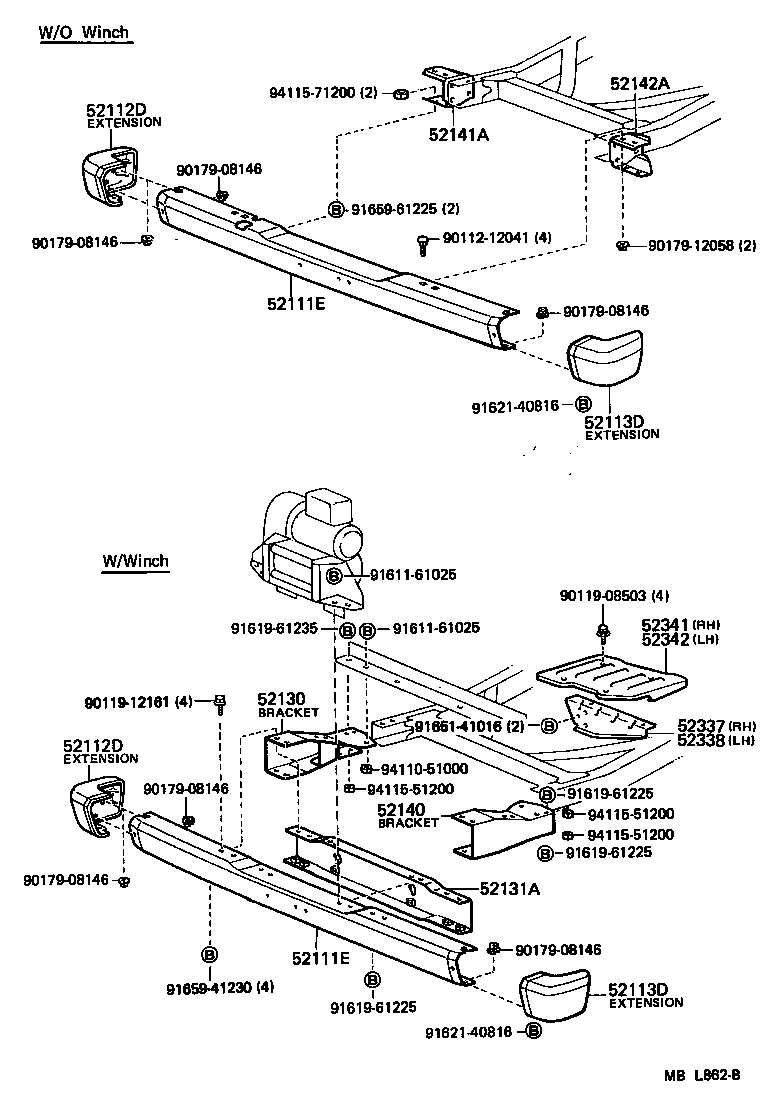

Click highlighted areas on diagram

diagram 52111E 52111E 52112D 52112D 52113D 52113D 52130 52131A 52140 52141A 52142A 52337 52338 52341 52342 9011212041 9011908503 9011912161 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9017912058 9161161025 9161161025 9161961225 9161961225 9161961225 9161961235 9162140816 9162140816 9165141016 9165941230 9165961225 9411051000 9411551200 9411551200 9411551200 9411571200
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-90A02

FJ62..STD..ME;FJ62,HJ61..5F..VX..ARL;BJ60,FJ62,HJ6#..(GX,STD)..(ARL,GEN)

 1
52111E - BAR, FRONT BUMPER
52111-90A02

FJ62..STD..ME;FJ62,HJ61..5F..VX..ARL;BJ60,FJ62,HJ6#..(GX,STD)..(ARL,GEN)

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-90A00

BJ60,FJ62,HJ6#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-90A00

BJ60,FJ62,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-90A00

BJ60,FJ62,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-90A00

BJ60,FJ62,HJ6#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-60050

BJ60,FJ62,HJ6#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-60040

BJ60,FJ62,HJ6#

 1
Common parts
90112-12041
90119-08503
90119-12161
90179-08146
90179-12058
91611-61025
91619-61225
91619-61235
91621-40816
91651-41016
91659-41230
91659-61225
94110-51000
94115-51200
94115-71200
