HJ61RG-MNZXQ (1987)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
BJ60,FJ62,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
BJ60,FJ62,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60052 |
BJ60,FJ62,HJ6#..GX,VX |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14032 |
BJ60,FJ62,HJ6#..GX,VX L=200 |
1 | ||
| 90117-14180 |
BJ60,FJ62,HJ6#..GX,VX L=205 |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60052 |
BJ60,FJ62,HJ6#..GX,VX |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 48306-60050 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-60050 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
BJ60,FJ62,HJ6#..GX,VX |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
BJ60,FJ62,HJ6#..GX,VX |
4 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69105 |
BJ60,FJ62,HJ6#..GX,VX MARK 48531-60190 |
1 | ||
| 48531-69125 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
8 | ||
| 90385-19057 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
8 | ||
| 90385-19057 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
8 | ||
| 90385-19057 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
8 | ||
| 90385-19057 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-69045 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) W(7JJ-15 DISC WHEEL) |
1 | ||
| 48541-69025 |
BJ60,FJ62,HJ6#..GX,VX MARK 48541-60050 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60020 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60040 |
BJ60,FJ62,HJ6#..GX,VX |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30050 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-27010 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48825-60031 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91651-40825 | ||||
| 94115-51400 | ||||
| 94180-41000 | ||||
| 94183-00800 | ||||

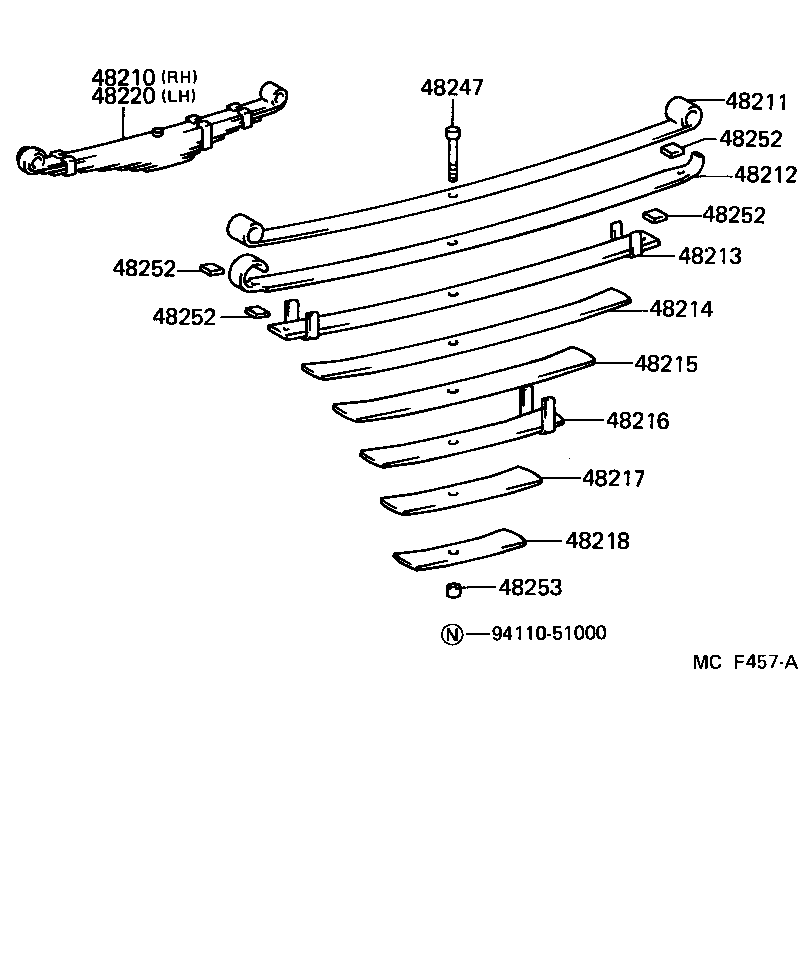

ILLUST NO. 2 OF 2(8708- )GX,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60670 |
FJ62..5F..SRF..SOB..GX..ME;FJ62,HJ61..5F..HRF..(ARL,ME) |
1 | ||
| 48210-60690 |
FJ62..5F..HRF..VX;FJ62,HJ61..HRF..GX..ARL 8-LEAF,W(7JJ-15 DISC WHEEL) |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48211-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48211-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48211-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48212-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48212-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48212-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48202-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48202-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48202-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48214-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48214-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48214-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48215-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48215-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48215-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48203-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48203-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48203-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48217-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48217-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48217-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-60690 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),DRIVER'S SEAT SIDE |
1 | ||
| 48218-60660 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME PASSENGER SEAT SIDE |
1 | ||
| 48218-60680 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL),PASSENGER SEAT SIDE |
1 | ||
| 48218-60670 |
FJ62..4FC..SOB;FJ62..5F..HRF..ME;FJ62,HJ61..HRF..ARL;FJ62..5F..SRF..SOB..GX..ME DRIVER'S SEAT SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60660 |
FJ62..4FC..SRF..LUB;FJ62..5F..SRF..SOB..GX..ME;FJ62,HJ61..5F..HRF..(ARL,ME) 8-LAEF |
1 | ||
| 48210-60680 |
FJ62..5F..HRF..VX;FJ62..4FC..SRF..LUB;FJ62,HJ61..HRF..GX..ARL 8-LAEF,W(7JJ-15 DISC WHEEL) |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60660 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48252-26070 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL) |
14 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48252-26070 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL) |
14 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48252-26070 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL) |
14 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ6#..GX,VX |
8 | ||
| 48252-26070 |
HJ61..HRF;FJ62..HRF..VX;FJ62..HRF..GX..ARL W(7JJ-15 DISC WHEEL) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-15010 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
