HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

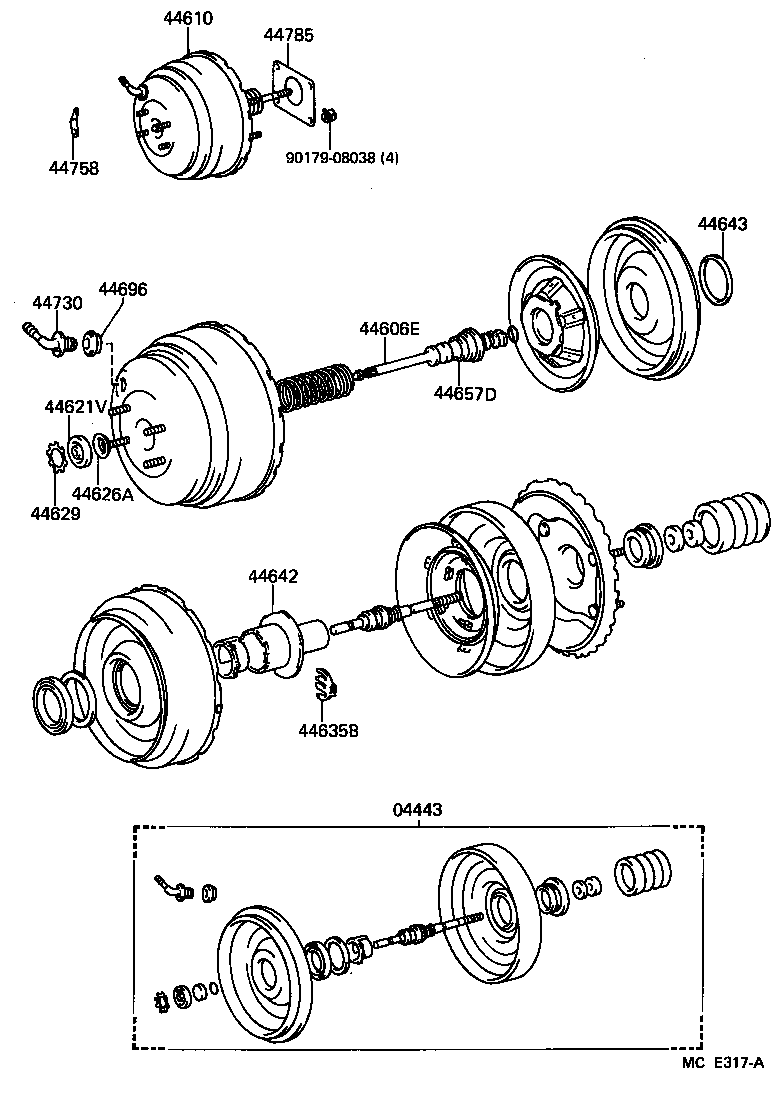

ILLUST NO. 1 OF 2(8708- )ARL

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 44696 44730 44758 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60320

HJ6#..ARL

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

FJ62,HJ6#..ARL

 1
44610 - BOOSTER ASSY, BRAKE
44610-60520

HJ6#..ARL

 1
44621V - SEAL, BOOSTER BODY
44621-14030

FJ62,HJ6#..ARL

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

FJ62,HJ6#..ARL

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

FJ62,HJ6#..ARL

 1
44635B - KEY, VALVE STOPPER
44635-20800

FJ62,HJ6#..ARL

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

FJ62,HJ6#..ARL

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

FJ62,HJ6#..ARL

 1
44657D - CASE, REACTION DISC
44657-28370

FJ62,HJ6#..ARL

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ60,FJ62,HJ6#

 1
Common parts
90179-08038

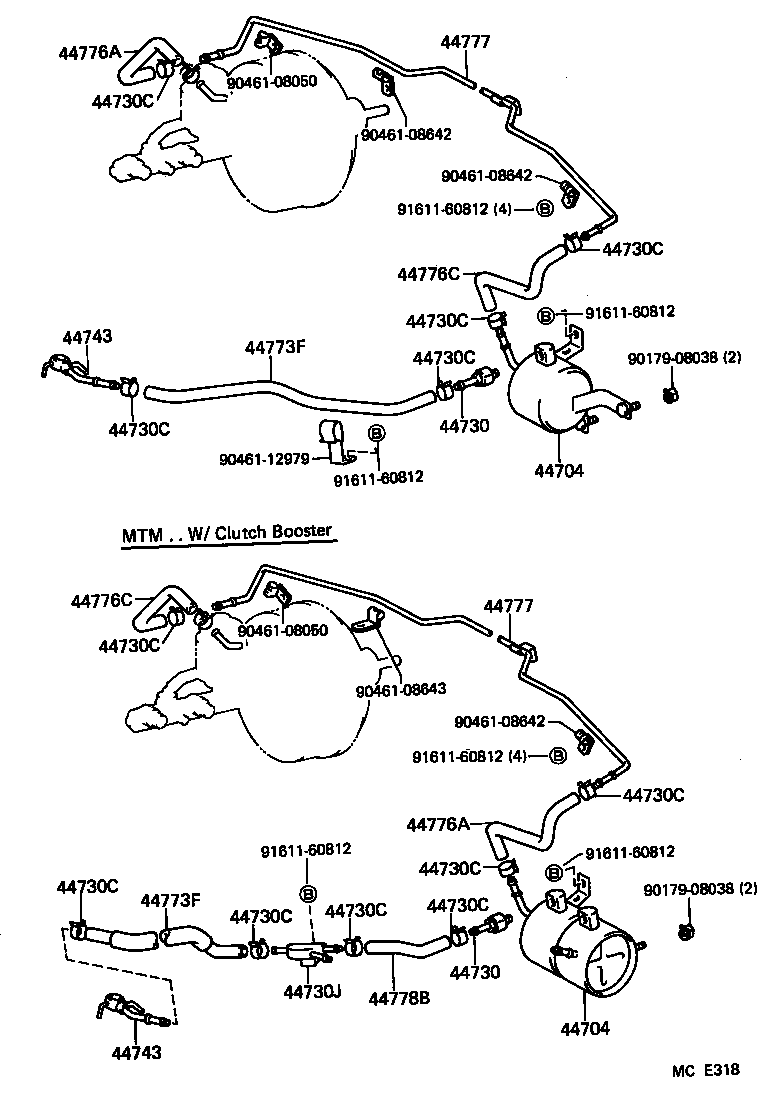

ILLUST NO. 2 OF 2(8708- )HJ6#..RHD

Click highlighted areas on diagram

diagram 44704 44704 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730J 44743 44743 44773F 44773F 44776A 44776A 44776C 44776C 44777 44777 44778B 9017908038 9017908038 9046108050 9046108050 9046108642 9046108642 9046108642 9046108643 9046112979 9161160812 9161160812 9161160812 9161160812 9161160812 9161160812
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60060

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 1
44704-60050

BJ60,HJ61;HJ60..RHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60060

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 1
44704-60050

BJ60,HJ61;HJ60..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

BJ60..LHD;HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 8
90467-16002

BJ60,HJ61;HJ60..RHD

 6
44730J - WAY(FOR BOOSTER VACUUM)
90413-09023

HJ6#..RHD..MTM

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09115

HJ61

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09115

HJ61

 1
44773F - HOSE, UNION TO CHECK VALVE
95444-09550

HJ6#..RHD

 1
44773-60080

HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 1
44773F - HOSE, UNION TO CHECK VALVE
95444-09550

HJ6#..RHD

 1
44773-60080

HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
95441-09200

HJ6#..RHD

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
95441-09200

HJ6#..RHD

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09270

HJ6#..RHD

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09270

HJ6#..RHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60091

HJ6#..RHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60091

HJ6#..RHD

 1
44778B - HOSE, WAY TO CHECK VALVE
95441-09140

HJ6#..RHD..MTM

 1
Common parts
90179-08038
90461-08050
90461-08642
90461-08643
90461-12979
91611-60812
