HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0701)

Click highlighted areas on diagram

diagram 36409 36409 36409C 36409C 36481 36481B 36481C 36482 91611B0816 91611B0816 91611B0816 91611B0816 9613241500 9613241500
Part # Description Qty Price
Common parts
91611-B0816
96132-41500

(8708- )HJ61

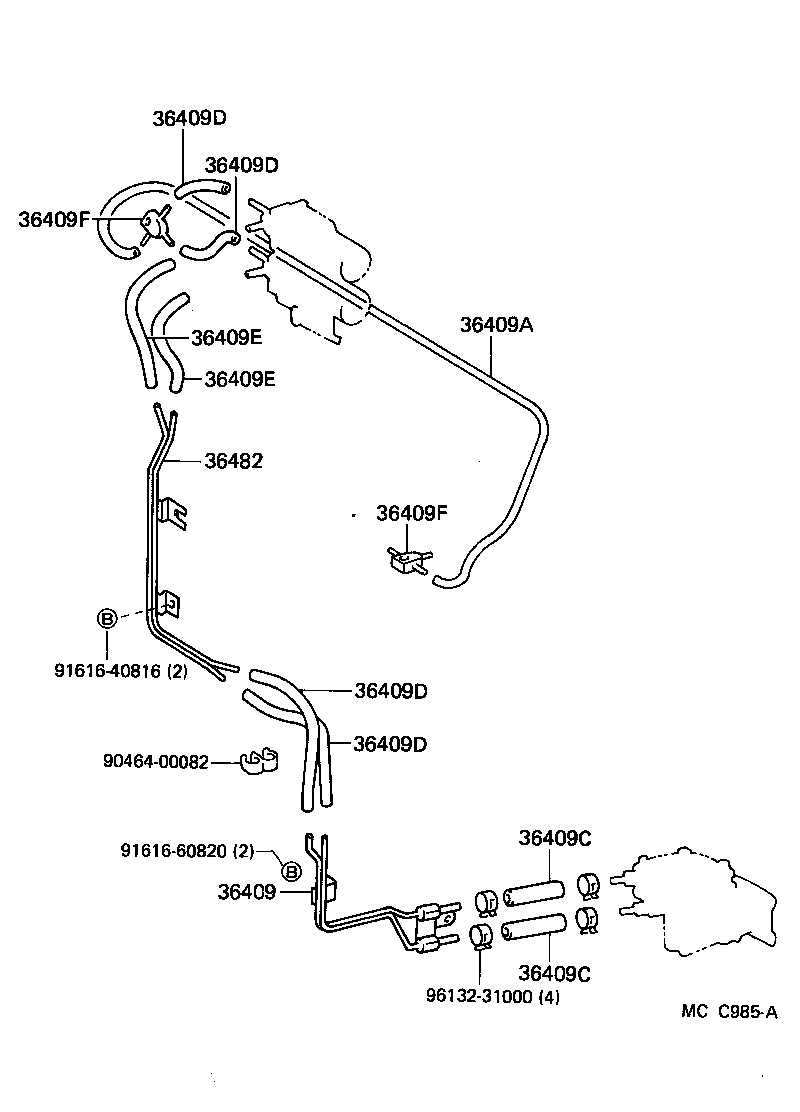

Click highlighted areas on diagram

diagram 36409 36409A 36409C 36409C 36409D 36409D 36409D 36409D 36409E 36409E 36409F 36409F 36482 9046400082 9161640816 9161660820 9613231000
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60040

FJ62,HJ6#

 1
36409A - HOSE (FOR VACUUM TUBE)
90445-08219

HJ61

 1
90999-92004

HJ61

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09200

BJ60,FJ62,HJ6#..MTM

L=200

 2
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09200

BJ60,FJ62,HJ6#..MTM

L=200

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

BJ60,FJ62,HJ6#

*H,L=300

 2
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

BJ60,FJ62,HJ6#

*H,L=300

 2
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

BJ60,FJ62,HJ6#

*H,L=300

 2
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

BJ60,FJ62,HJ6#

*H,L=300

 2
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

FJ62,HJ6#

*H,L=300

 2
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ60,FJ62,HJ6#

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ60,FJ62,HJ6#

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60100

FJ62,HJ6#

 1
Common parts
90464-00082
91616-40816
91616-60820
96132-31000
