HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )5F

Click highlighted areas on diagram

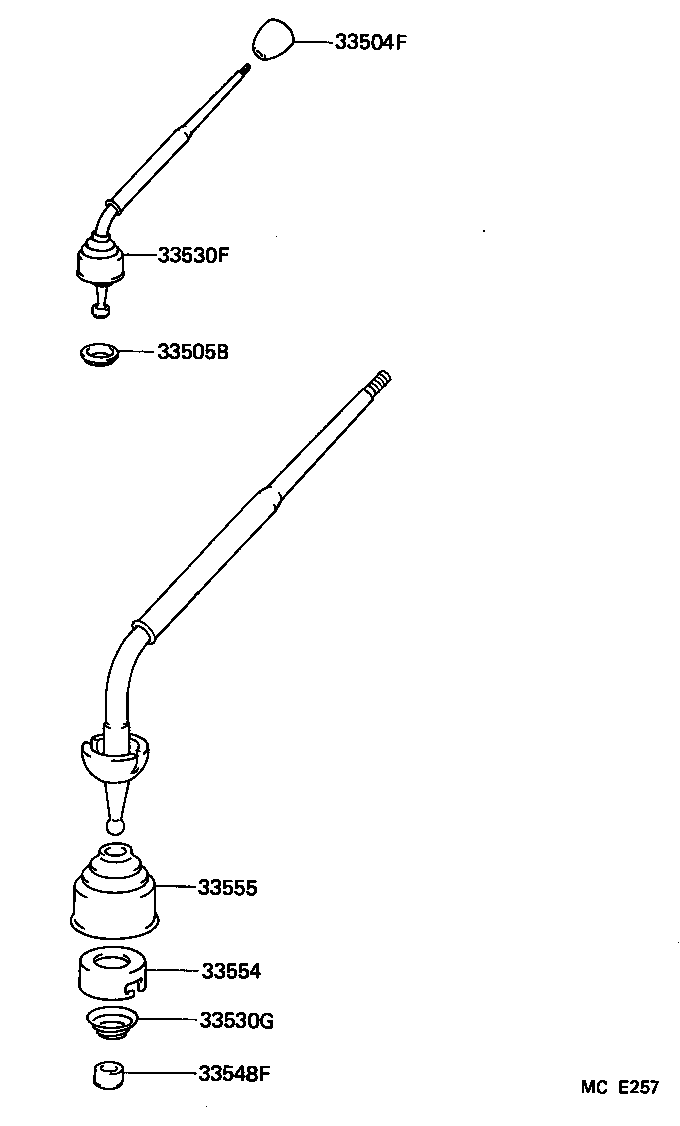

diagram 33504F 33505B 33530F 33530G 33548F 33554 33555
Part # Description Qty Price
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-60011

BJ60,FJ62,HJ6#..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60150

FJ62,HJ6#..RHD..5F

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-29001

BJ60,FJ62,HJ6#..MTM

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-60020

BJ60,FJ62,HJ6#..5F

 1
33554 - CAP, SHIFT LEVER
33554-60021

BJ60,FJ62,HJ6#..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-55011

BJ60,FJ62,HJ6#..MTM

 1
