HJ61RG-MNZXQ (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
12HT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )HJ6#..MTM

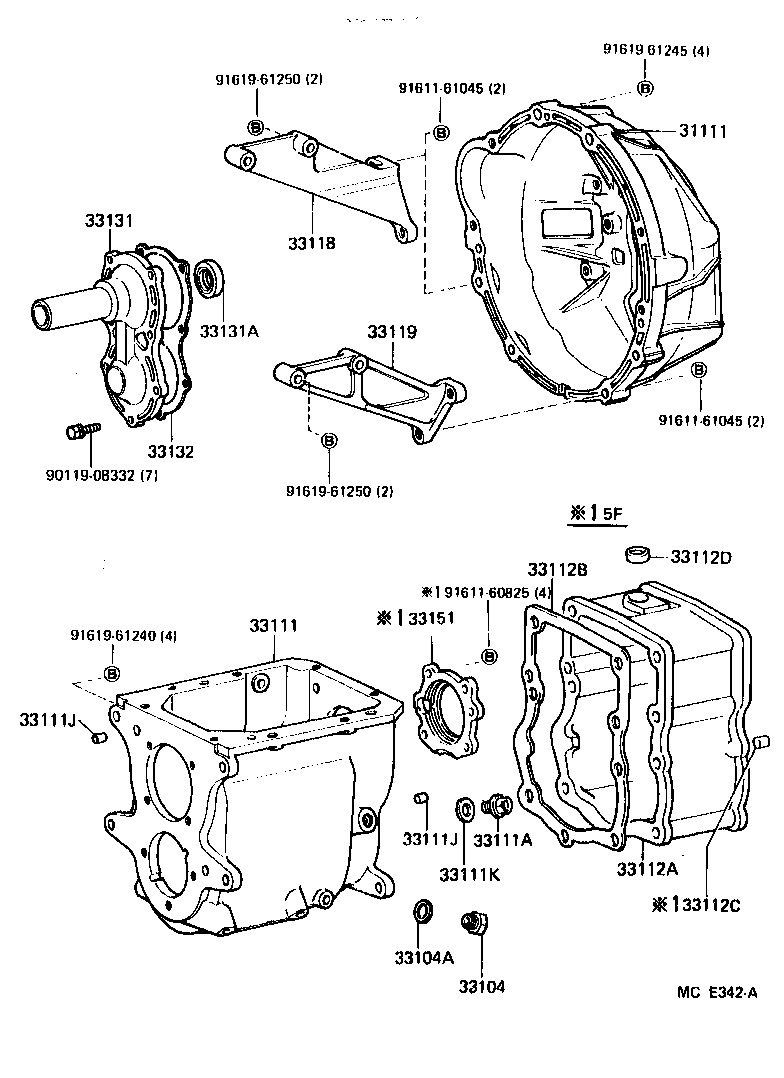

Click highlighted areas on diagram
H41,H55F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-60170 |
HJ60..VX;HJ6#..5F..LUB..ARL |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-60080 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BJ60,FJ62,HJ6#..5F L=14,OD=10 |
1 | ||
| 90250-12146 |
BJ60,FJ62,HJ6#..MTM L=17,OD=12 |
2 | ||
| 90250-12216 |
BJ60,FJ62,HJ6#..MTM L=14,OD=12 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BJ60,FJ62,HJ6#..5F L=14,OD=10 |
1 | ||
| 90250-12146 |
BJ60,FJ62,HJ6#..MTM L=17,OD=12 |
2 | ||
| 90250-12216 |
BJ60,FJ62,HJ6#..MTM L=14,OD=12 |
1 | ||
| 33111K - GASKET(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33112A - ADAPTER, TRANSFER | ||||
| 36117-60021 |
BJ60,HJ6#..5F;FJ62..5F..(ARL,GEN) |
1 | ||
| 33112B - GASKET, TRANSFER ADAPTER | ||||
| 33142-60020 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12216 |
BJ60,FJ62,HJ6#..MTM |
2 | ||
| 33112D - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90312-17001 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-60010 |
HJ6#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-60010 |
HJ6#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-60040 |
FJ62,HJ6#..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32013 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-60020 |
BJ60,HJ61..5F;FJ62,HJ60..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-60010 |
BJ60,FJ62,HJ6#..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60825 | ||||
| 91611-61045 | ||||
| 91619-61240 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
