HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

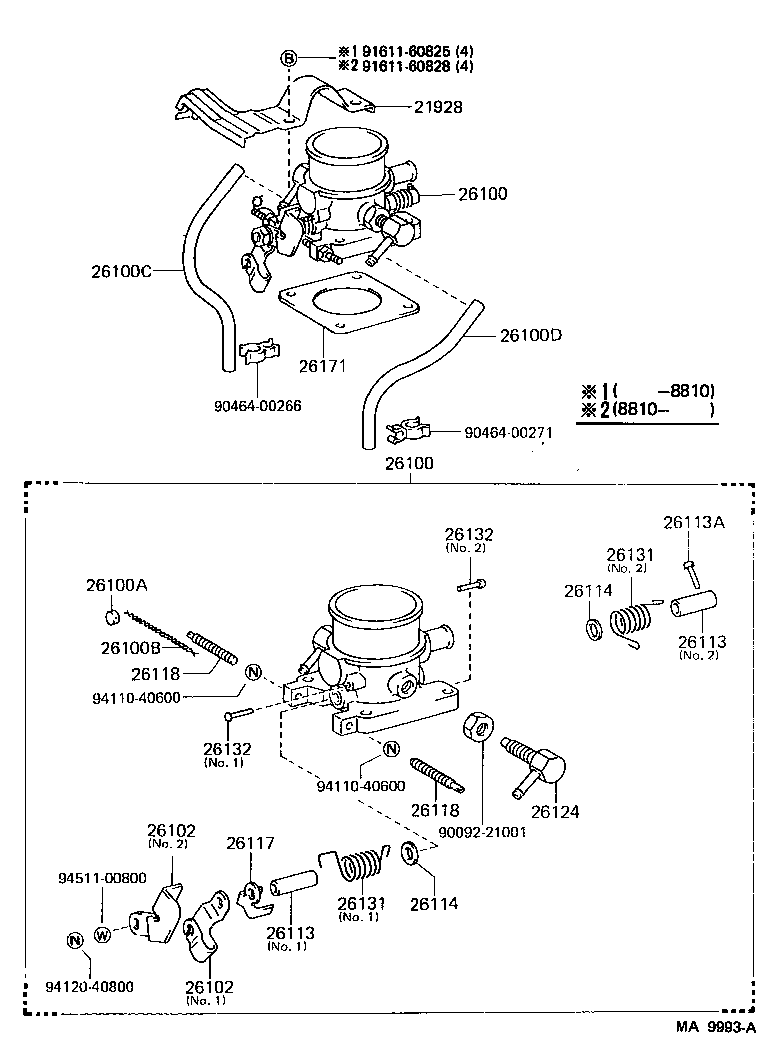

(8708- )2H

Click highlighted areas on diagram

diagram 21928 26100 26100 26100A 26100B 26100C 26100D 26102 26102 26113 26113 26113A 26114 26114 26117 26118 26118 26124 26131 26131 26132 26132 26171 9009221001 9046400266 9046400271 9161160825 9161160828 9411040600 9411040600 9412040800 9451100800
Part # Description Qty Price
26100 - VENTURI ASSY
26100-68040

12HT..HJ61

 1
26100 - VENTURI ASSY
26100-68040

12HT..HJ61

 1
26171 - GASKET, VENTURI
26171-56050

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

VENTURI SIDE

 1
Common parts
90092-21001
90464-00266
90464-00271
91611-60825
91611-60828
94110-40600
94120-40800
94511-00800

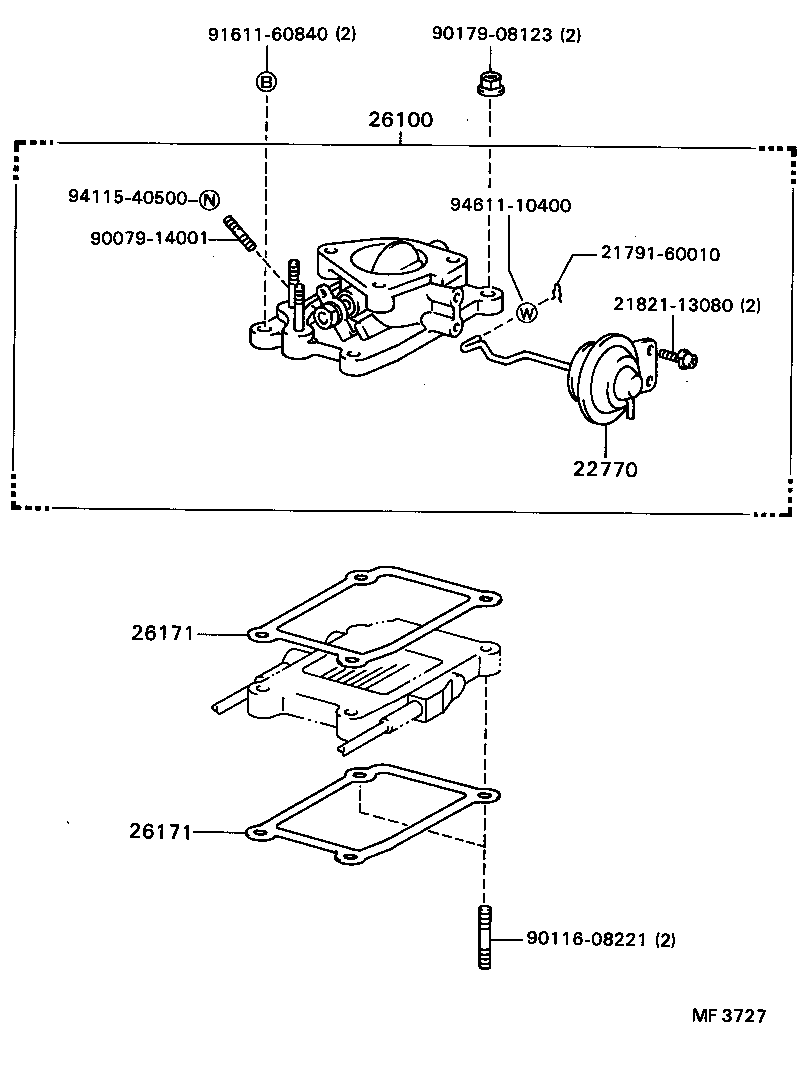

(8708- )12HT

Click highlighted areas on diagram

diagram 2179160010 2182113080 22770 26100 26171 26171 9007914001 9011608221 9017908123 9161160840 9411540500 9461110400
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-68041

12HT..HJ61

 1
26100 - VENTURI ASSY
26100-68040

12HT..HJ61

 1
26171 - GASKET, VENTURI
26171-56050

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

VENTURI SIDE

 1
26171 - GASKET, VENTURI
26171-56050

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

MANIFOLD SIDE

 1
26171-56040

12HT..HJ61

VENTURI SIDE

 1
Common parts
21791-60010
21821-13080
90079-14001
90116-08221
90179-08123
91611-60840
94115-40500
94611-10400
