HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22812 22812A 22812A 23701 23702 23703 23704 23705 23706 23741 23741 23742 23742 23841A 23842C 9020110018 9161160618 9161161028 9165160816 9165160816 9166140616 9211260625 9411040600 9411041000
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-68200

12HT..HJ61..HRF..GX

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23906-68010

12HT..HJ61

HOSE L=195

 1
23801-68030

12HT,2H..HJ6#

PIPE L=336

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23906-68010

12HT..HJ61

HOSE L=195

 1
23801-68030

12HT,2H..HJ6#

PIPE L=336

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68020

12HT..HJ61

 1
22812 - RETAINER, INJECTION PUMP
22812-68020

12HT..HJ61

 1
22812A - RING, O
90301-99013

12HT,2H..HJ6#

ID=129.4,CASE SIDE

 1
90301-74001

12HT..HJ61

ID=74.5,PUMP SIDE

 1
22812A - RING, O
90301-99013

12HT,2H..HJ6#

ID=129.4,CASE SIDE

 1
90301-74001

12HT..HJ61

ID=74.5,PUMP SIDE

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-68020

12HT..HJ61

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-68020

12HT..HJ61

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-68020

12HT..HJ61

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-68020

12HT..HJ61

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-68020

12HT..HJ61

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-68020

12HT..HJ61

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-48010

12HT..HJ61

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-48010

12HT..HJ61

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23741-64020

12HT..HJ61

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23741-64020

12HT..HJ61

 2
Common parts
90201-10018
91611-60618
91611-61028
91651-60816
91661-40616
92112-60625
94110-40600
94110-41000

(8708- )12HT

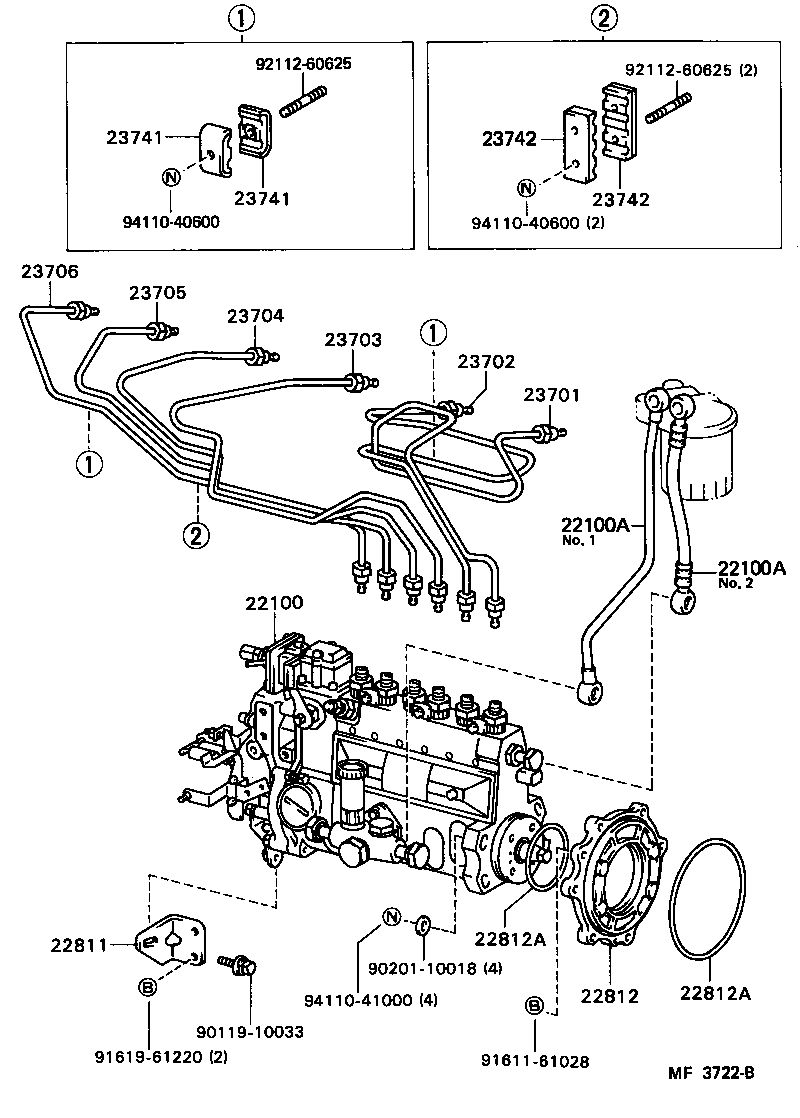

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22812 22812A 22812A 23701 23702 23703 23704 23705 23706 23741 23741 23742 23742 9011910033 9020110018 9161161028 9161961220 9211260625 9211260625 9411040600 9411040600 9411041000
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-68200

12HT..HJ61..HRF..GX

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23906-68010

12HT..HJ61

HOSE L=195

 1
23801-68030

12HT,2H..HJ6#

PIPE L=336

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23906-68010

12HT..HJ61

HOSE L=195

 1
23801-68030

12HT,2H..HJ6#

PIPE L=336

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68020

12HT..HJ61

 1
22812 - RETAINER, INJECTION PUMP
22812-68020

12HT..HJ61

 1
22812A - RING, O
90301-99013

12HT,2H..HJ6#

ID=129.4,CASE SIDE

 1
90301-74001

12HT..HJ61

ID=74.5,PUMP SIDE

 1
22812A - RING, O
90301-99013

12HT,2H..HJ6#

ID=129.4,CASE SIDE

 1
90301-74001

12HT..HJ61

ID=74.5,PUMP SIDE

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-68020

12HT..HJ61

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-68020

12HT..HJ61

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-68020

12HT..HJ61

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-68020

12HT..HJ61

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-68020

12HT..HJ61

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-68020

12HT..HJ61

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-48010

12HT..HJ61

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-48010

12HT..HJ61

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23741-64020

12HT..HJ61

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23741-64020

12HT..HJ61

 2
Common parts
90119-10033
90201-10018
91611-61028
91619-61220
92112-60625
94110-40600
94110-41000
